Overview

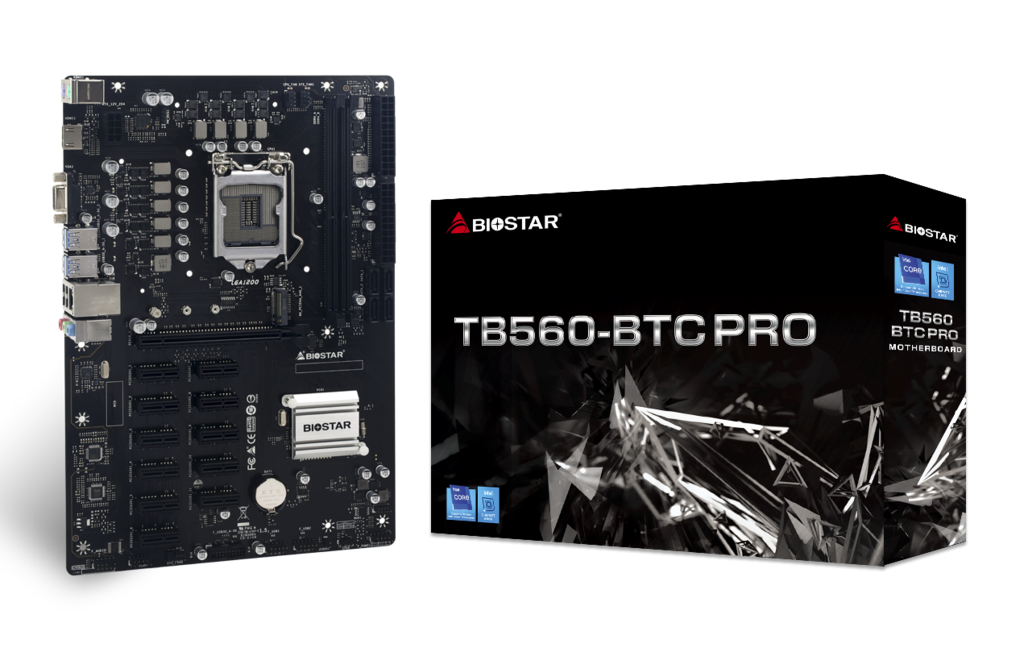

Routing twelve discrete PCI Express lanes from an Intel B560 PCH across a compact 304.8 mm by 210 mm footprint dictates the hardware layout of the Biostar TB560-BTC PRO. Tailored specifically for multi-GPU compute rigs, the board integrates a solitary PCIe 4.0 x16 slot alongside eleven PCIe 3.0 x1 connectors, supplemented by dual 24-pin ATX power headers to synchronize two external power supply units without requiring secondary relay cables. This extreme slot density requires external riser assemblies, as the tight physical spacing prevents direct mounting of multi-slot expansion cards.

Underneath the minimalist circuit design sits an unshielded voltage regulator module with bare MOSFETs, demanding deliberate consideration during component selection. Pairing the LGA 1200 socket with high-TDP 10th or 11th Gen Core processors introduces rapid thermal accumulation across the naked power stages unless an external cooling fan directs forced airflow across the VRM area. The chipset itself relies on a compact aluminum heatsink, sufficient for passive dissipation within well-ventilated open-frame mining racks. Storage and memory configurations remain strictly utilitarian, restricted to dual DDR4 DIMM slots supporting up to 64GB at 2933 MHz and a single M.2 slot operating alongside four SATA III 6Gb/s ports.

System stability hinges on firmware configuration and platform resource management. Out-of-the-box operation with a full complement of twelve graphics cards requires enabling Above 4G Decoding and tuning PCIe link generations to Gen1 or Gen2 within the AMI BIOS to circumvent memory-mapped I/O (MMIO) allocation limits. Biostar incorporates Super LAN Surge Protection across the Realtek RTL8111E Gigabit Ethernet interface to guard against electrostatic discharge and grid transients in continuous 24/7 industrial deployments. While peripheral connectivity is pared down to essential display and USB interfaces, the board delivers focused electrical execution for dedicated multi-GPU arrays.

Technical Specifications

Brand Biostar
Model TB560-BTC PRO
Cpu Socket LGA 1200
Chipset Intel B560
Supported Processors 10th and 11th Gen Intel Core i9 / i7 / i5 / i3, Pentium, Celeron
Form Factor Slim ATX (304.8 mm x 210 mm)
Expansion Slots 1 x PCIe 4.0 x16, 11 x PCIe 3.0 x1
Memory Slots 2 x DDR4 DIMM
Memory Support Dual-Channel DDR4 up to 2933 MHz, maximum 64 GB
Storage Interfaces 1 x M.2 Key M (PCIe 3.0 x4 & SATA 6Gb/s), 4 x SATA III (6Gb/s)
Power Connectors 2 x 24-pin ATX, 1 x 8-pin ATX 12V
Ethernet Realtek RTL8111E Gigabit Ethernet with Super LAN Surge Protection
Audio Codec Realtek ALC897 7.1-Channel HD Audio
Rear Io Ports 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x HDMI 1.4, 1 x VGA, 1 x PS/2, 1 x RJ-45, 3 x Audio Jacks
Internal Headers 1 x USB 3.2 Gen1 Header, 2 x USB 2.0 Headers, 1 x CPU Fan Header, 2 x System Fan Headers
Vrm Cooling Bare unheatsinked MOSFETs
Bios AMI UEFI BIOS with dedicated Mining Mode and Above 4G Decoding
✔ Pros
  • Native connectivity for up to 12 GPUs through 1 PCIe 4.0 x16 and 11 PCIe 3.0 x1 slots
  • Dual 24-pin ATX power connectors facilitate native multi-PSU synchronization without adapters
  • Integrated Super LAN Surge Protection safeguards network hardware against electrostatic discharge
  • BIOS firmware incorporates pre-configured Mining Mode and Above 4G Decoding allocation
✖ Cons
  • Unshielded VRM MOSFETs lack heatsinks, demanding low-TDP CPUs and forced chassis airflow
  • Dense PCIe slot spacing mandates external PCIe riser cables for all secondary graphics cards
  • Stripped-back rear I/O and dual DIMM limitation render it impractical for general desktop use
📋
