ASUS Pro Q870M-C V2-CSM

ASUS Pro Q870M-C V2-CSM
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An ideal micro-ATX enterprise foundation for IT managers seeking guaranteed supply longevity, robust 256 GB DDR5 memory ceilings, and integrated remote fleet management.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.4 / 5.0
Score Rationale
Enterprise-tier lifecycle validation under the Corporate Stable Model program serves as the primary anchor for this evaluation, securing outstanding marks in Reliability (4.6). Engineering & Architecture (4.4) benefits from the modern Intel Q870 and LGA1851 platform, offering PCIe 5.0 x16 bandwidth and dense 256 GB DDR5 memory support across four DIMM slots. Build quality (4.3) is reinforced by physical SafeSlot retention on primary expansion lanes. Thermal management (4.1) is consistent with enterprise micro-ATX standards that depend on chassis ambient cross-flow over surface components. Buyer value (4.4) remains compelling for business fleets seeking extensive I/O flexibility and remote management via ASUS Control Center Express without proprietary chassis lock-in.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

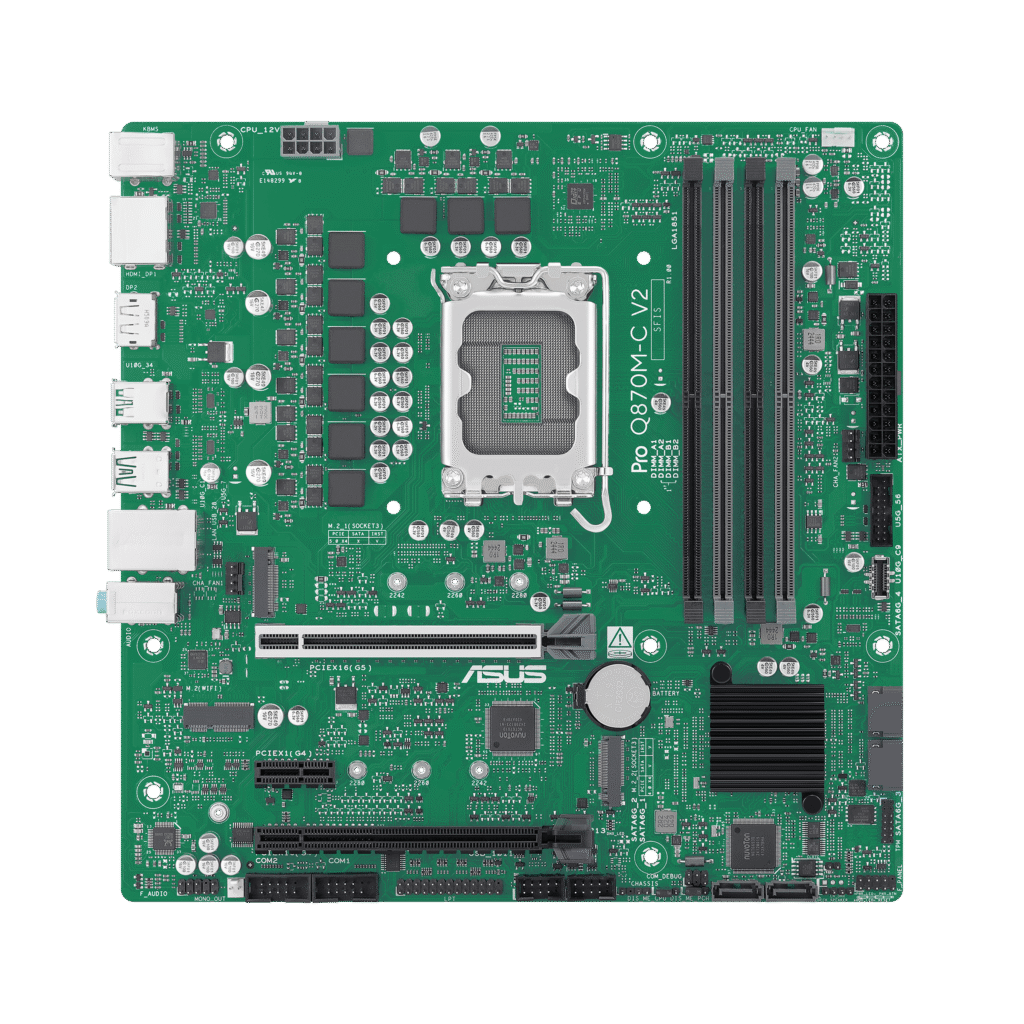

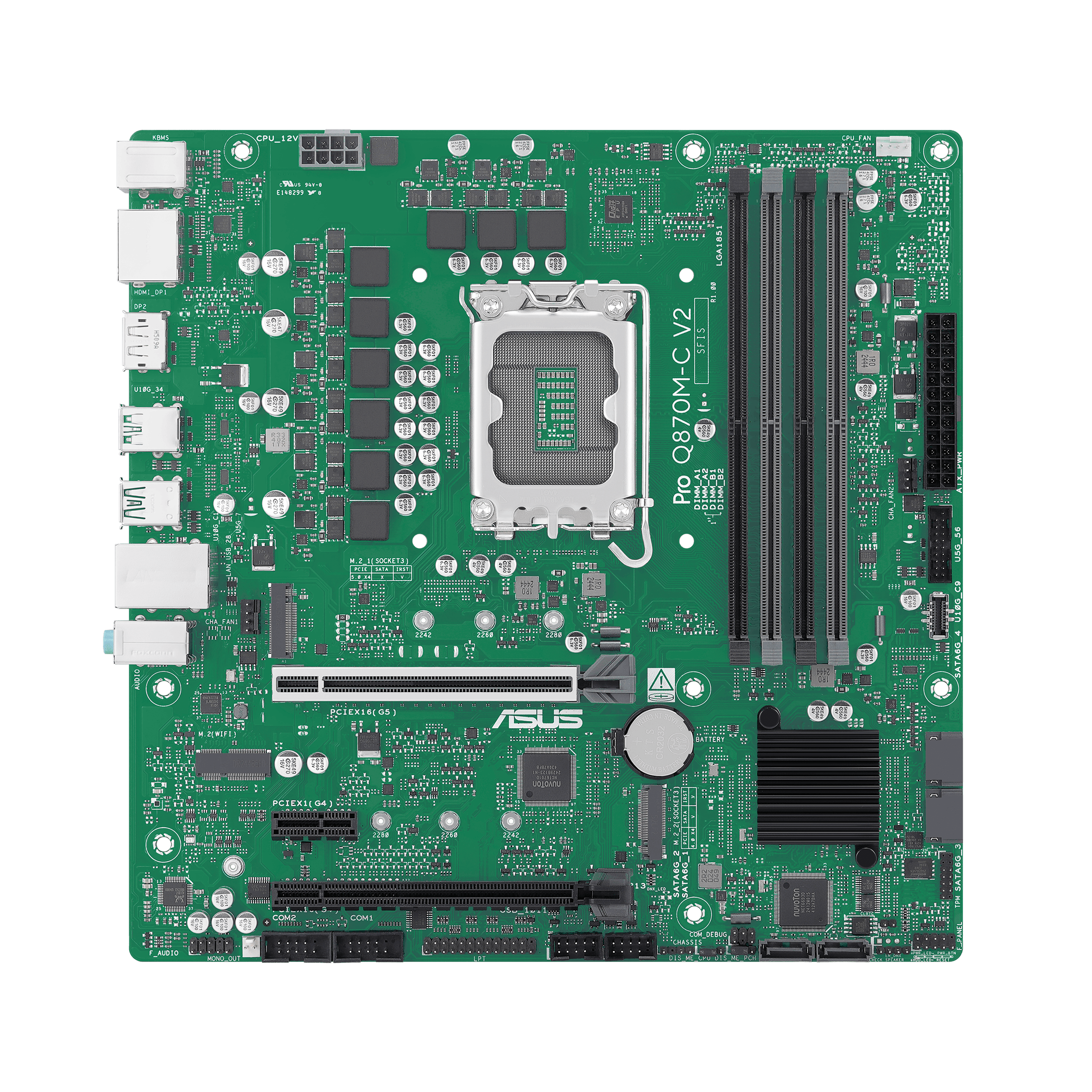

Architected around Intel’s commercial Q870 chipset on the LGA1851 socket, this micro-ATX platform prioritizes high-throughput data pipelines and enterprise-grade manageability. A reinforced PCIe 5.0 x16 SafeSlot anchors primary expansion bandwidth alongside secondary PCIe 4.0 lanes, while four DDR5 DIMM traces handle memory capacities reaching 256 GB. Peripheral connectivity is routed through 10 Gbps USB Type-A and Type-C interfaces, complemented by triple digital display outputs comprising dual DisplayPort and HDMI 2.1 connectors for multi-monitor commercial workstations.

Physical deployment within standard micro-ATX enclosures leverages conventional mounting footprints, integrated retention mechanisms, and reinforced structural solder points across high-stress expansion zones. Enterprise deployment is anchored by ASUS Corporate Stable Model (CSM) lifecycle practices and centralized hardware monitoring through ASUS Control Center Express. The solid-state layout relies on directed enclosure airflow across surface-mount components, passive heatsinking, and modular storage lanes featuring multiple M.2 slots and SATA 6Gb/s headers.

Technical Specifications

Brand ASUS
Model Pro Q870M-C V2-CSM
Chipset Intel Q870
CPU Socket LGA1851
Form Factor Micro-ATX
Memory Support DDR5
Memory Slots 4x DIMM
Max Memory Capacity 256 GB
Primary Expansion 1x PCIe 5.0 x16 SafeSlot
Secondary Expansion PCIe 4.0 expansion slots
Storage Interfaces Multiple M.2 slots, SATA 6Gb/s
Display Outputs 2x DisplayPort, 1x HDMI 2.1
USB Connectivity 10 Gbps USB Type-A and Type-C
IT Management ASUS Control Center Express, Corporate Stable Model (CSM)
✔ Pros
  • Corporate Stable Model (CSM) framework guarantees extended supply lifecycles and revision consistency for IT fleets
  • High-density DDR5 memory support accommodating up to 256 GB across four DIMM slots
  • Primary PCIe 5.0 x16 SafeSlot provides high-bandwidth expansion with structural reinforcement
  • Comprehensive video output suite featuring dual DisplayPort and HDMI 2.1 interfaces
✖ Cons
  • Micro-ATX footprint limits high-lane auxiliary expansion compared to full ATX alternatives
  • Dense component layout requires structured chassis airflow for optimal ambient component cooling
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Newegg
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Motherboards

Compare Other Models →

At a Glance

How reliable is the ASUS Pro Q870M-C V2-CSM according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

An ideal micro-ATX enterprise foundation for IT managers seeking guaranteed supply longevity, robust 256 GB DDR5 memory ceilings, and integrated remote fleet management.

What are the known quirks or drawbacks of the ASUS Pro Q870M-C V2-CSM?

Our reliability audit identified the following documented caveats:

  • Micro-ATX footprint limits high-lane auxiliary expansion compared to full ATX alternatives
  • Dense component layout requires structured chassis airflow for optimal ambient component cooling
What are the key engineering highlights of the ASUS Pro Q870M-C V2-CSM?

The top strengths recorded in our evaluation include:

  • Corporate Stable Model (CSM) framework guarantees extended supply lifecycles and revision consistency for IT fleets
  • High-density DDR5 memory support accommodating up to 256 GB across four DIMM slots
  • Primary PCIe 5.0 x16 SafeSlot provides high-bandwidth expansion with structural reinforcement
  • Comprehensive video output suite featuring dual DisplayPort and HDMI 2.1 interfaces
