Overview

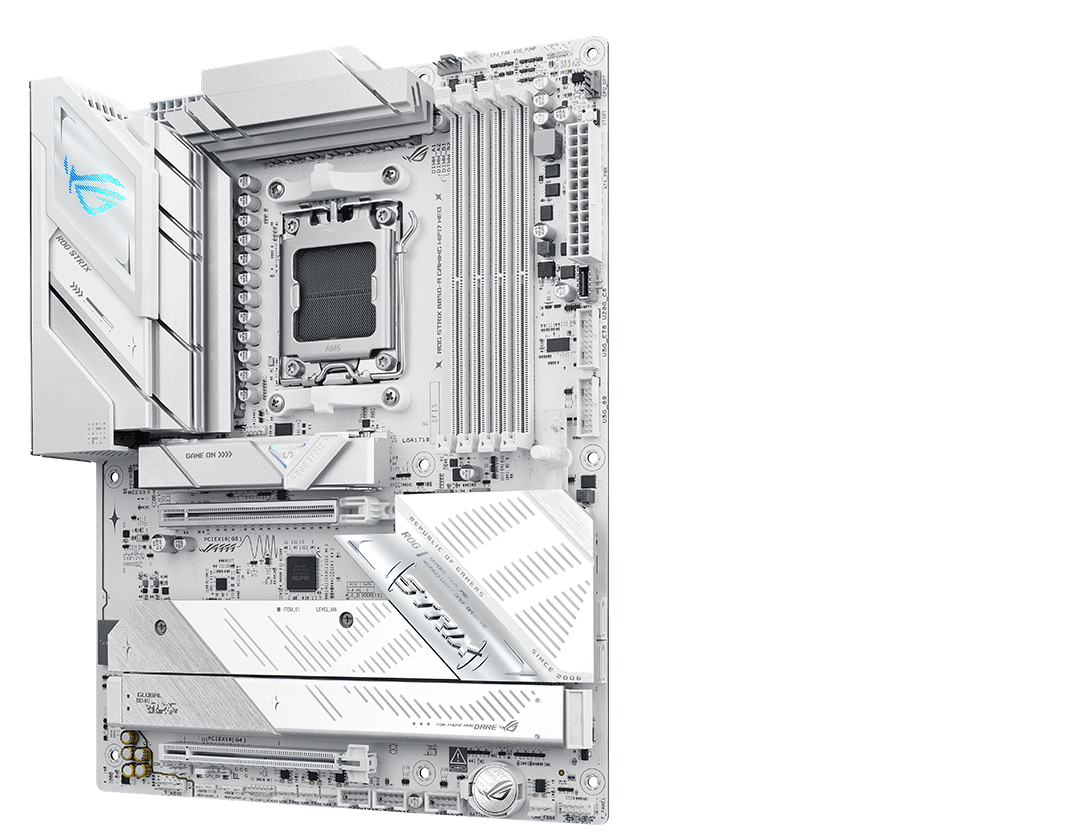

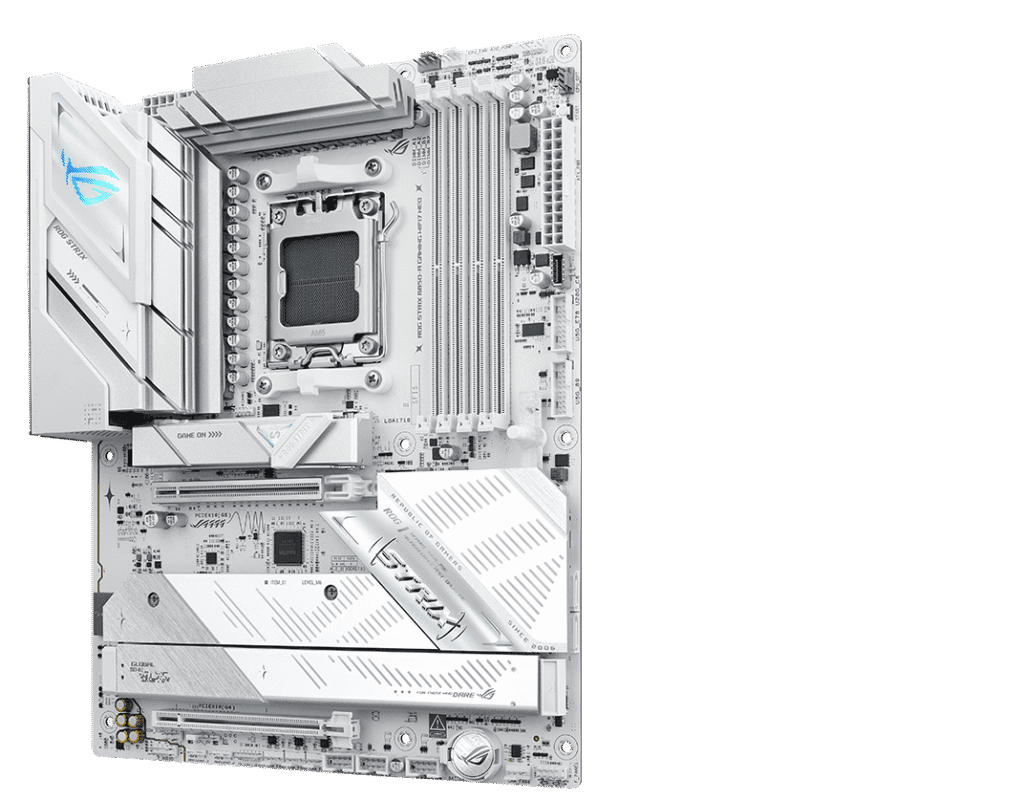

The ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo is an enthusiast-grade ATX motherboard designed for Socket AM5, accommodating AMD Ryzen 9000, 8000, and 7000 series desktop processors on the AMD B850 chipset. Built upon a multi-layer server-grade PCB, the board features a capable 14+2+2 power delivery architecture with 80A power stages fed by dual 8-pin ProCool connectors. Structural integrity is prioritized through an integrated pre-mounted I/O shield, a structurally reinforced PCIe 5.0 x16 SafeSlot, and extensive aluminum heatsinks shielding both the VRM array and the four onboard M.2 storage slots. Builders benefit significantly from ASUS’s refined EZ DIY feature set, which includes PCIe Slot Q-Release, tool-free M.2 Q-Latch, M.2 Q-Release, and quick-connect Q-Antenna hardware that eliminates the friction of traditional installations.
Passive thermal management is driven by high-surface-area heatsinks fitted with premium thermal pads across the power delivery circuitry and storage interfaces, ensuring sustained performance under compute-intensive workloads while full acoustic and thermal profile measurements remain pending retail physical teardown. Firmware stability is backed by a 64MB UEFI BIOS equipped with Q-Dashboard visual management, Q-LED real-time diagnostic indicators, and a rear-mounted BIOS FlashBack button to ensure seamless recovery without needing a CPU or RAM installed. Coupled with cutting-edge connectivity spanning Wi-Fi 7, Realtek 5Gb Ethernet, front-panel USB 20Gbps Type-C, and an isolated SupremeFX ALC4080 audio subsystem with a Savitech SV3H712 amplifier, the board provides a stable, highly communicative computing foundation for high-refresh gaming and content creation rigs.
Technical Specifications
| Form Factor | ATX |
| Dimensions Mm | 305 x 244 |
| Cpu Socket | Socket AM5 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset | AMD B850 |
| Power Stages | 14+2+2 (80A per stage) |
| Power Connectors | Dual 8-pin ProCool |
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Max Memory Capacity Gb | 256 |
| Memory Speed Support | DDR5 9000+ MT/s (OC) |
| Primary Pcie Slot | 1 x PCIe 5.0 x16 SafeSlot (CPU) |
| Secondary Pcie Slot | 1 x PCIe 4.0 x16 (operates at x4, Chipset) |
| M2 Storage Slots | 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) |
| Wireless Networking | Wi-Fi 7 (802.11be) + Bluetooth 5.4 |
| Wired Networking | Realtek 5Gb Ethernet |
| Audio Codec | ROG SupremeFX ALC4080 7.1 HD Audio |
| Audio Amplifier | Savitech SV3H712 AMP |
| Audio Snr | 120 dB output / 110 dB input |
| Front Panel Usb | 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 3 x USB 2.0 |
| Cooling Headers | 1 x AIO Pump, 4 x 4-pin PWM Chassis Fan |
| Bios Rom Size | 64MB |
| Diagnostic Features | PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack, Clear CMOS |
| Warranty Years | 3 |
- Resilient 14+2+2 power stage delivery rated at 80A with high-conductivity VRM heatsinks
- Comprehensive high-speed connectivity including PCIe 5.0 graphics and storage, Wi-Fi 7, and 5Gb Ethernet
- Class-leading EZ DIY builder conveniences including PCIe Slot Q-Release, tool-free M.2 Q-Release, and Q-Antenna
- High-fidelity SupremeFX ALC4080 audio implementation with dedicated Savitech SV3H712 amplifier
- Secondary full-length expansion slot is restricted to PCIe 4.0 x4 bandwidth via the chipset
- Lacks a secondary physical BIOS chip for dual hardware-level redundancy
