Side-by-Side Comparison
Biostar TB560-BTC PRO vs ASUS Pro Q870M-C V2-CSM
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS

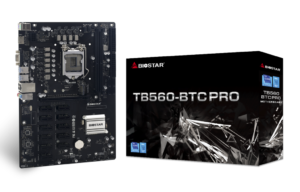

Biostar TB560-BTC PRO
Composite Score:
3.6
/ 5.0
A purpose-built LGA 1200 motherboard engineered for 12-GPU PCIe lane multiplexing and dual-PSU synchronization, constrained by bare unheatsinked VRMs and single-purpose layout constraints.
★ Recommended Winner
● HIGHLY RATED
ASUS Pro Q870M-C V2-CSM
Composite Score:
4.4
/ 5.0
Commercial LGA1851 micro-ATX motherboard delivering PCIe 5.0 bandwidth, 256 GB DDR5 density, and enterprise CSM lifecycle stability.
⚖️
Mizex Comparative Audit Verdict
The ASUS Pro Q870M-C V2-CSM achieves the higher Mizex Composite Score (4.4 vs 3.6), leading across 5 of 5 engineering pillars. With an advantage in Engineering & Architecture, Build Quality & Materials, Thermal, Power & Acoustics, Real-World Reliability, Buyer Value & Upgrades, it represents the stronger technical recommendation.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Biostar TB560-BTC PRO
ASUS Pro Q870M-C V2-CSM
Engineering & Architecture
(30%)
Winner: ASUS Pro Q870M-C V2-CSM (+0.8)
3.6
4.4
Build Quality & Materials
(20%)
Winner: ASUS Pro Q870M-C V2-CSM (+0.8)
3.5
4.3
Thermal, Power & Acoustics
(20%)
Winner: ASUS Pro Q870M-C V2-CSM (+0.7)
3.4
4.1
Real-World Reliability
(20%)
Winner: ASUS Pro Q870M-C V2-CSM (+0.8)
3.8
4.6
Buyer Value & Upgrades
(10%)
Winner: ASUS Pro Q870M-C V2-CSM (+0.7)
3.7
4.4
Biostar TB560-BTC PRO: Strengths & Caveats
✔ Advantages
- Native connectivity for up to 12 GPUs through 1 PCIe 4.0 x16 and 11 PCIe 3.0 x1 slots
- Dual 24-pin ATX power connectors facilitate native multi-PSU synchronization without adapters
- Integrated Super LAN Surge Protection safeguards network hardware against electrostatic discharge
- BIOS firmware incorporates pre-configured Mining Mode and Above 4G Decoding allocation
✖ Documented Caveats
- Unshielded VRM MOSFETs lack heatsinks, demanding low-TDP CPUs and forced chassis airflow
- Dense PCIe slot spacing mandates external PCIe riser cables for all secondary graphics cards
- Stripped-back rear I/O and dual DIMM limitation render it impractical for general desktop use
ASUS Pro Q870M-C V2-CSM: Strengths & Caveats
✔ Advantages
- Corporate Stable Model (CSM) framework guarantees extended supply lifecycles and revision consistency for IT fleets
- High-density DDR5 memory support accommodating up to 256 GB across four DIMM slots
- Primary PCIe 5.0 x16 SafeSlot provides high-bandwidth expansion with structural reinforcement
- Comprehensive video output suite featuring dual DisplayPort and HDMI 2.1 interfaces
✖ Documented Caveats
- Micro-ATX footprint limits high-lane auxiliary expansion compared to full ATX alternatives
- Dense component layout requires structured chassis airflow for optimal ambient component cooling
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Biostar TB560-BTC PRO | ASUS Pro Q870M-C V2-CSM |
|---|---|---|
| Brand DIFF | Biostar | ASUS |
| Model DIFF | TB560-BTC PRO | Pro Q870M-C V2-CSM |
| Cpu Socket DIFF | LGA 1200 | — |
| Chipset DIFF | Intel B560 | — |
| Supported Processors DIFF | 10th and 11th Gen Intel Core i9 / i7 / i5 / i3, Pentium, Celeron | — |
| Form Factor DIFF | Slim ATX (304.8 mm x 210 mm) | — |
| Expansion Slots DIFF | 1 x PCIe 4.0 x16, 11 x PCIe 3.0 x1 | — |
| Memory Slots DIFF | 2 x DDR4 DIMM | — |
| Memory Support DIFF | Dual-Channel DDR4 up to 2933 MHz, maximum 64 GB | — |
| Storage Interfaces DIFF | 1 x M.2 Key M (PCIe 3.0 x4 & SATA 6Gb/s), 4 x SATA III (6Gb/s) | — |
| Power Connectors DIFF | 2 x 24-pin ATX, 1 x 8-pin ATX 12V | — |
| Ethernet DIFF | Realtek RTL8111E Gigabit Ethernet with Super LAN Surge Protection | — |
| Audio Codec DIFF | Realtek ALC897 7.1-Channel HD Audio | — |
| Rear Io Ports DIFF | 4 x USB 3.2 Gen1, 2 x USB 2.0, 1 x HDMI 1.4, 1 x VGA, 1 x PS/2, 1 x RJ-45, 3 x Audio Jacks | — |
| Internal Headers DIFF | 1 x USB 3.2 Gen1 Header, 2 x USB 2.0 Headers, 1 x CPU Fan Header, 2 x System Fan Headers | — |
| Vrm Cooling DIFF | Bare unheatsinked MOSFETs | — |
| Bios DIFF | AMI UEFI BIOS with dedicated Mining Mode and Above 4G Decoding | — |
| Chipset DIFF | — | Intel Q870 |
| CPU Socket DIFF | — | LGA1851 |
| Form Factor DIFF | — | Micro-ATX |
| Memory Support DIFF | — | DDR5 |
| Memory Slots DIFF | — | 4x DIMM |
| Max Memory Capacity DIFF | — | 256 GB |
| Primary Expansion DIFF | — | 1x PCIe 5.0 x16 SafeSlot |
| Secondary Expansion DIFF | — | PCIe 4.0 expansion slots |
| Storage Interfaces DIFF | — | Multiple M.2 slots, SATA 6Gb/s |
| Display Outputs DIFF | — | 2x DisplayPort, 1x HDMI 2.1 |
| USB Connectivity DIFF | — | 10 Gbps USB Type-A and Type-C |
| IT Management DIFF | — | ASUS Control Center Express, Corporate Stable Model (CSM) |
