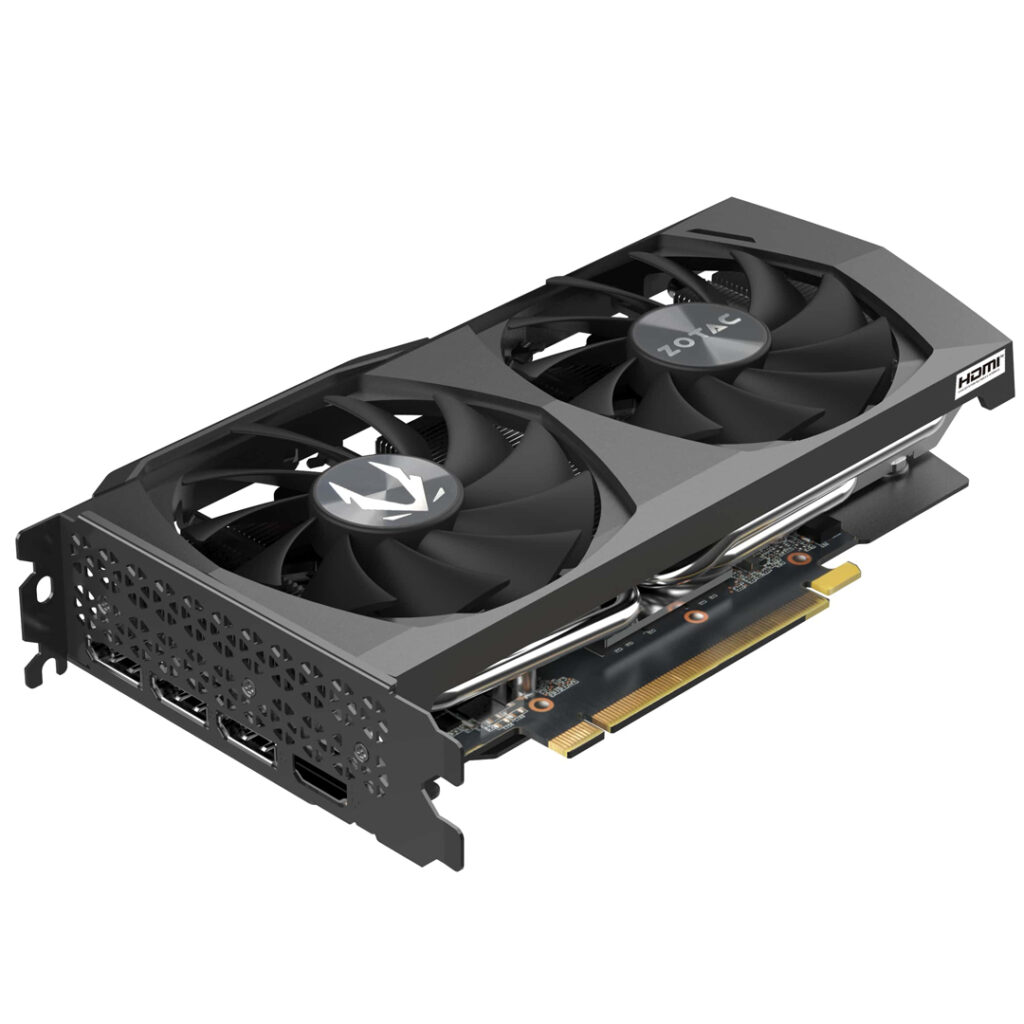

ZOTAC Gaming GeForce RTX 3060 Twin Edge 12GB Review: Compact Dual-Slot 12GB Architecture

● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An ideal option for small-form-factor builders requiring a dependable 12GB graphics card that fits standard dual-slot cases using conventional 8-pin power cabling.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.2 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.5 / 5.0
Score Rationale
Sub-nine-inch case clearance paired with an expansive 12GB GDDR6 memory buffer anchors the composite score of 4.4. Engineering & Architecture (4.4) reflects a disciplined implementation of NVIDIA Ampere GA106 silicon featuring 3,584 CUDA cores, a 1,777 MHz boost clock, and a stable 170-watt power target fed via a single standard 8-pin rail. Build quality (4.3) benefits from a rigid metal backplate that prevents board flex across the 224.1 mm span, despite lightweight polymer fan housing. Thermal management (4.2) utilizes the IceStorm 2.0 dual-fan cooler with FREEZE Fan Stop for silent zero-RPM idle operation, effectively dissipating heat within a compact dual-slot envelope. Reliability (4.6) is reinforced by a flawless operational history free of documented community quirks or recalls, coupled with standard 8-pin power delivery that avoids high-density connector thermal wear. Buyer value (4.5) remains strong due to the generous 12GB VRAM allocation on a 192-bit bus, providing extended longevity against modern memory constraints.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

Measuring 8.82 x 4.58 x 1.54 in (224.1 x 116.3 x 39.2 mm), the dual-slot chassis prioritizes small-form-factor compatibility, allowing seamless integration into space-constrained enclosures where extended multi-fan graphics cards cannot clear front intake fans or internal drive cages. At its architectural core, NVIDIA’s Ampere silicon provides 3,584 CUDA cores operating at a 1,777 MHz boost clock, paired with a 12GB GDDR6 memory buffer across a 192-bit bus operating at 15 Gbps. Power delivery runs through a standard PCI Express 4.0 x16 interface supplemented by a single 8-pin power connector within a 170-watt power target, requiring a 600-watt system power supply.

Structural rigidity across the circuit board is reinforced by a full metal backplate that resists sagging and torsional flex. Thermal dissipation is managed by the IceStorm 2.0 dual-fan cooling system, which integrates Active Fan Control for precise airflow management alongside FREEZE Fan Stop firmware logic that halts the fans during low-load desktop operation. Display output connectivity includes three DisplayPort 1.4a ports and one HDMI 2.1 connection supporting up to four simultaneous monitors with HDCP 2.3 and DirectX 12 Ultimate capabilities, offering a stable and straightforward installation experience for compact desktop builds.

Technical Specifications

Brand ZOTAC
Model Gaming GeForce RTX 3060 Twin Edge 12GB
Model Number ZT-A30600E-10M
GPU NVIDIA GeForce RTX 3060
Architecture NVIDIA Ampere
CUDA Cores 3584
Boost Clock 1777 MHz
Memory Capacity 12GB
Memory Type GDDR6
Memory Bus Width 192-bit
Memory Clock 15 Gbps
Interface PCI Express 4.0 x16
Cooling System IceStorm 2.0
Fan Control Features Active Fan Control, FREEZE Fan Stop
Slot Width Dual Slot
Dimensions 8.82 x 4.58 x 1.54 in (224.1 x 116.3 x 39.2 mm)
Power Consumption 170W
Recommended System Power 600W
Power Connectors 1 x 8-pin
Backplate Material Metal
Display Outputs 3 x DisplayPort 1.4a, 1 x HDMI 2.1
Multi Display Support 4
HDCP Compliance HDCP 2.3
API Support DirectX 12 Ultimate, OpenGL 4.6
SLI Support No
✔ Pros
  • Compact 8.82-inch (224.1 mm) dual-slot footprint ensures broad compatibility with space-constrained chassis
  • Generous 12GB GDDR6 VRAM buffer on a 192-bit bus provides long-term memory headroom
  • IceStorm 2.0 cooling incorporates FREEZE Fan Stop for silent zero-RPM idle operation
  • Full metal backplate enhances structural rigidity and PCB protection
✖ Cons
  • Multi-GPU SLI configurations are not supported
📋
