Overview
Operating strictly within a 70 W PCIe slot power envelope, GUNNIR’s implementation of the Intel Xe2 Battlemage architecture packs 16 GB of ECC-supported GDDR6 memory into an ultra-compact single-slot profile. Built on TSMC’s N5 process node, the Arc Pro B50 silicon integrates 16 Xe cores, 16 ray tracing units, and 128 XMX engines delivering 170 TOPS of INT8 AI compute without drawing auxiliary power cables from the system PSU. The memory subsystem routes across a 128-bit bus clocked at 14 Gbps to achieve 224 GB/s of bandwidth, balancing board trace simplicity against sustained data throughput for edge inference and multi-stream media pipelines.

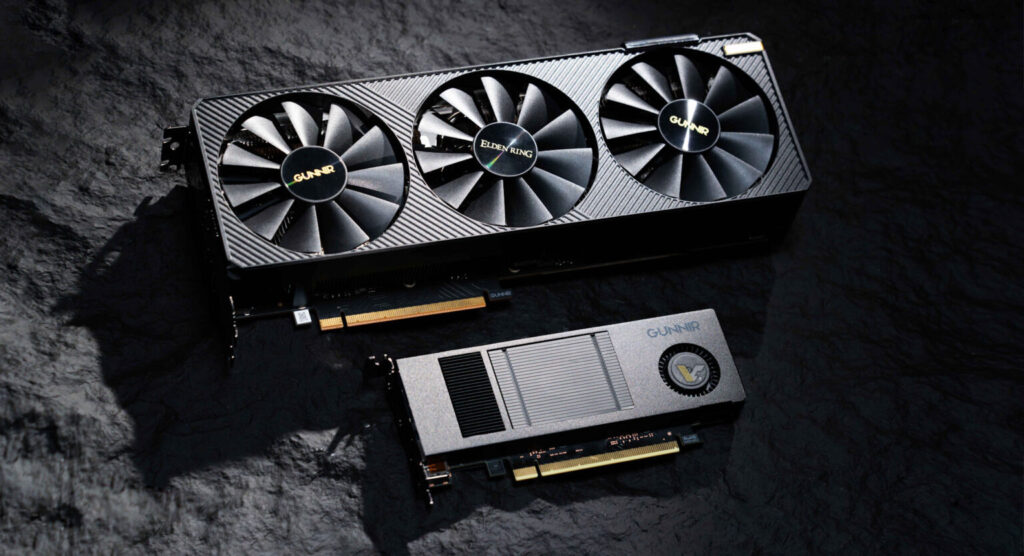

Measuring 6.57 x 2.72 x 0.72 in (167 x 69 x 18.4 mm), the physical card conforms to true low-profile single-slot mechanical tolerances, enabling drop-in integration into high-density 1U/2U rack servers, enterprise thin clients, and small-form-factor workstations. Thermal dissipation is handled by an enclosed single blower fan assembly exhausting warm air directly through the rear I/O bracket. While the compact blower impeller naturally operates at a higher acoustic pitch under sustained load than larger multi-slot axial fans, the card’s real-world power draw remains exceptionally modest at 50 W to 55 W under load, well below the 75 W PCIe slot limit and preventing thermal saturation inside cramped enclosures.
Display connectivity provides two HDMI 2.1 ports alongside a single DisplayPort 2.1 interface capable of driving up to 8K resolutions at 7680 x 4320. Media workflows benefit from comprehensive hardware acceleration across AV1, HEVC, H.264, and VP9 encode and decode blocks. Driver support targets DirectX 12 and OpenGL 4.6 workstation environments, where the 16 GB memory pool and hardware ECC capabilities shield long-running scientific simulations and local language model workloads against soft bit-flip errors, despite synthetic OpenCL performance trailing wider-bus consumer cards.
Technical Specifications
| Brand | GUNNIR |
| Model | Intel Arc Pro B50 LP 16GB GDDR6 |
| GPU Model | Intel Arc Pro B50 |
| Architecture | Intel Xe2 (Battlemage) |
| Process Node | TSMC N5 |
| Xe Cores | 16 |
| Ray Tracing Units | 16 |
| XMX Engines | 128 |
| Graphics Clock | 1700 MHz |
| AI Compute | 170 TOPS (INT8) |
| VRAM Capacity | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 128-bit |
| Memory Speed | 14 Gbps |
| Memory Bandwidth | 224 GB/s |
| Bus Interface | PCIe 5.0 x8 |
| Total Board Power (TBP) | 70 W |
| Real World Load Power | 50-55 W |
| Power Connectors | PCIe slot powered (no external cable required) |
| Form Factor | Low Profile, Single Slot |
| Dimensions | 6.57 x 2.72 x 0.72 in (167 x 69 x 18.4 mm) |
| Cooling Solution | Single Blower Fan |
| Display Outputs | 2x HDMI 2.1, 1x DisplayPort 2.1 |
| Maximum Resolution | 7680 x 4320 (8K) |
| Video Codec Support | AV1, H.265 (HEVC), H.264, VP9, VC-1, MPEG-2, MJPEG |
| ECC Memory Support | Supported |
| API Support | DirectX 12, OpenGL 4.6 |
- True low-profile single-slot form factor powered entirely via the PCIe slot without external cables
- High 16 GB GDDR6 capacity with hardware ECC support for continuous workstation and AI stability
- 128 dedicated XMX engines providing up to 170 TOPS of INT8 AI inference performance
- Modern display connectivity supporting dual HDMI 2.1 and DisplayPort 2.1 up to 8K resolution
- 128-bit memory bus restricts memory bandwidth to 224 GB/s for bandwidth-intensive tasks
- Synthetic OpenCL compute performance lags behind mainstream consumer desktop GPUs
Primary Sources & Audited Citations
Recommended Alternatives in Graphics Cards (GPUs)
At a Glance
How reliable is the GUNNIR Intel Arc Pro B50 LP 16GB GDDR6 Review: Slot-Powered Single-Slot AI Density according to Mizex audits?
An indispensable single-slot solution for small-form-factor AI inference and workstation virtualization where 16 GB of ECC memory and slot-only power draw take priority over raw gaming horsepower.
What are the known quirks or drawbacks of the GUNNIR Intel Arc Pro B50 LP 16GB GDDR6 Review: Slot-Powered Single-Slot AI Density?
Our reliability audit identified the following documented caveats:
- 128-bit memory bus restricts memory bandwidth to 224 GB/s for bandwidth-intensive tasks
- Synthetic OpenCL compute performance lags behind mainstream consumer desktop GPUs
What are the key engineering highlights of the GUNNIR Intel Arc Pro B50 LP 16GB GDDR6 Review: Slot-Powered Single-Slot AI Density?
The top strengths recorded in our evaluation include:
- True low-profile single-slot form factor powered entirely via the PCIe slot without external cables
- High 16 GB GDDR6 capacity with hardware ECC support for continuous workstation and AI stability
- 128 dedicated XMX engines providing up to 170 TOPS of INT8 AI inference performance
- Modern display connectivity supporting dual HDMI 2.1 and DisplayPort 2.1 up to 8K resolution
