GIGABYTE AORUS GeForce RTX 5060 Ti AI Box 16GB Review: Thunderbolt 5 Closes Performance Gap

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An ideal single-cable dock and graphics upgrade for ultrabooks and handhelds, though users with modern discrete mobile GPUs will see minimal performance benefit.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.6 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
Near-lossless Thunderbolt 5 throughput anchors this hardware evaluation, as Engineering & Architecture (4.6) overcomes longstanding external GPU bottlenecks with a slim 5% delta against desktop PCIe while integrating 100W power delivery and daisy-chaining. Real-World Reliability (4.5) benefits from a verified zero-defect record and mature Blackwell architecture alongside established connection handshakes. Thermal management (4.3) effectively dissipates the 180W board power via a dedicated WINDFORCE cooling module, while Build Quality (4.3) delivers a rigid 243 x 117 x 48 mm enclosure adaptable to both horizontal and vertical desk orientations. Buyer Value (4.2) remains strong for thin-and-light laptop owners needing an all-in-one docking station and GPU accelerator, though it offers diminished returns for systems already housing discrete 50-series silicon.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Thunderbolt 5 interface delivers high bandwidth with only a ~5% performance gap compared to desktop PCIe
  • Integrated 100W USB PD 3.0 provides single-cable notebook charging alongside dock functionality
  • Generous VRAM buffer with 16 GB GDDR7 on NVIDIA Blackwell architecture with DLSS 4 support
  • Versatile dual-orientation chassis with rich I/O including Gigabit Ethernet and four display outputs
✖ Cons
  • Offers negligible performance uplift for host laptops already equipped with modern dedicated mobile GPUs
  • Integrated non-upgradable GPU form factor limits future board replacement

Overview

External graphics enclosures historically suffered from severe interface bottlenecks, but pairing a desktop-class graphics processor with next-generation interconnect bandwidth transforms the ultraportable workstation experience. Built around NVIDIA Blackwell architecture and equipped with 16 GB of GDDR7 memory, this external graphics solution closes the traditional external GPU performance deficit down to approximately 5% compared to native desktop PCIe connections, achieving 14,669 points versus 15,441 in 3DMark Time Spy. Rather than serving merely as a gaming accelerator, the unit acts as a unified desktop dock that delivers up to 100W of power delivery via USB PD 3.0 alongside native Gigabit Ethernet and multiple USB 3.2 Gen 2 ports.

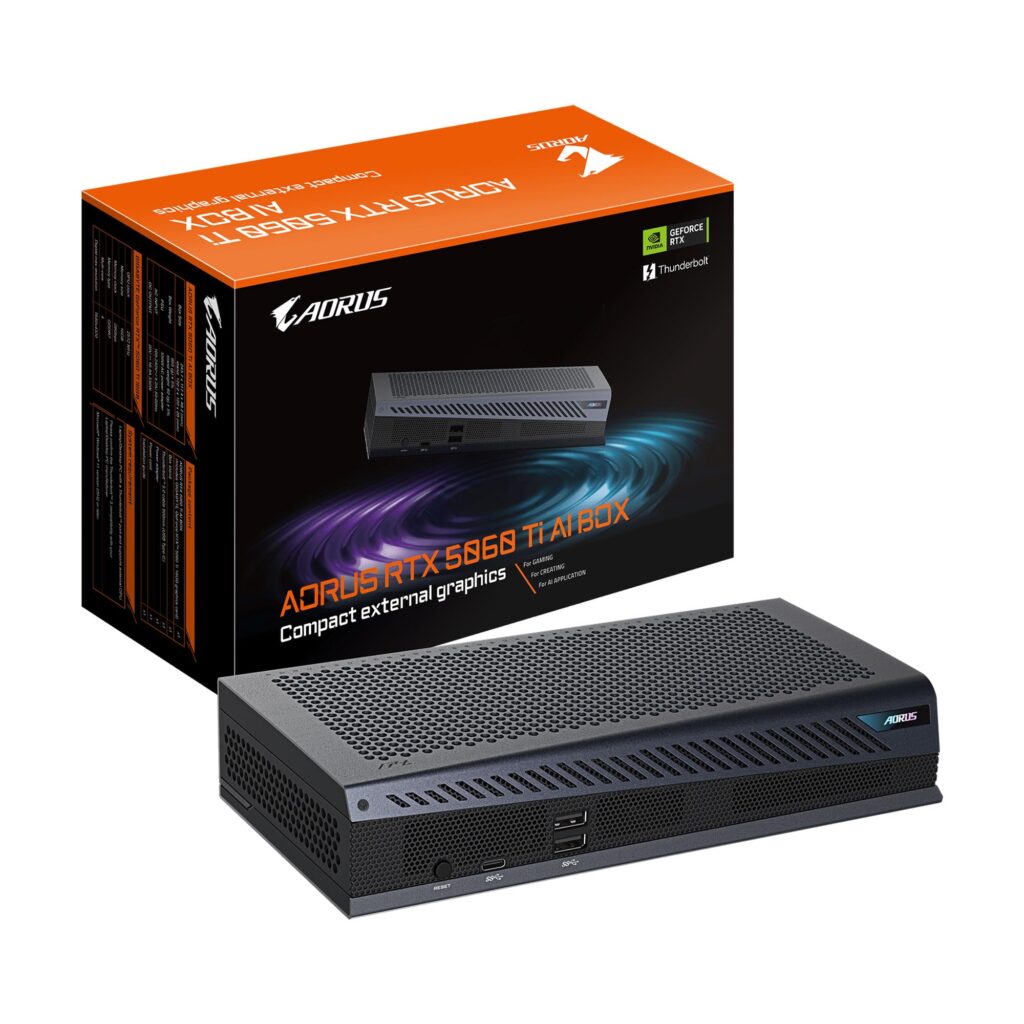

Physical integration emphasizes a compact, dual-orientation desktop footprint measuring 9.57 x 4.61 x 1.89 in (243 x 117 x 48 mm), allowing users to position the unit horizontally beneath a monitor or vertically to reclaim workspace. Gigabyte integrates its proprietary WINDFORCE cooling system to exhaust heat generated across the 180W power envelope, maintaining stable operational temperatures during sustained rendering workloads or extended 1440p gaming sessions. RGB lighting accents provide subtle visual status indications without dominating the desktop environment.

In daily desktop setups, connectivity stands out as the primary operational advantage. Dual Thunderbolt 5 ports provide high-bandwidth host communication with support for peripheral daisy-chaining, while full backward compatibility with USB4 ensures seamless plug-and-play operation across diverse thin-and-light systems. With one HDMI 2.1 port and three DisplayPort 2.1 outputs, the enclosure can drive complex multi-display workstations directly from an ultrabook, consolidating power, video, and peripheral routing through a single umbilical cable.

Technical Specifications

Brand GIGABYTE
Model AORUS GeForce RTX 5060 Ti AI Box 16GB
GPU NVIDIA GeForce RTX 5060 Ti
Architecture NVIDIA Blackwell
VRAM Capacity 16 GB
VRAM Type GDDR7
GPU Power Rating 180W
Host Interface Thunderbolt 5 / USB4 (Backward Compatible)
Power Delivery Up to 100W USB PD 3.0
Cooling System WINDFORCE Cooling System
Display Outputs 1x HDMI 2.1, 3x DisplayPort 2.1
Expansion Ports 2x Thunderbolt 5 (Daisy-Chain Supported), 3x USB 3.2 Gen 2 Type-A, 1x USB-C
Networking 1x Gigabit Ethernet LAN
Dimensions 9.57 x 4.61 x 1.89 in (243 x 117 x 48 mm)
Chassis Orientation Horizontal or Vertical Desktop Orientation
Lighting RGB Lighting
📋
