Overview
Pairing a 2.5 Gbps Ethernet backhaul with dual-band 802.11be radios, the Omada BE5000 EAP723 integrates Wi-Fi 7 protocol advancements directly into legacy wireless spectrums. Its RF architecture delivers theoretical maximum link rates of up to 4324 Mbps across the 5 GHz band (utilizing 240 MHz channel widths in US-spec deployments) and up to 688 Mbps on 2.4 GHz, utilizing 4096-QAM modulation, Multi-Link Operation (MLO), and Multi-Resource Unit (MRU) preamble puncturing. To hit an accessible cost and compact thermal target, the hardware deliberately foregoes a 6 GHz radio, bounding client transmission strictly to 2.4 GHz and 5 GHz spectrums. Power delivery is managed flexibly through an IEEE 802.3at PoE+ interface drawing up to 19.5 W under peak utilization, alongside an alternative 12V/1.5A DC barrel input.

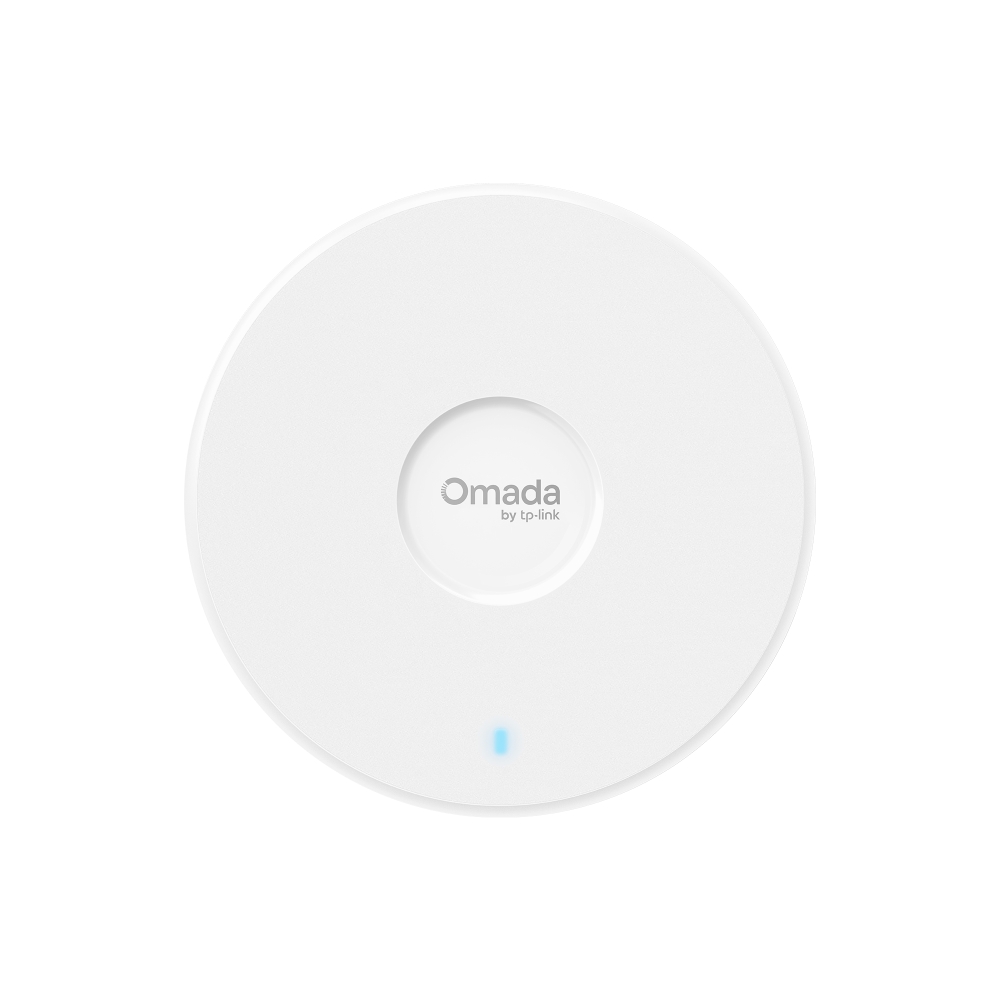

Structurally, the unit is housed in a low-profile matte white thermoplastic dome measuring 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) and weighing 14.5 oz (412 g), designed for flush ceiling or wall mounting via an interlocking twist-lock bracket. Internal hardware relies on omnidirectional antennas rated at 4.0 dBi for 2.4 GHz and 5.0 dBi for 5 GHz, supplemented by an integrated 3.0 dBi Bluetooth 5.2 radio for streamlined on-site discovery and onboarding. Thermal management is entirely passive, dissipating heat through rear chassis convection cutouts to sustain continuous commercial operation within an ambient envelope of 0 °C to 40 °C (32 °F to 104 °F).
Operational control integrates natively into TP-Link’s Omada Software-Defined Networking (SDN) ecosystem, supporting centralized cloud provisioning, multi-site management, 802.11k/v/r fast roaming, and up to 16 isolated SSIDs with 802.1Q VLAN mapping. Firmware maintenance follows regular release cadence across hardware revisions, providing stable WPA3-Enterprise authentication and band steering. While the lack of 6 GHz spectrum leaves congested airspace vulnerable to local channel overlap, the EAP723 establishes a dependable multi-gigabit wireless bridge for SMBs and prosumer homelabs seeking 2.5 GbE backhaul performance without enterprise tri-band hardware overhead.
Technical Specifications
| Brand | Omada |
| Model | BE5000 EAP723 |
| Wireless Standard | Wi-Fi 7 (IEEE 802.11be/ax/ac/n/g/b/a) |
| Radio Bands | Dual-Band (2.4 GHz and 5 GHz, no 6 GHz) |
| Spatial Streams | 2x2 MIMO (2.4 GHz) + 2x2 MIMO (5 GHz) |
| Max Phy Rate 5ghz | 4324 Mbps (240 MHz channel width, US) / 2882 Mbps (160 MHz channel width, EU) |
| Max Phy Rate 2 4ghz | 688 Mbps (40 MHz channel width) |
| Ethernet Interface | 1 × 2.5 Gbps RJ45 Port |
| Power Options | 802.3at PoE+ or 12V/1.5A DC Input |
| Power Consumption Poe | 19.5 W (US) / 18.6 W (EU) |
| Power Consumption Dc | 16.8 W (US) / 16.0 W (EU) |
| Antenna Configuration | Internal Omni: 2 × 4.0 dBi (2.4 GHz), 2 × 5.0 dBi (5 GHz), 1 × 3.0 dBi (Bluetooth 5.2) |
| Channel Bandwidth | Up to 240 MHz (5 GHz US) / 160 MHz (5 GHz EU), up to 40 MHz (2.4 GHz) |
| Modulation Scheme | 4096-QAM (4K-QAM) |
| Management Ecosystem | Omada SDN (Controller, Cloud, or Standalone) |
| Concurrent Clients | 250+ clients |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Dimensions | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Weight | 14.5 oz (412 g) |
| Mounting Options | Ceiling and wall mount (bracket included) |
- Multi-gigabit 2.5 GbE PoE+ port eliminates backhaul bottlenecks for high-throughput Wi-Fi 7 clients
- Implements core 802.11be features including 4096-QAM, Multi-Link Operation (MLO), and Multi-RU puncturing
- Compact 6.3-inch footprint with seamless Omada SDN centralized management and mesh coordination
- Integrated Bluetooth 5.2 radio accelerates mobile app provisioning and on-site onboarding
- Lacks 6 GHz radio band support, restricting all client traffic to congested 2.4 GHz and 5 GHz spectrums
- Maximum 5 GHz channel width is capped at 160 MHz in EU regions compared to 240 MHz in US models
- External DC power adapter is not included in the standard retail packaging
