Anker Smart Display Hub (10-in-1 USB-C Dock)

Anker Smart Display Hub (10-in-1 USB-C Dock)
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: An exceptional desktop docking station for Windows multi-display setups and power-conscious users who want real-time hardware telemetry without installing background software.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.3 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.2 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
A standout 1.4-inch hardware telemetry display elevates Engineering & Architecture (4.3) by providing real-time port wattage and handshake diagnostics directly on the dock. Build quality (4.4) is anchored by a weighted, anti-slip angled desktop chassis with clean port tolerances. Thermal management (4.1) maintains stable continuous operation across a 100W PD input using passive internal heat spreading without acoustic fan penalties. Reliability (4.2) benefits from multi-rail over-current and surge protection across data and video controllers, while Value (4.3) delivers exceptional price-to-utility for a dual 4K 60Hz 10-in-1 dock with dedicated telemetry.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

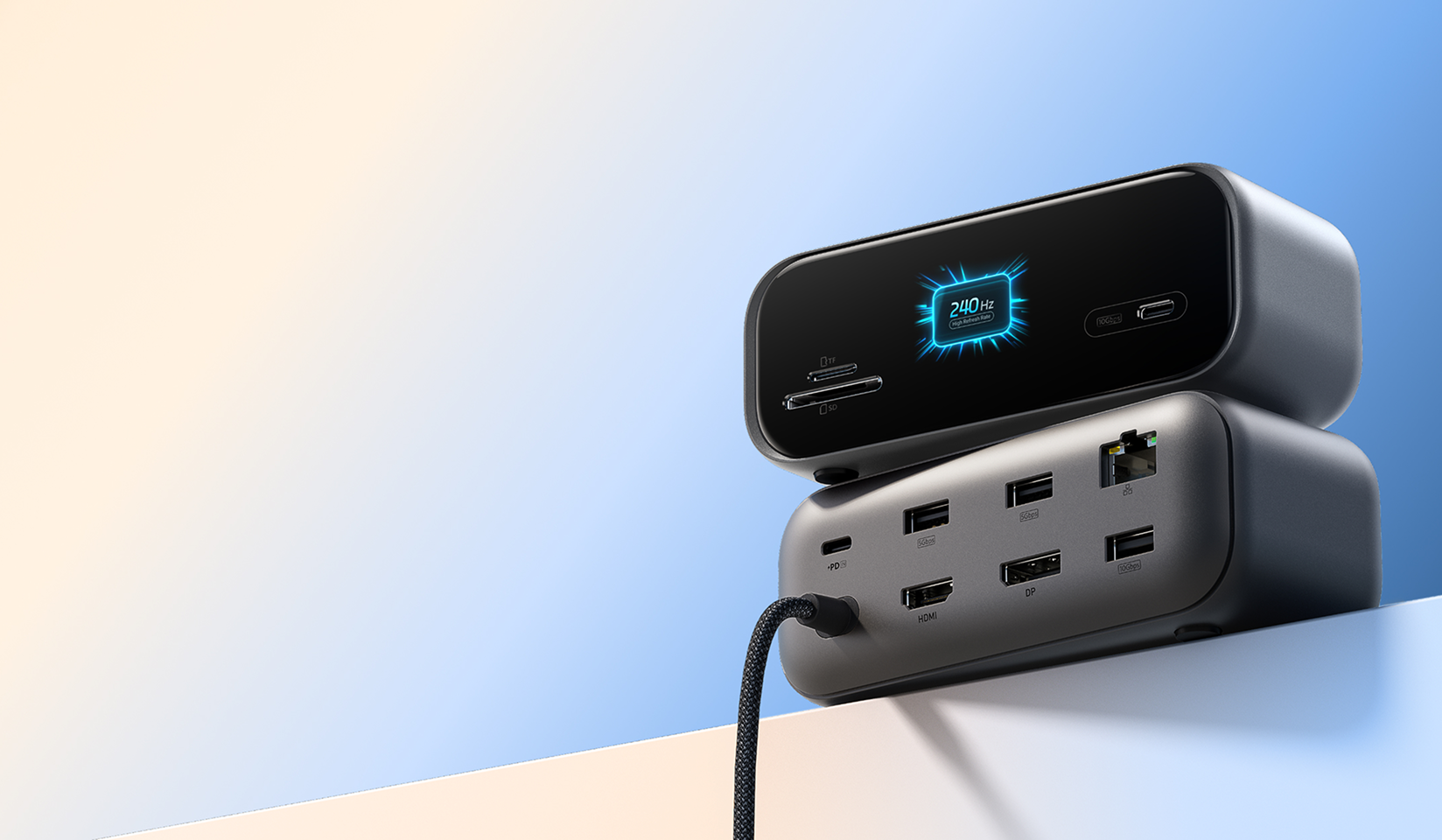

Engineered around an angled desktop form factor, the Anker Smart Display Hub (Model A210C) integrates a 1.4-inch color status display directly into a 10-in-1 USB-C workstation dock. By moving port telemetry out of driver software and onto dedicated front-facing LCD silicon, the dock provides hardware-level visibility into real-time charging wattage, link negotiation, and active peripheral bandwidth across all ten channels.

The physical layout balances thermal dissipation against high-draw power management. Accommodating a 100W USB-C Power Delivery input with an internal 15W power-reserve partition for dock electronics, the unit routes up to 85W of continuous clean charging to the host machine. Display pipelines support dual 4K outputs at 60Hz across HDMI 2.0 and DisplayPort 1.4 interfaces on Windows environments using Multi-Stream Transport (MST), alongside dedicated 10Gbps USB 3.2 Gen 2 data lanes, Gigabit Ethernet, and UHS-I flash readers.

Under sustained multi-port transfers and full host charging loads, internal thermal dissipation relies on an integrated thermal chassis layer that manages passive heat spread without mechanical fan noise. While macOS users remain subject to Apple’s inherent single-stream transport (SST) dual-monitor mirroring limits, the hardware architecture provides a rock-solid desktop dock for power users demanding immediate visual telemetry of their power and data rails.

Technical Specifications

Brand Anker
Model Smart Display Hub (A210C)
Device Category Desktop Docking Stations
Hardware Category USB-C Hubs & Docks
Form Factor Desktop Angled Stand / Hub
Total Ports 10-in-1
Host Connection USB-C (Up to 85W Passthrough)
Power Input USB-C PD 100W Max (15W Operating Overhead)
Integrated Display 1.4-inch Color LCD (Real-Time Port Telemetry & Wattage)
Video Outputs 1x HDMI 2.0 (4K@60Hz), 1x DisplayPort 1.4 (4K@60Hz)
Multi Display Modes Dual 4K@60Hz (Windows MST), Mirrored/Single 4K@60Hz (macOS SST)
Data Ports 1x USB-C 3.2 Gen 2 (10Gbps), 2x USB-A 3.2 Gen 1 (5Gbps), 1x USB-A 2.0 (480Mbps)
Networking 1x Gigabit Ethernet RJ45 (10/100/1000 Mbps)
Card Reader SD / microSD (UHS-I 104MB/s simultaneous read)
✔ Pros
  • Integrated 1.4-inch telemetry screen provides real-time wattage and link-speed monitoring without external software
  • Dual 4K@60Hz output via independent HDMI 2.0 and DisplayPort 1.4 outputs (with Windows MST support)
  • Clean desktop form factor with forward-facing USB-C 10Gbps data and 100W total PD delivery capability
  • Full I/O expansion suite combining Gigabit Ethernet, UHS-I SD/microSD card slots, and legacy peripheral ports
✖ Cons
  • macOS limitation: Apple Silicon lacks native MST support, restricting dual external monitors to mirrored mode only
  • Requires a separate 100W+ USB-C PD wall brick (not bundled in standard package) to achieve full 85W host charging
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Networking & Routers

Compare Other Models →

At a Glance

How reliable is the Anker Smart Display Hub (10-in-1 USB-C Dock) according to Mizex audits?
Mizex Composite Score: 4.3 / 5.0 ▲ DOCUMENTED QUIRKS

An exceptional desktop docking station for Windows multi-display setups and power-conscious users who want real-time hardware telemetry without installing background software.

What are the known quirks or drawbacks of the Anker Smart Display Hub (10-in-1 USB-C Dock)?

Our reliability audit identified the following documented caveats:

  • macOS limitation: Apple Silicon lacks native MST support, restricting dual external monitors to mirrored mode only
  • Requires a separate 100W+ USB-C PD wall brick (not bundled in standard package) to achieve full 85W host charging
What are the key engineering highlights of the Anker Smart Display Hub (10-in-1 USB-C Dock)?

The top strengths recorded in our evaluation include:

  • Integrated 1.4-inch telemetry screen provides real-time wattage and link-speed monitoring without external software
  • Dual 4K@60Hz output via independent HDMI 2.0 and DisplayPort 1.4 outputs (with Windows MST support)
  • Clean desktop form factor with forward-facing USB-C 10Gbps data and 100W total PD delivery capability
  • Full I/O expansion suite combining Gigabit Ethernet, UHS-I SD/microSD card slots, and legacy peripheral ports
