Overview

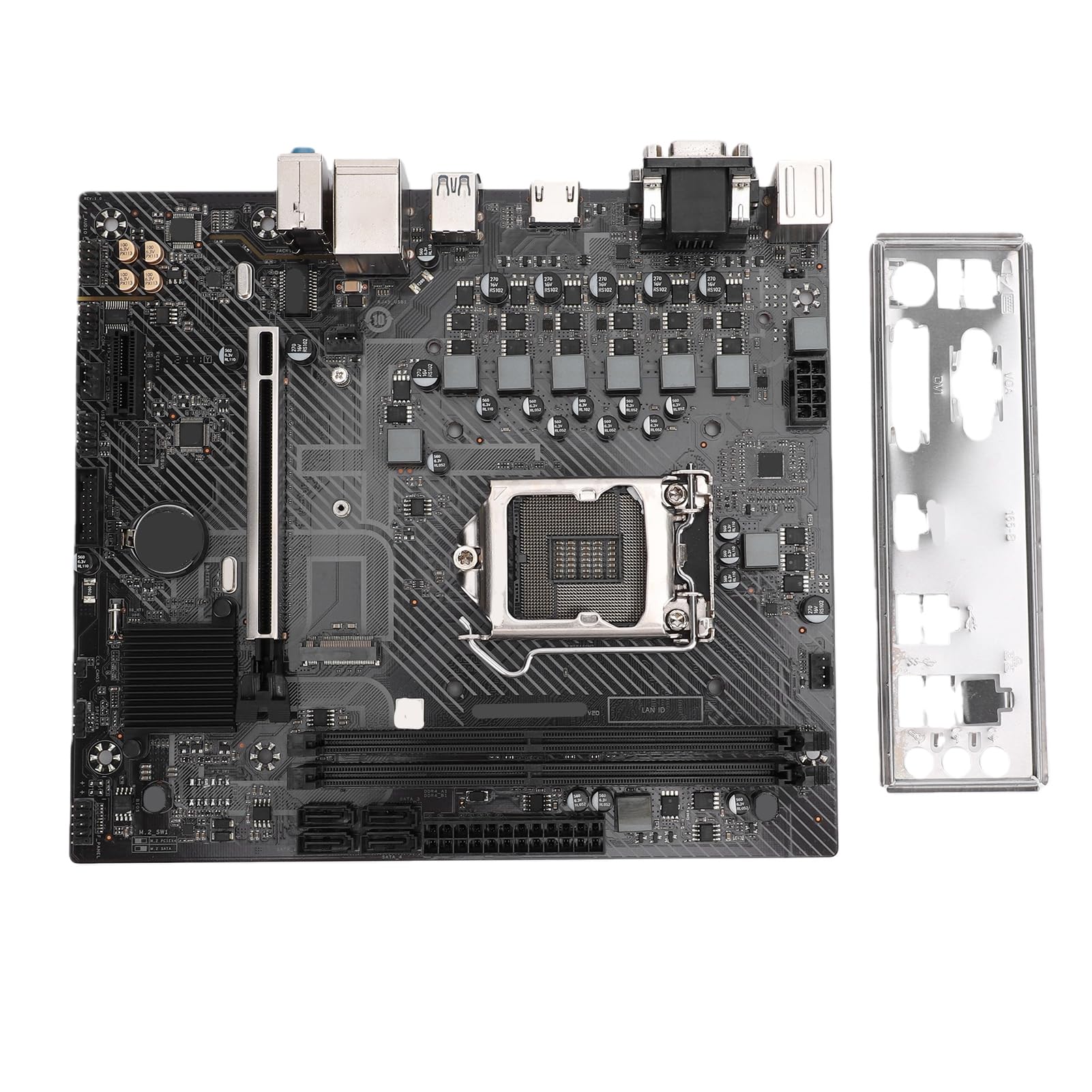

The Horett B460M K PRO is an entry-level Micro-ATX motherboard built around Intel’s LGA 1200 socket and B460 chipset, engineered specifically to accommodate 10th Generation Intel Core, Pentium, and Celeron processors. The layout utilizes a compact 220mm by 194mm multi-layer PCB, providing two DDR4 DIMM slots configured for dual-channel memory up to 64GB, a primary PCIe 3.0 x16 slot for discrete graphics, and a single M.2 2280 storage interface capable of operating across both PCIe 3.0 x4 and SATA lanes. Power delivery is channeled through a basic 6-phase voltage regulator module utilizing discrete MOSFET switches and standard solid-state filtering capacitors across essential power planes.
From a thermal and firmware perspective, the board operates in complete silence due to its purely passive cooling scheme, featuring an aluminum block over the B460 chipset while leaving the VRM MOSFETs completely exposed without heatsinks. This configuration effectively limits thermal headroom to 65W TDP processors, as prolonged multi-threaded workloads will cause surface temperatures to rise significantly in low-airflow chassis. Furthermore, as an OEM white-label product, long-term driver maintenance, microcode updates, and BIOS revisions are minimal compared to major tier-one manufacturers, making the board best suited for basic replacement systems or low-demand secondary workstations.
Technical Specifications
| Brand | Horett |
| Model | B460M K PRO |
| Form Factor | Micro-ATX (220mm x 194mm) |
| Cpu Socket | LGA 1200 |
| Chipset | Intel B460 |
| Supported Processors | Intel 10th Generation Core i9 / i7 / i5 / i3 / Pentium / Celeron |
| Memory Slots | 2 x DDR4 DIMM |
| Memory Capacity Max | 64GB |
| Memory Architecture | Dual-Channel DDR4 (up to 2933 MHz) |
| Power Delivery | 6-Phase Digital VRM (unheatsinked) |
| Pcie Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| M2 Storage Slots | 1 x M.2 2280 (PCIe 3.0 x4 & SATA mode) |
| Sata Ports | 4 x SATA 6Gb/s |
| Rear Io Ports | HDMI, VGA, USB 3.0 Type-A, USB 2.0, Gigabit LAN, 3.5mm Audio Jacks |
| Audio Controller | Realtek ALC 6-Channel High Definition Audio |
| Ethernet Controller | Realtek 10/100/1000 Mbps Gigabit Ethernet |
| Cooling Heatsinks | Passive chipset heatsink (no VRM heatsink) |
- Accessible Micro-ATX drop-in board for LGA 1200 Intel 10th Gen Core processors
- Dedicated M.2 2280 slot supporting both NVMe PCIe 3.0 x4 and legacy SATA drives
- Completely silent operation with zero active onboard fans
- Unshielded VRM MOSFETs run hot during sustained multi-core loads
- Sparse official BIOS updates, security patches, and driver documentation
Primary Sources & Audited Citations
Recommended Alternatives in Motherboards
At a Glance
How reliable is the Horett B460M K PRO according to Mizex audits?
Viable strictly for budget repairs or low-power 65W Intel 10th Gen office systems, provided users accept bare-metal VRMs and limited official firmware support.
What are the known quirks or drawbacks of the Horett B460M K PRO?
Our reliability audit identified the following documented caveats:
- Unshielded VRM MOSFETs run hot during sustained multi-core loads
- Sparse official BIOS updates, security patches, and driver documentation
What are the key engineering highlights of the Horett B460M K PRO?
The top strengths recorded in our evaluation include:
- Accessible Micro-ATX drop-in board for LGA 1200 Intel 10th Gen Core processors
- Dedicated M.2 2280 slot supporting both NVMe PCIe 3.0 x4 and legacy SATA drives
- Completely silent operation with zero active onboard fans
