MSI PRO H610M-A DDR4

MSI PRO H610M-A DDR4
▲ DOCUMENTED QUIRKS
Site Score
3.7 / 5.0
Buyer Guidance: An economical choice for pairing with 65W Core i3 or i5 processors, but avoid pairing it with Core i7 or i9 CPUs that overwhelm its bare VRM design.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 3.6 / 5.0
Build Quality & Physical Design (20%) 3.8 / 5.0
Thermal, Power & Acoustics (20%) 3.3 / 5.0
Reliability & Stability (20%) 3.7 / 5.0
Buyer Value (10%) 4.1 / 5.0
Score Rationale
Thermal management (3.3) and power delivery limitations serve as the primary rating ceiling, as the unheatsinked VRM thermal-throttles under sustained heavy compute loads with high-TDP processors. Engineering & Architecture (3.6) provides solid entry-tier fundamentals highlighted by a Realtek 2.5GbE controller, offset by chipset-imposed PCIe 3.0 storage caps and shared SATA bus routing. Build quality (3.8) benefits from Steel Armor structural reinforcement on the primary PCIe slot to prevent PCB flexing. Reliability (3.7) is stable for standard office and light gaming duties, though docking points for BIOS dependencies on 13th and 14th Gen processors. Buyer value (4.1) remains strong for sub-65W budget builds requiring modern display connectivity and multi-gigabit networking on a tight budget.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

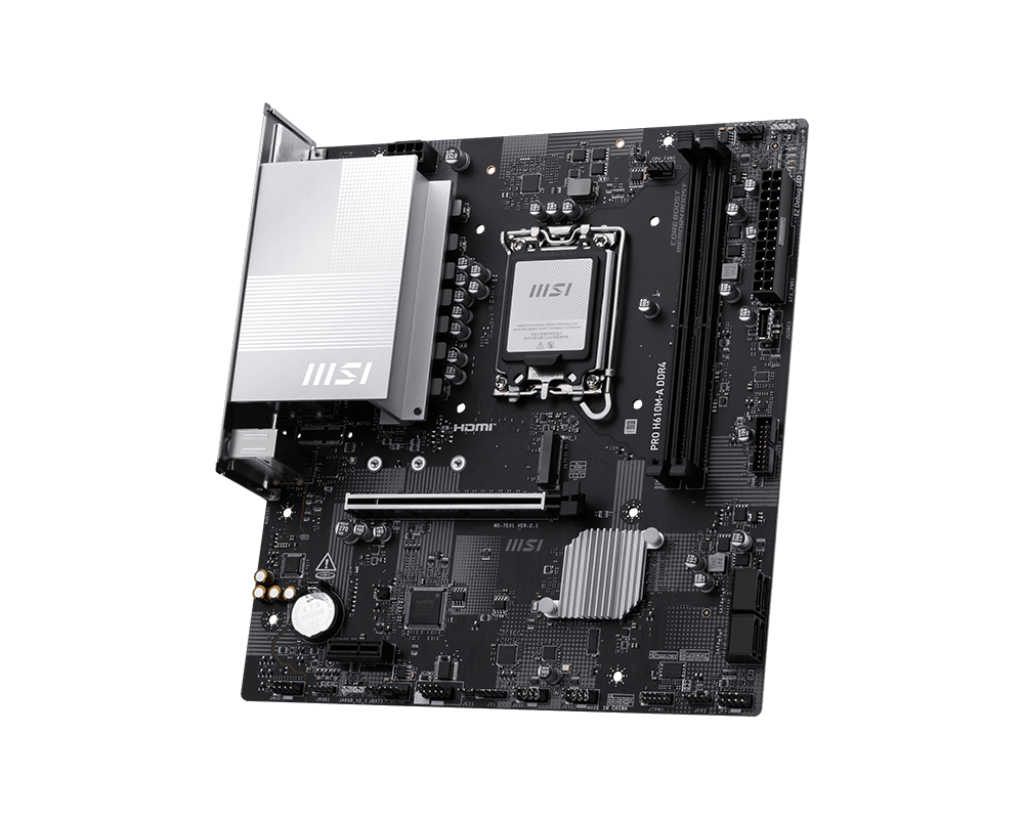

Built around Intel’s entry-tier H610 chipset on the LGA 1700 socket, power delivery relies on a basic unheatsinked VRM design fed by an 8-pin ATX 12V auxiliary connector. While adequate for 65W TDP 12th, 13th, or 14th Gen Core i3 and non-K Core i5 processors during everyday productivity and modest gaming, sustained all-core workloads on higher-tier Core i7 or i9 silicon push the bare power stages into thermal throttling territory. Peripheral and expansion routing leverages CPU-direct lanes for a single PCIe 4.0 x16 slot, while the single Key M M.2 slot is constrained to PCIe 3.0 x4 throughput via the chipset.

Physical construction across the 244 mm by 211 mm micro-ATX PCB incorporates MSI’s Steel Armor reinforcement around the primary PCIe 4.0 x16 slot, providing structural resistance against PCB flex and connector strain from modern multi-slot graphics cards. Acoustic operation remains completely silent as the platform uses purely passive chipset dissipation without noisy miniature cooling fans. However, cooling considerations are entirely shifted to chassis airflow; without active or passive heatsinks on the power delivery circuitry, ambient cabinet ventilation is critical to manage component temperatures during extended compute operations.

System memory is capped at 64 GB of DDR4 across two DIMM slots operating up to 3200 MHz, trading high-capacity multi-channel expansion for baseline cost efficiency. A notable inclusion for this price class is the Realtek RTL8125D 2.5Gbps Ethernet controller, accompanied by dual 4K at 60Hz display outputs via HDMI 2.1 and DisplayPort 1.4. Operational quirks require careful integration planning: installing an M.2 SATA drive automatically disables the onboard SATA5 port due to shared bus routing, and earlier factory BIOS revisions demand an update using a 12th Gen processor before the board will POST with 13th or 14th Gen chips.

Technical Specifications

Brand MSI
Model PRO H610M-A DDR4
Socket LGA 1700
Chipset Intel H610
Form Factor Micro-ATX
Cpu Compatibility Intel Core 12th, 13th, and 14th Gen, Pentium Gold, and Celeron processors
Memory Type DDR4
Memory Slots 2
Memory Channel Dual Channel
Max Memory Capacity 64 GB
Max Memory Speed 3200 MHz
Pcie X16 Slots 1x PCIe 4.0 x16 (from CPU)
Pcie X1 Slots 1x PCIe 3.0 x1 (from H610 chipset)
M2 Slots 1x M.2 Key M (PCIe 3.0 x4 & SATA mode, supports 2242/2260/2280)
Sata Ports 4x SATA 6Gb/s
Ethernet Controller Realtek RTL8125D 2.5Gbps LAN
Audio Codec Realtek ALC897 7.1-Channel HD Audio
Display Outputs 1x HDMI 2.1 (4K @ 60Hz), 1x DisplayPort 1.4 (4K @ 60Hz)
Power Connectors 1x 24-pin ATX main power, 1x 8-pin ATX 12V CPU power
Usb Rear 2x USB 3.2 Gen 1 5Gbps Type-A, 4x USB 2.0 Type-A
Dimensions 244 mm x 211 mm
✔ Pros
  • Integrated Realtek RTL8125D 2.5Gbps Ethernet delivers elevated network throughput uncommon in entry-tier boards
  • Dual digital display outputs with HDMI 2.1 and DisplayPort 1.4 both supporting 4K resolution at 60Hz
  • Steel Armor reinforcement on the primary PCIe 4.0 x16 slot protects the PCB against heavy GPU strain
  • Accessible LGA 1700 entry point for budget-oriented 12th, 13th, and 14th Gen Intel Core i3 and i5 builds
✖ Cons
  • Unheatsinked VRM power delivery thermal-throttles under sustained all-core workloads when paired with Core i7 or i9 CPUs
  • M.2 expansion is restricted to PCIe 3.0 x4 speeds, and populating an M.2 SATA SSD disables the SATA5 port
  • Memory expandability is capped at two DDR4 DIMM slots for a 64GB maximum capacity
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Motherboards

Compare Other Models →

At a Glance

How reliable is the MSI PRO H610M-A DDR4 according to Mizex audits?
Mizex Composite Score: 3.7 / 5.0 ▲ DOCUMENTED QUIRKS

An economical choice for pairing with 65W Core i3 or i5 processors, but avoid pairing it with Core i7 or i9 CPUs that overwhelm its bare VRM design.

What are the known quirks or drawbacks of the MSI PRO H610M-A DDR4?

Our reliability audit identified the following documented caveats:

  • Unheatsinked VRM power delivery thermal-throttles under sustained all-core workloads when paired with Core i7 or i9 CPUs
  • M.2 expansion is restricted to PCIe 3.0 x4 speeds, and populating an M.2 SATA SSD disables the SATA5 port
  • Memory expandability is capped at two DDR4 DIMM slots for a 64GB maximum capacity
What are the key engineering highlights of the MSI PRO H610M-A DDR4?

The top strengths recorded in our evaluation include:

  • Integrated Realtek RTL8125D 2.5Gbps Ethernet delivers elevated network throughput uncommon in entry-tier boards
  • Dual digital display outputs with HDMI 2.1 and DisplayPort 1.4 both supporting 4K resolution at 60Hz
  • Steel Armor reinforcement on the primary PCIe 4.0 x16 slot protects the PCB against heavy GPU strain
  • Accessible LGA 1700 entry point for budget-oriented 12th, 13th, and 14th Gen Intel Core i3 and i5 builds
