- High-density 16GB GDDR6 memory buffer in a single-slot, low-profile card
- Slot-powered 70W TBP operation eliminating external PCIe power cabling
- Broad hardware media engine supporting AV1, H.265, and H.264 encode/decode
- Modern PCIe 5.0 host interface with DisplayPort 2.1 connectivity
- Memory bandwidth constrained to 224 GB/s across a 128-bit bus width
- HDMI 2.1 display outputs bandwidth-limited to 7680 x 4320 @ 30Hz
Overview

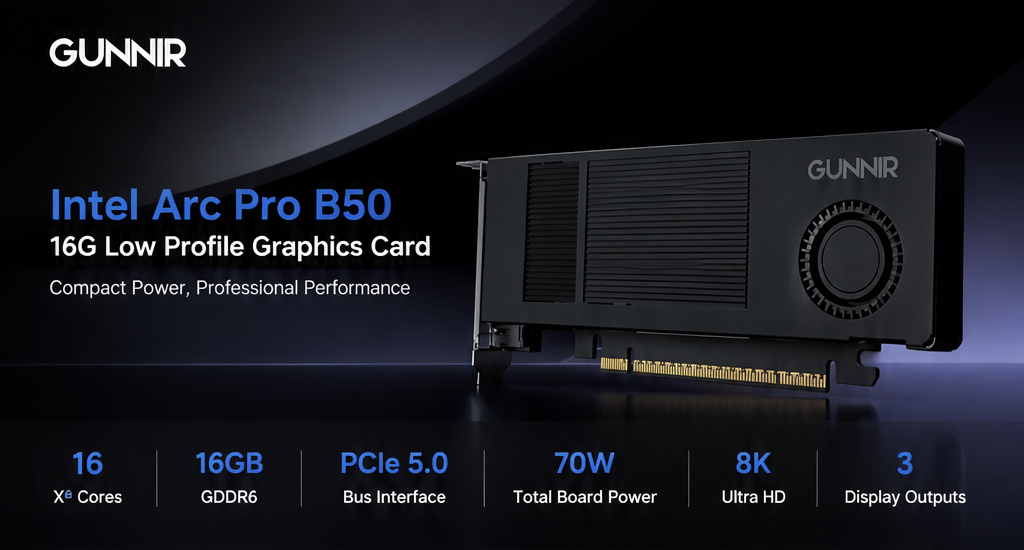

Drawing all operating power directly from the motherboard PCIe slot within a strict 70W Total Board Power envelope, the Intel Xe2 microarchitecture on TSMC’s N5 process node integrates 16 Xe cores clocked at 1700 MHz without requiring auxiliary 12V power cabling. Pairing this silicon with a 16GB GDDR6 memory configuration across a 128-bit bus generates 224 GB/s of bandwidth and 170 INT8 TOPS of compute throughput. The host interface communicates over PCIe 5.0, feeding a multi-format media engine capable of hardware acceleration across AV1, H.265, H.264, VP9, VC1, and MPEG2. Display outputs provide a DisplayPort 2.1 connector supporting up to 7680 x 4320 @ 60Hz alongside dual HDMI 2.1 ports capped at 7680 x 4320 @ 30Hz.
Physical integration centers on a single-slot, low-profile footprint measuring 6.57 x 2.72 x 0.72 in (167 x 69 x 18.4 mm), engineered specifically for density-restricted 1U/2U server chassis and small form factor workstation enclosures. Thermal dissipation relies on a dedicated single-slot turbo blower cooling system designed to drive exhaust laterally across the low-profile bracket within an ambient operating envelope of 32°F to 113°F (0°C to 45°C). Maintaining active airflow within an 18.4 mm single-slot profile naturally requires higher blower rotational speeds under sustained compute workloads compared to dual-slot axial arrangements, but ensures adjacent expansion slots remain unblocked.
In practical workstation and homelab deployment, the inclusion of 16GB of addressable video memory alongside slot-powered operation fulfills specialized edge computing, AI model inference, and multi-stream video transcode requirements under DirectX 12 and OpenGL 4.6. Eliminating external PCIe power leads bypasses auxiliary connector failure modes and enables direct installation into proprietary OEM office systems. While the 128-bit bus width and 30Hz 8K HDMI ceiling represent clear architectural throughput limits, the overall assembly offers a compact, functional compute platform for space-limited configurations.
Technical Specifications
| Brand | GUNNIR |
| Model | Intel Arc Pro B50 LP 16GB |
| GPU Architecture | Intel Xe2 |
| Lithography Process | TSMC N5 |
| Xe Cores | 16 |
| Graphics Clock | 1700 MHz |
| AI Compute Performance | 170 INT8 TOPS |
| Memory Capacity | 16GB |
| Memory Type | GDDR6 |
| Memory Speed | 14 Gbps |
| Memory Bus Width | 128-bit |
| Memory Bandwidth | 224 GB/s |
| Host Interface | PCIe 5.0 |
| Form Factor | Low Profile (LP), Single Slot |
| Total Board Power (TBP) | 70W |
| Power Requirement | PCIe slot powered (no auxiliary power cables required) |
| Cooling Design | Single-slot turbo blower fan |
| Display Connectivity | 1x DisplayPort 2.1, 2x HDMI 2.1 |
| Max Resolution (DisplayPort) | 7680 x 4320 @ 60Hz |
| Max Resolution (HDMI) | 7680 x 4320 @ 30Hz |
| Dimensions | 6.57 x 2.72 x 0.72 in (167 x 69 x 18.4 mm) |
| API Support | DirectX 12, OpenGL 4.6 |
| Hardware Codec Engines | AV1, H.265, H.264, VC1, MPEG2, VP9, MJPEG |
| Operating Temperature Range | 32°F to 113°F (0°C to 45°C) |
Primary Sources & Audited Citations
Recommended Alternatives in Graphics Cards (GPUs)
At a Glance
How reliable is the GUNNIR Intel Arc Pro B50 LP 16GB Review: Slot-Powered 16GB SFF Compute according to Mizex audits?
Ideal for space-constrained 1U/2U servers and SFF workstations needing 16GB of VRAM and AV1 encoding under 75W, provided the 128-bit memory bus bandwidth accommodates your compute workload.
What are the known quirks or drawbacks of the GUNNIR Intel Arc Pro B50 LP 16GB Review: Slot-Powered 16GB SFF Compute?
Our reliability audit identified the following documented caveats:
- Memory bandwidth constrained to 224 GB/s across a 128-bit bus width
- HDMI 2.1 display outputs bandwidth-limited to 7680 x 4320 @ 30Hz
What are the key engineering highlights of the GUNNIR Intel Arc Pro B50 LP 16GB Review: Slot-Powered 16GB SFF Compute?
The top strengths recorded in our evaluation include:
- High-density 16GB GDDR6 memory buffer in a single-slot, low-profile card
- Slot-powered 70W TBP operation eliminating external PCIe power cabling
- Broad hardware media engine supporting AV1, H.265, and H.264 encode/decode
- Modern PCIe 5.0 host interface with DisplayPort 2.1 connectivity
