- Native rotatable PCIe slot assembly allows vertical GPU mounting without third-party brackets
- Generous component clearances supporting up to 16.1 in (410 mm) GPUs and 6.9 in (175 mm) CPU coolers
- Simultaneous dual 360 mm radiator accommodation across top and side mounting positions
- Integrated front interior display stage specifically engineered for showcasing collectibles
- Constructed with 0.024 in (0.6 mm) SPCC steel, providing less torsional rigidity than heavier-gauge alternatives
- Solid front tempered glass and display stage eliminate direct front intake, requiring side and bottom fan placement for airflow
Overview

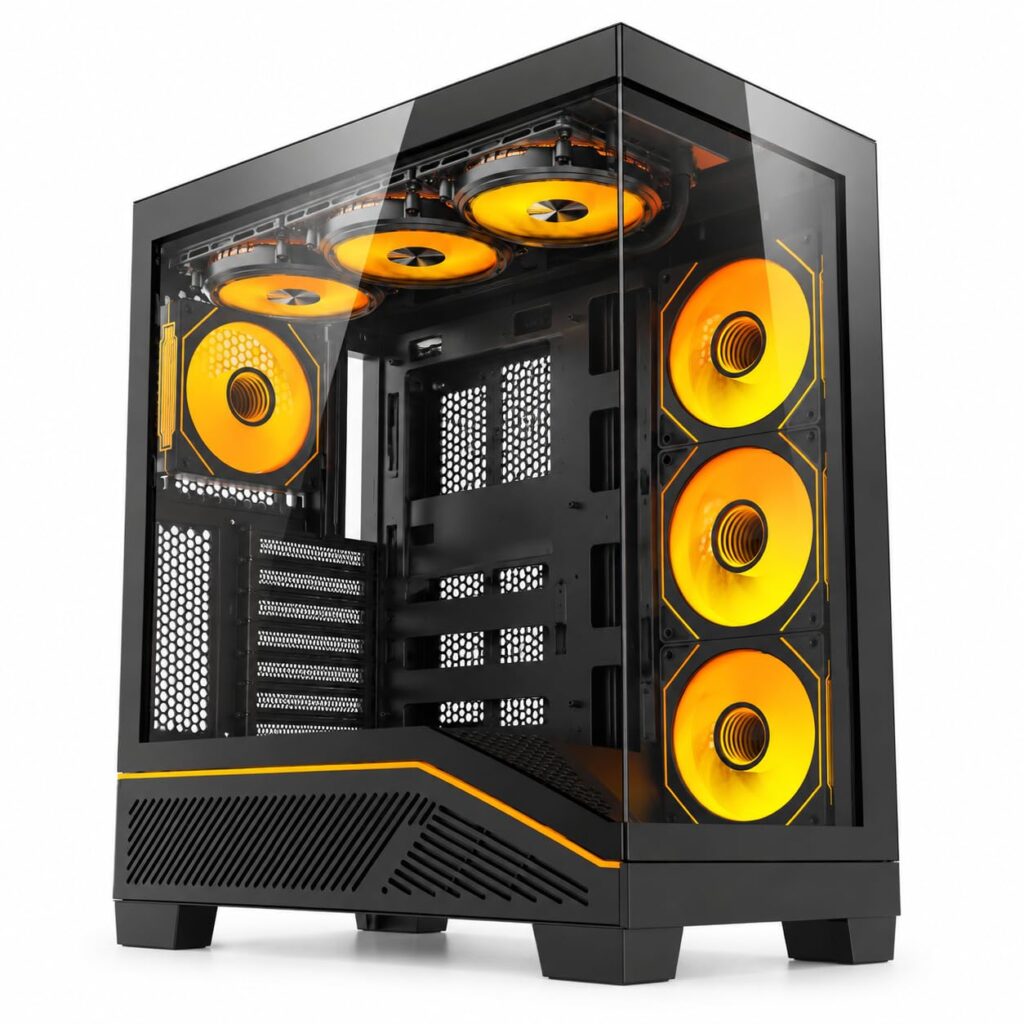

Designed to bridge the gap between performance desktop enclosures and collectible showcase aesthetics, the darkFlash K430 integrates a dedicated interior pedestal behind tempered glass to display figurines directly alongside primary hardware components. The main chamber accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards with generous spatial margins, offering up to 16.1 in (410 mm) of clearance for high-end graphics cards and 6.9 in (175 mm) for tall tower air coolers. A versatile seven-slot rear expansion assembly features a fully rotatable PCIe bracket structure, permitting native vertical graphics card orientation without requiring aftermarket adapter frames, and pairs with an integrated anti-sag support to protect motherboard PCIe sockets from heavy modern GPUs.
Structural framework duties rely on 0.024 in (0.6 mm) SPCC steel paired with panoramic tempered glass panels. While the 0.6 mm steel gauge keeps the overall enclosure lightweight and easy to handle during initial assembly, it offers less torsional stiffness than heavier 0.8 mm or 1.0 mm structural chassis, necessitating careful handling when securing hefty components. Airflow architecture pivots entirely around indirect ventilation, as the solid front glass and display stage seal off traditional front-to-back intake paths. Cooling relies instead on side intake mounts capable of hosting up to three 120 mm fans or a 360 mm radiator, bottom ventilation for two 120 mm fans directed toward the GPU, and top exhaust supporting up to a 360 mm radiator or two 140 mm fans.
From an operational and connectivity perspective, the front I/O panel delivers modern utility with a dedicated USB Type-C port, a USB 3.0 Type-A connector, a USB 2.0 port, and unified HD audio jacks. The case avoids convoluted proprietary fan or lighting controllers that often introduce single-point firmware failures, opting instead for a streamlined built-in light strip and standard motherboard headers. Storage flexibility is equally robust for a mid-tower chassis measuring 16.9 x 9.4 x 18.3 in (430 x 238 x 465 mm), packing support for three 2.5-inch solid-state drives and three 3.5-inch hard drives. Builders configuring multi-fan intake curves will appreciate the dual 360 mm radiator capacity across the top and side mounts, providing sufficient liquid-cooling headroom for demanding multi-core desktop platforms.
Technical Specifications
| Brand | darkFlash |
| Model | K430 |
| Form Factor | ATX Mid-Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Materials | 0.024 in (0.6 mm) SPCC Steel, Tempered Glass |
| Case Dimensions | 16.9 x 9.4 x 18.3 in (430 x 238 x 465 mm) |
| Overall Dimensions | 17.4 x 9.4 x 19.3 in (441 x 238 x 490 mm) |
| Max GPU Clearance | 16.1 in (410 mm) |
| Max CPU Cooler Clearance | 6.9 in (175 mm) |
| Expansion Slots | 7 (Rotatable PCIe Assembly) |
| GPU Anti Sag Bracket | Integrated |
| Collectible Display Stage | Integrated Front Interior Platform |
| Drive Bays | 3x 2.5-inch SSD, 3x 3.5-inch HDD |
| Fan Mounts (Top) | 3x 120 mm / 2x 140 mm |
| Fan Mounts (Side) | 3x 120 mm |
| Fan Mounts (Rear) | 1x 120 mm / 1x 140 mm |
| Fan Mounts (Bottom) | 2x 120 mm |
| Radiator Support (Top) | 240 mm / 280 mm / 360 mm |
| Radiator Support (Side) | 240 mm / 360 mm |
| Radiator Support (Rear) | 120 mm / 140 mm |
| Front I/O Ports | 1x USB Type-C, 1x USB 3.0, 1x USB 2.0, HD Audio, Power Button, Reset Button |
| Lighting | Integrated Ambient Light Strip |
| Color Options | Black |
Primary Sources & Audited Citations
Recommended Alternatives in PC Cases
At a Glance
How reliable is the darkFlash K430 Review: Showcase Staging Meets Rotatable PCIe according to Mizex audits?
Ideal for builders seeking an affordable panoramic showcase with vertical GPU flexibility, provided they optimize side and bottom intake fans to offset the closed front glass panel.
What are the known quirks or drawbacks of the darkFlash K430 Review: Showcase Staging Meets Rotatable PCIe?
Our reliability audit identified the following documented caveats:
- Constructed with 0.024 in (0.6 mm) SPCC steel, providing less torsional rigidity than heavier-gauge alternatives
- Solid front tempered glass and display stage eliminate direct front intake, requiring side and bottom fan placement for airflow
What are the key engineering highlights of the darkFlash K430 Review: Showcase Staging Meets Rotatable PCIe?
The top strengths recorded in our evaluation include:
- Native rotatable PCIe slot assembly allows vertical GPU mounting without third-party brackets
- Generous component clearances supporting up to 16.1 in (410 mm) GPUs and 6.9 in (175 mm) CPU coolers
- Simultaneous dual 360 mm radiator accommodation across top and side mounting positions
- Integrated front interior display stage specifically engineered for showcasing collectibles
