DIYPC DIY-V2-MicroATX Review: Budget Glass Meets Front USB-C

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.0 / 5.0
Buyer Guidance: The DIYPC DIY-V2-MicroATX is an economical choice for builders seeking modern front USB Type-C and tempered glass on an entry-level budget, provided components adhere strictly to the 280 mm graphics card and 140 mm power supply limits.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.0 / 5.0
Build Quality & Physical Design (20%) 3.7 / 5.0
Thermal, Power & Acoustics (20%) 3.8 / 5.0
Reliability & Stability (20%) 4.2 / 5.0
Buyer Value (10%) 4.4 / 5.0
Score Rationale
Exceptional entry-level value pairing a tempered glass side panel with modern front-panel USB Type-C connectivity anchors the composite score at 4.0 out of 5.0. Engineering & Architecture (4.0) provides a straightforward Micro-ATX layout with dedicated cable routing channels, though it utilizes non-reusable punch-out PCIe slot covers. Build quality (3.7) incorporates lightweight SPCC steel and a tempered glass panel, balancing clean aesthetics against thin sheet-metal chassis flex. Thermal management (3.8) relies on lateral front intake vents and an included rear 120 mm exhaust fan, supporting up to seven 120 mm fans total despite restricted front airflow. Real-World Reliability (4.2) is bolstered by passive structural simplicity and standard front-panel switchgear. Buyer value (4.4) delivers competitive entry-level utility for budget desktop builds, offset primarily by a 280 mm maximum graphics card clearance and limited 140 mm power supply depth.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Integrated front-panel USB Type-C port alongside USB 3.0 Type-A and HD audio
  • Full-coverage tempered glass side panel for clean internal hardware presentation
  • Expansive cooling layout accommodating up to seven 120 mm fans with magnetic top filtering
  • Accommodates standard tower CPU air coolers up to 163 mm (6.42 in) in height
✖ Cons
  • Maximum graphics card length constrained to 280 mm (11.02 in), limiting fitment of large modern GPUs
  • Solid front panel design with lateral intake slits restricts airflow compared to open-mesh chassis
  • Break-away stamped PCIe slot covers cannot be reattached once removed

Overview

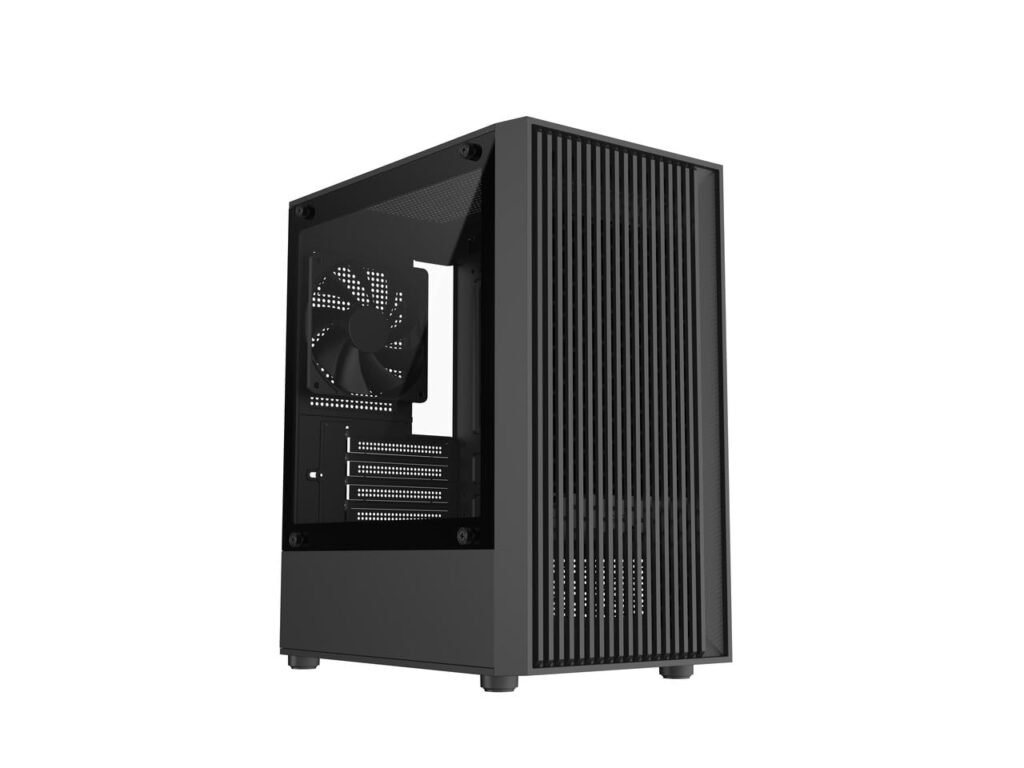

Balancing a space-conscious desktop footprint with modern front-panel connectivity, the DIYPC DIY-V2-MicroATX implements an entry-level mini-tower layout measuring 15.60 x 8.00 x 12.72 in (396 x 203 x 323 mm) with an unladen weight of 9.10 lbs (4.13 kg). The core chassis accommodates Micro-ATX and Mini-ITX motherboards, anchoring its front I/O with a dedicated USB Type-C port, one USB 3.0 Type-A port, and standard HD audio jacks. Internal component allocation provides clearance for CPU tower coolers up to 163 mm (6.42 in) in height, graphics cards up to 280 mm (11.02 in) in length, and standard bottom-mounted ATX power supplies up to 140 mm (5.51 in) deep. Dedicated drive storage incorporates one internal 3.5-inch hard drive bay alongside two 2.5-inch solid-state drive mounting positions.

Chassis construction pairs a cold-rolled SPCC steel skeleton with an edge-to-edge tempered glass side panel secured by rubber-grommeted thumb screws. The structural steel uses a lightweight gauge that exhibits noticeable torsional flex under lateral pressure, requiring measured torque during motherboard standoff and component installation to prevent thread stripping. At the rear, four PCIe expansion slots utilize stamped punch-out metal covers rather than reusable screwed brackets, necessitating pre-planning prior to removing slot blanks. Behind the motherboard tray, cable routing relies on a stamped side-panel channel bulge to provide necessary clearance for main ATX 24-pin and PCIe power looms within the compact frame.

Thermal circulation operates via a solid front fascia with perimeter intake slits, venting warm air through a single pre-installed 120 mm rear exhaust fan and an open top exhaust array shielded by a magnetic mesh dust filter. While the chassis supports up to seven 120 mm fans—including two front mounts, two top mounts, two bottom PSU shroud mounts, and the rear exhaust—intake airflow through the solid front bezel is constrained relative to full-mesh enclosures. Liquid cooling support is effectively restricted to a 120 mm radiator at the rear exhaust location due to motherboard clearance constraints along the top panel. For budget-conscious desktop assemblies operating within standard thermal envelopes, the chassis delivers modern exterior aesthetics and contemporary port standards alongside clear component size constraints.

Technical Specifications

Brand DIYPC
Model DIY-V2-MicroATX
Form Factor Micro-ATX Mini Tower
Motherboard Support Micro-ATX, Mini-ITX
Chassis Materials SPCC Steel, Tempered Glass, ABS Plastic
Dimensions 15.60 x 8.00 x 12.72 in (396 x 203 x 323 mm)
Weight 9.10 lbs (4.13 kg)
Front I/O Ports 1x USB Type-C, 1x USB 3.0 Type-A, 1x HD Audio In/Out
Expansion Slots 4 (Breakout / Punch-Out Covers)
Internal Drive Bays 1x 3.5-inch HDD, 2x 2.5-inch SSD
Maximum GPU Length 280 mm (11.02 in)
Maximum CPU Cooler Height 163 mm (6.42 in)
Maximum PSU Length 140 mm (5.51 in)
Pre Installed Fans 1x 120 mm (Rear Exhaust)
Total Fan Capacity 7x 120 mm (2 Front, 2 Top, 2 Bottom/Shroud, 1 Rear)
Radiator Support 120 mm (Rear)
Dust Filters Top (Magnetic Mesh), Bottom (PSU Intake Mesh)
