Okinos Aqua UNO

Okinos Aqua UNO
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: An ideal choice for builders seeking an affordable, panoramic showpiece micro-ATX case with pre-installed fans, provided component lengths stay under 309 mm for GPUs and 160 mm for power supplies.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.2 / 5.0
Build Quality & Physical Design (20%) 4.1 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
An expansive 270-degree pillarless glass enclosure paired with three pre-installed ARGB fans anchors the 4.2 composite score. Engineering & Architecture (4.2) benefits from a generous 32 mm cable channel depth, dedicated PSU shroud GPU cutouts, and a dual-mode ARGB controller button, tempered by tight 309 mm graphics card and 160 mm power supply constraints. Build quality (4.1) delivers reliable tool-free panel retention and clean glass junction tolerances across its 3.94 kg frame. Thermal management (4.0) relies on top and rear exhaust airflow with comprehensive three-sided dust filtration, though the sealed front glass requires careful fan curve tuning. Long-term reliability (4.4) is supported by durable quick-release ball studs and wear-resistant mechanical front switches. Buyer value (4.3) remains strong thanks to pre-routed lighting and modern USB 3.2 Gen 1 Type-C connectivity, even with drive storage restricted to two total bays.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

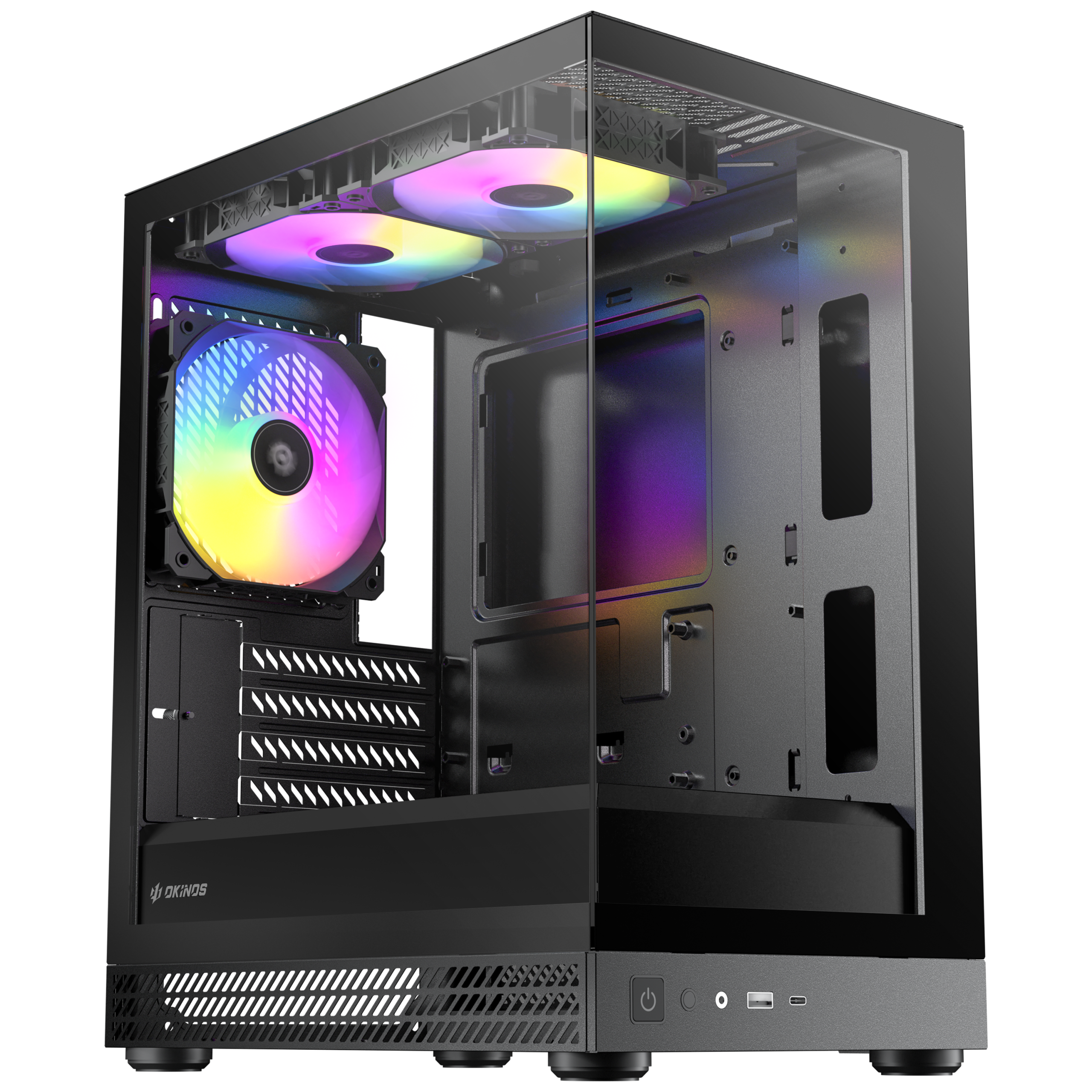

Occupying a compact 315 x 210 x 395 mm footprint on the desk, the chassis integrates a 270-degree pillarless dual-panel tempered glass design that eliminates structural corner posts between the front and left side. Tool-free quick-release retention clips secure the glass sheets, permitting immediate access to the interior chamber while maintaining flush panel alignment across the exterior seams. A net weight of 3.94 kg provides a balanced structural baseline for micro-ATX and mini-ITX system assemblies without excessive desk loading.

Internal layout engineering reserves 32 mm of dedicated clearance behind the motherboard tray, facilitating clean routing for 24-pin and peripheral cables. The lower power supply chamber accommodates units up to 160 mm in length and incorporates a dedicated cable cutout on the upper shroud to route auxiliary PCIe power directly to GPUs measuring up to 309 mm. Front-panel input/output integrates a USB 3.2 Gen 1 Type-C port, a USB 3.0 Type-A port, unified 3.5 mm audio, and a dual-mode LED control button capable of cycling onboard lighting loops or toggling motherboard ARGB synchronization via a prolonged press.

Active air movement is established out of the box via three pre-installed 120 mm ARGB fans arranged across two top exhaust positions and a single rear exhaust port. Removable dust filters positioned at the top, right side panel, and chassis floor mitigate particle buildup across passive intake paths. With four expansion slots, a 165 mm CPU cooler height ceiling, and storage mounting confined to one 3.5-inch drive and one 2.5-inch drive, the enclosure prioritizes streamlined, aesthetically driven compact builds over dense multi-drive workstation arrays.

Technical Specifications

Brand Okinos
Model Aqua UNO
Form Factor Mini Tower
Motherboard Support Micro-ATX, Mini-ITX
Chassis Dimensions 315 x 210 x 395 mm (D x W x H)
Chassis Weight 3.94 kg
Panel Design 270-degree pillarless tempered glass (front and left side), tool-free quick-release
Expansion Slots 4
Drive Bays 1x 3.5-inch internal, 1x 2.5-inch internal
Max Gpu Length 309 mm
Max Cpu Cooler Height 165 mm
Max Psu Length 160 mm
Cable Management Clearance 32 mm
Pre Installed Fans 3x 120 mm ARGB fans (2x top, 1x rear)
Dust Filtration Top, right side, and bottom detachable filters
Front Io Ports 1x USB 3.2 Gen 1 Type-C, 1x USB 3.0 Type-A, 3.5 mm audio jack, Power, LED control button (long press motherboard sync)
✔ Pros
  • Pillarless 270-degree dual tempered glass panels with tool-free quick-release retention
  • Generous 32 mm rear cable routing depth with dedicated GPU power pass-through shroud cutout
  • Includes three pre-installed 120 mm ARGB fans and front USB 3.2 Gen 1 Type-C connectivity
  • Detachable dust filtration across top, right side panel, and floor intake vents
✖ Cons
  • Maximum graphics card clearance is constrained to 309 mm
  • Storage expansion is limited to a single 3.5-inch bay and one 2.5-inch bay
  • Chassis accommodates only Micro-ATX and Mini-ITX motherboards across 4 expansion slots
📋
