ACEMAGICIAN S3A Review: Triple-Display Modular Desktop Density

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: The ACEMAGICIAN S3A is a compelling compact desktop choice for productivity-focused users who require multi-monitor 4K display routing and future-proof memory and storage expandability.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.2 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.7 / 5.0
Score Rationale
Exceptional modular upgradeability and accessible dual-channel memory expansion anchor the overall 4.4 rating, delivering rare lifecycle flexibility in a miniature form factor. Buyer value (4.7) stands as the primary highlight, supported by dual-channel DDR5 expandability up to 64GB and standard M.2 2280 NVMe scaling up to 4TB. Engineering & Architecture (4.4) demonstrates balanced controller integration with triple 4K display pipelines across HDMI, DisplayPort, and USB Type-C alongside a 2.5Gbps Ethernet interface. Thermal management and acoustic profile (4.3) remain controlled, maintaining acoustic emissions at 35 dB under load across user-selectable 35W and 45W operating envelopes. Reliability (4.4) benefits from established AMD mobile architecture and stable multi-bus controller dispatch, while Build quality (4.2) offers a functional compact chassis with structured port cutouts and integrated multi-mode lighting.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Triple 4K display output routing across HDMI, DisplayPort, and USB Type-C
  • Extensive internal expansion supporting up to 64GB DDR5 RAM and 4TB M.2 NVMe SSD
  • Controlled acoustic profile registering 35 dB under full system load
  • High-throughput networking via 2.5 Gbps Ethernet and Wi-Fi 6
✖ Cons
  • Mobile processor architecture is non-socketed and capped at a 45W operating envelope
  • Integrated graphics architecture relies entirely on shared system memory rather than dedicated VRAM

Overview

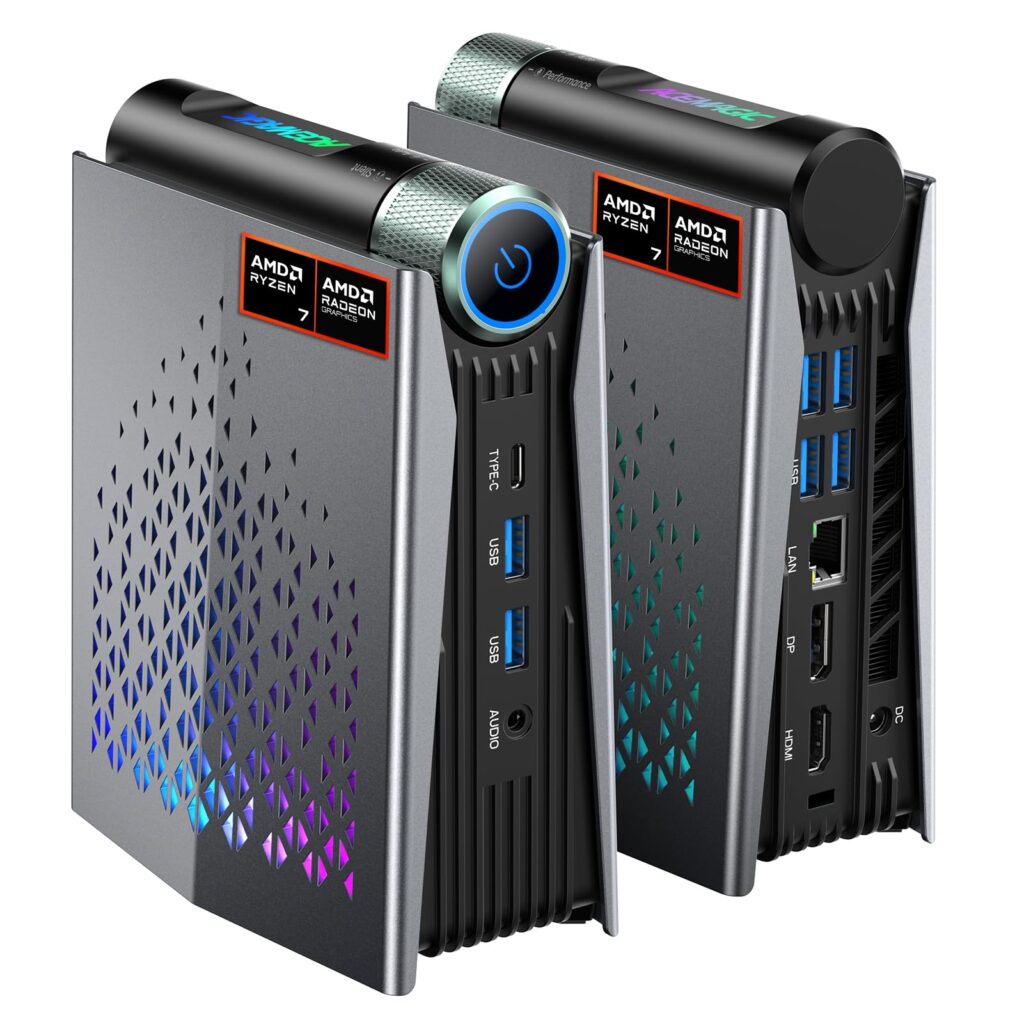

Silicon power distribution and multi-bus display multiplexing define the physical and architectural baseline of the ACEMAGICIAN S3A. Anchored by an AMD Ryzen 7 processor featuring up to 8 cores, 16 threads, and peak boost clocks reaching 4.9 GHz, the platform pairs with integrated AMD Radeon 780M graphics to drive up to three concurrent 4K displays through dedicated HDMI, DisplayPort, and USB Type-C channels. Peripheral bandwidth is distributed across six USB ports, a 2.5 Gbps Ethernet controller, Wi-Fi 6, and Bluetooth 5.2, creating a dense workstation interconnect array within a compact desktop footprint.

Thermal management and acoustic behavior are governed by selectable power stages, including a 35W Silent Mode and a 45W Auto Mode to modulate performance against power dissipation. Sustained operation yields a constrained acoustic profile of 35 dB under load, preventing high-frequency acoustic intrusion in desktop environments. Internal chassis access allows dual-channel memory expansion up to 64GB DDR5 at 4800MHz alongside an M.2 2280 NVMe PCIe SSD slot scalable up to 4TB, ensuring straightforward component servicing without proprietary lock-in.

Operating under Windows 11 Pro, firmware control establishes steady transitions across power states while maintaining display synchronization and peripheral link integrity. The integration of configurable RGB accents provides aesthetic customization, but the system’s primary practical value centers on its combination of low-noise operation, dual-mode power regulation, and modular storage and memory pathways.

Technical Specifications

Brand ACEMAGICIAN
Model S3A
Form Factor Mini PC
Processor AMD Ryzen 7 (up to 8 cores, 16 threads, up to 4.9 GHz)
Graphics AMD Radeon 780M Graphics
Memory 16GB / 32GB DDR5 / LPDDR5 (dual-channel, expandable up to 64GB, 4800MHz)
Storage 512GB / 1TB M.2 2280 NVMe PCIe SSD (expandable up to 4TB)
Display Output Triple 4K display support (HDMI, DisplayPort, USB Type-C)
Networking 2.5 Gbps Ethernet LAN, Wi-Fi 6, Bluetooth 5.2
I/O Ports 6 x USB ports (including USB Type-C), 1 x HDMI, 1 x DisplayPort, 1 x 2.5G RJ45 LAN
Operating Profiles Silent Mode (35W), Auto Mode (45W)
Acoustics Under Load 35 dB
Chassis Lighting Configurable RGB lighting (3 modes)
Operating System Windows 11 Pro
📋
