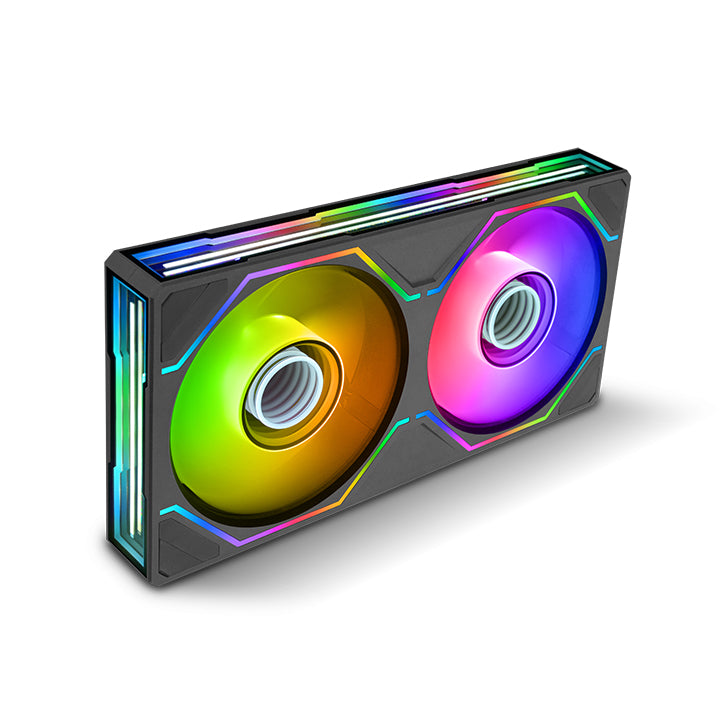

Thermaltake Swafan Unify ARGB Sync

Overview

The Thermaltake Swafan Unify ARGB Sync introduces a streamlined thermal architecture centered on a unified multi-fan chassis available in 240mm and 360mm footprints. By consolidating multiple fan housings into a single structural module, the design eliminates inter-fan cabling gaps and reduces mounting hardware complexity down to four primary corner anchor points. The standout mechanical feature is Thermaltake’s interchangeable blade system, packaging both standard and reverse fan blades to preserve intake and exhaust aesthetics without exposing the rear motor struts. Both blade configurations rotate along a 500 to 2000 RPM range governed via pulse-width modulation (PWM), backed by integrated dual Infinity Mirror addressable RGB rings compatible with major motherboard lighting ecosystems.

From a thermodynamic and acoustic standpoint, the fan frame measures 28 mm in depth—3 mm thicker than standard 25 mm case fans—granting the rotor assembly greater blade surface area and pitch. On standard blades, the assembly generates up to 58.13 CFM of airflow and 2.86 mmH2O of static pressure at a peak acoustic output of 30 dBA. When swapped to reverse blades for clean intake orientation, static pressure and airflow see a mild reduction to 2.23 mmH2O and 56.15 CFM, accompanied by a slight acoustic increase to 32 dBA. The rigid frame structure is bolstered by integrated rubber corner pads that conceal screw heads while isolating harmonic chassis vibrations, resulting in a cohesive, low-resonance cooling solution for modern radiator and chassis applications.

Technical Specifications
