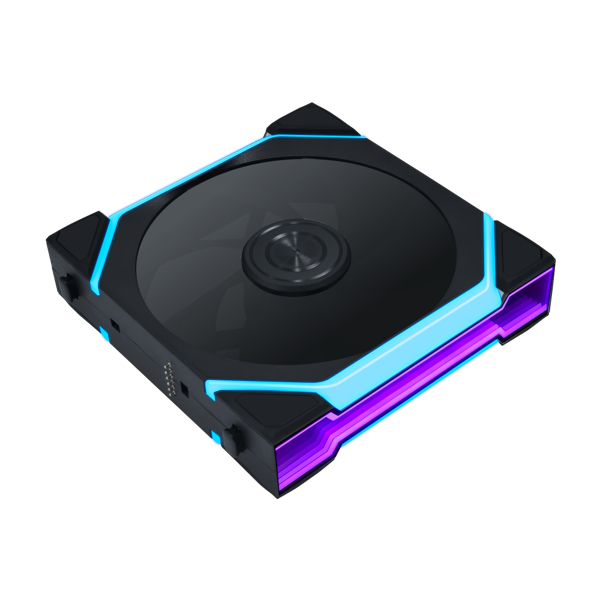

Lian Li UNI Fan SL Flex 120mm

Lian Li UNI Fan SL Flex 120mm
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: The Lian Li UNI Fan SL Flex 120mm is an exceptional cooling solution for builders seeking hybrid wireless-or-PWM control and high static pressure, provided their case accommodates the 28mm depth.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.0 / 5.0
Score Rationale
The composite score of 4.3 reflects sophisticated engineering (4.5) highlighted by the versatile hybrid FLEX receiver and backward wireless ecosystem compatibility. Build quality (4.3) is evident in its rigid PBT chassis and precise fluid dynamic bearing, tempered slightly by a bulkier 28mm frame footprint. Thermal and acoustic performance (4.3) delivers effective static pressure up to 2.5 mmH2O alongside a versatile 0-to-2000 RPM range peaking at 29 to 31 dBA. Reliability (4.4) is anchored by a wear-resistant FDB assembly and a 36-month warranty, while buyer value (4.0) balances advanced modular utility against the omission of the wireless controller in single-pack units.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

The Lian Li UNI Fan SL Flex 120mm represents an evolution in modular cooling architecture, engineered around a rigid polybutylene terephthalate (PBT) frame and a precision Fluid Dynamic Bearing (FDB). Designed to streamline chassis cable management, the fan incorporates the proprietary FLEX Receiver, which provides hybrid control flexibility by interfacing either directly with standard motherboard 5V 3-pin ARGB and PWM headers or wirelessly synchronizing via the L-Connect 3 ecosystem. Its expanded 28mm frame profile integrates 52 individually addressable RGB LEDs while offering both standard and reverse blade configurations, enabling clean intake airflow pathways without exposing rear structural struts.

Thermally and acoustically, the SL Flex 120mm delivers 66.5 CFM of airflow with a peak static pressure of 2.5 mmH2O on standard blades (65 CFM and 2.13 mmH2O on reverse blades), ensuring reliable performance through restrictive radiators and high-density dust filters. Acoustic management is anchored by an operating window that scales from a true zero-RPM silent idle state up to 2000 RPM under heavy thermal loads, keeping noise profiles within a 29 to 31 dBA range. While the non-standard 28mm thickness requires builders to verify clearance around tight radiator mounts and motherboard heatsinks, backward compatibility with existing SL and CL wireless units and a 36-month warranty make it a dependable high-performance solution.

Technical Specifications

Brand Lian Li
Model UNI Fan SL Flex 120mm
Dimensions 120 x 124.5 x 28 mm
Frame Material PBT
Bearing Type Fluid Dynamic Bearing (FDB)
Fan Speed 0, 350 - 2000 RPM
Airflow 66.5 CFM (Standard Blade) / 65 CFM (Reverse Blade)
Static Pressure 2.5 mmH2O (Standard Blade) / 2.13 mmH2O (Reverse Blade)
Acoustic Noise 29 dBA (Standard Blade) / 31 dBA (Reverse Blade)
Operating Voltage DC 5V - DC 12V
Input Power 7.45 W
LED Count 52
Blade Configurations Standard Blade, Reverse Blade
Included Accessories FLEX Receiver, 5V 3-Pin ARGB Cable
Warranty 36 months
✔ Pros
  • Hybrid FLEX Receiver enables operation via motherboard PWM/ARGB headers or wireless L-Connect 3 sync
  • Fluid Dynamic Bearing supports true 0 RPM silent idle up to 2000 RPM peak performance
  • High-density 52-LED illumination with backward compatibility across SL and CL wireless ecosystems
  • Available in both standard and reverse blade orientations for optimized intake presentation
✖ Cons
  • Expanded 28mm frame thickness demands more clearance than standard 25mm fan slots
  • Single-fan standalone package does not include the wireless controller
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Newegg
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Case Fans

Compare Other Models →

At a Glance

How reliable is the Lian Li UNI Fan SL Flex 120mm according to Mizex audits?
Mizex Composite Score: 4.3 / 5.0 ▲ DOCUMENTED QUIRKS

The Lian Li UNI Fan SL Flex 120mm is an exceptional cooling solution for builders seeking hybrid wireless-or-PWM control and high static pressure, provided their case accommodates the 28mm depth.

What are the known quirks or drawbacks of the Lian Li UNI Fan SL Flex 120mm?

Our reliability audit identified the following documented caveats:

  • Expanded 28mm frame thickness demands more clearance than standard 25mm fan slots
  • Single-fan standalone package does not include the wireless controller
What are the key engineering highlights of the Lian Li UNI Fan SL Flex 120mm?

The top strengths recorded in our evaluation include:

  • Hybrid FLEX Receiver enables operation via motherboard PWM/ARGB headers or wireless L-Connect 3 sync
  • Fluid Dynamic Bearing supports true 0 RPM silent idle up to 2000 RPM peak performance
  • High-density 52-LED illumination with backward compatibility across SL and CL wireless ecosystems
  • Available in both standard and reverse blade orientations for optimized intake presentation
