Overview

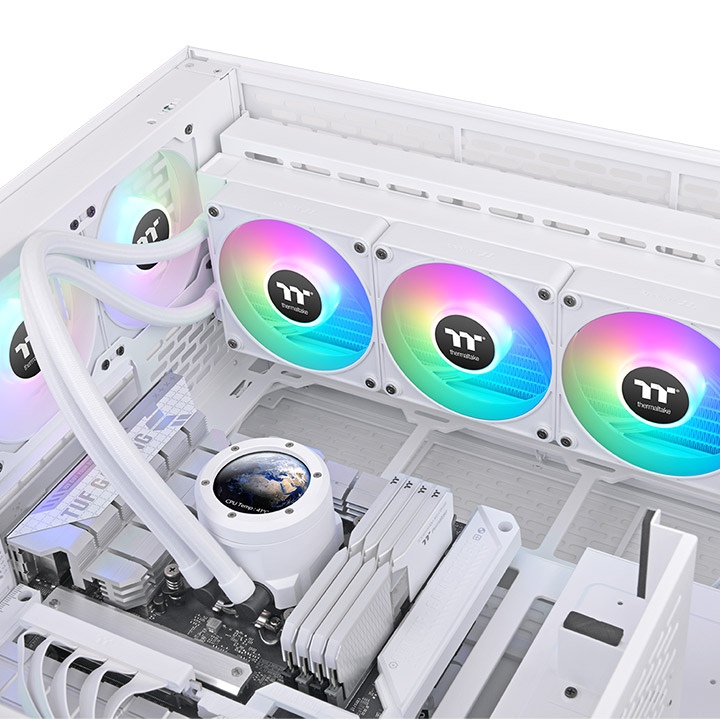

The Thermaltake Swafan 360 Unify ARGB Sync consolidates three 120mm cooling fans into a single, continuous 360mm unified chassis. This integrated frame architecture drastically cuts down on mounting hardware and internal cable clutter, routing power and lighting through a streamlined interface rather than redundant daisy-chained leads. Structurally, the assembly utilizes a reinforced 28mm-thick composite frame fitted with vibration-damping corner rubber pads engineered to conceal installation screws for a flush, seamless look across radiator and chassis mounts.
At the core of the Swafan Unify’s functional flexibility is its swappable rotor system, bundling both standard and reverse impeller sets to maintain clean forward-facing dual Infinity Mirror aesthetics regardless of airflow direction. Operating across a broad 500 to 2000 RPM range via 4-pin PWM control, the standard blades generate up to 58.13 CFM of airflow with 2.86 mmH2O static pressure at an acoustic ceiling of 30 dBA. In reverse configuration, the blades produce 56.15 CFM and 2.23 mmH2O at a slightly louder 32 dBA. Both inner static white rings and outer addressable RGB zones sync directly through major motherboard lighting protocols, eliminating the necessity for proprietary software controllers.
In practical deployment, the Swafan 360 Unify delivers an exceptionally tidy build experience and simplifies routine maintenance, as the detachable blades can be popped out and cleaned under running water without dismounting the entire frame. Builders must account for the 28mm depth, which exceeds conventional 25mm fan clearances and may introduce tight clearances around thick liquid cooling radiators or compact chassis front panels.
Technical Specifications
| Frame Dimensions | 360mm unified frame (3 x 120mm) |
| Frame Thickness | 28 mm |
| Fan Speed | 500–2000 RPM |
| Control Interface | 4-pin PWM |
| Blade Architecture | Interchangeable standard and reverse rotor sets |
| Standard Blade Airflow | 58.13 CFM |
| Standard Blade Static Pressure | 2.86 mmH2O |
| Standard Blade Noise | 30 dBA |
| Reverse Blade Airflow | 56.15 CFM |
| Reverse Blade Static Pressure | 2.23 mmH2O |
| Reverse Blade Noise | 32 dBA |
| Lighting Zones | Dual Infinity Mirror (inner white ring, outer addressable RGB ring) |
| Lighting Compatibility | ASUS Aura Sync, MSI Mystic Light Sync, GIGABYTE RGB Fusion, ASRock Polychrome |
| Mounting System | Four-corner screw installation with screw-concealing anti-vibration rubber pads |
| Model Number | CL-F249-PL12SW-A |
- Unified 360mm single-frame structure drastically simplifies installation and eliminates multi-fan cable clutter
- Included interchangeable standard and reverse blades maintain uniform aesthetics across both intake and exhaust configurations
- Direct motherboard ARGB sync eliminates the need for proprietary controller boxes or software bloat
- Corner anti-vibration rubber pads cleanly conceal mounting screws for a sleek, finished appearance
- Thicker 28mm profile exceeds standard 25mm fan depth and may pose clearance challenges in compact chassis
- Reverse blade set exhibits slightly reduced static pressure (2.23 mmH2O vs 2.86 mmH2O) and a higher noise floor (32 dBA vs 30 dBA)
