Thermalright TL-UC36 Review: High Static Pressure Unified Framing

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: An effective cooling solution for 360 mm radiators that significantly simplifies cable routing with unified framing, though custom PWM curve tuning is required to tame 34.59 dBA acoustic levels at full speed.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
High static pressure delivery coupled with a clean, single-frame cable footprint anchors the composite rating of 4.3. Engineering & Architecture (4.4) benefits from non-proprietary 4-pin PWM and 3-pin 5V ARGB wiring paired with an efficient 0.6 A aggregate power draw. Build quality (4.3) demonstrates solid structural rigidity across the 360 mm unified housing, eliminating inter-fan frame flex. Thermal management and acoustic performance (4.0) delivers an impressive 2.55 mm H2O of static pressure and high airflow volume, though acoustic output climbs to a noticeable 34.59 dBA at its 2400 RPM peak. Reliability (4.5) is reinforced by S-FDB V2 fluid dynamic bearings designed for consistent shaft stabilization across horizontal and vertical orientations, while buyer value (4.3) balances simplified radiator installation against the inability to service individual fan rotors separately.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Integrated 360 mm unibody frame streamlines radiator installation and eliminates cable clutter
  • Stout 2.55 mm H2O static pressure ensures effective airflow through dense liquid cooling radiators
  • S-FDB V2 fluid dynamic bearings maintain stable rotation in both horizontal and vertical mounting orientations
  • Standard 4-pin PWM and 3-pin 5V ARGB connectors integrate directly without proprietary controller hubs
✖ Cons
  • Peak acoustic output reaches 34.59 dBA at maximum 2400 RPM rotational speed
  • Unified single-frame construction precludes modular replacement of individual fan rotors

Overview

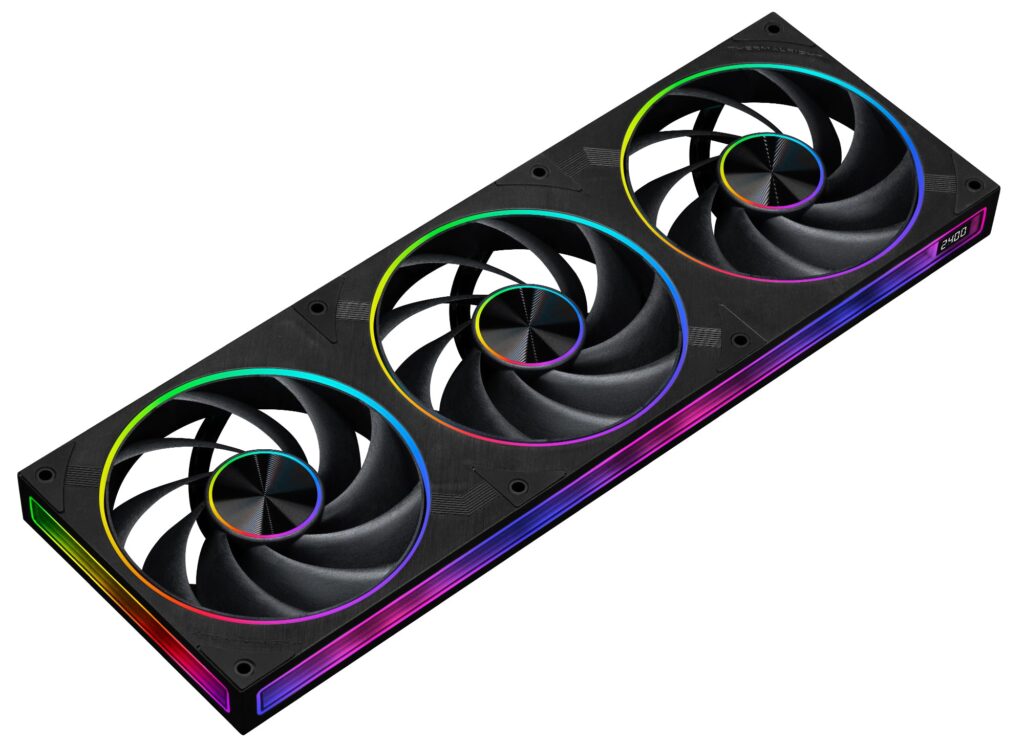

Consolidating three 120 mm cooling fans into an integrated 360 mm structural array fundamentally streamlines radiator mounting and cable management for performance desktop builds. By unifying the frame into a single 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm) chassis, the assembly eliminates inter-fan seams, minimizes chassis vibration, and provides uniform structural rigidity along liquid-cooling radiator channels. Power delivery and lighting run through standard 4-pin PWM and 3-pin 5V addressable RGB headers with an aggregate 0.6 A rated current, avoiding proprietary controller lock-in while keeping cable clutter to a minimum.

Aerodynamic performance is heavily focused on pushing air through dense fin stacks, generating up to 2.55 mm H2O of static pressure alongside an airflow volume of 78.56 CFM per fan segment. Core rotation is anchored by Thermalright’s S-FDB V2 fluid dynamic bearings, which maintain hydrodynamic lubrication films under both horizontal and vertical orientations to prevent bearing rattle over prolonged operation. Operating across a wide PWM band up to 2400 RPM, acoustic output reaches 34.59 dBA at full load, making proper PWM fan curve tuning essential to balance whisper-quiet daily operation against aggressive thermal cooling spikes.

In practical workstation and gaming PC environments, the monolithic housing dramatically accelerates installation and provides a clean, cohesive front or top-radiator appearance. The primary trade-off rests in its unified physical footprint: a mechanical failure on any individual rotor necessitates servicing or replacing the complete triple-fan module. For builders requiring strong air penetration through water-cooling radiators with minimal wiring overhead, the unit offers a focused, high-pressure airflow architecture.

Technical Specifications

Brand Thermalright
Model TL-UC36
Dimensions 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm)
Maximum Fan Speed 2400 RPM ± 10%
Maximum Airflow 78.56 CFM per fan (3x array)
Maximum Static Pressure 2.55 mm H2O
Peak Acoustic Noise 34.59 dBA
Rated Current 0.6 A
Power Connector 4-Pin PWM
RGB Connector 3-Pin 5V ARGB
Bearing Type S-FDB V2 Fluid Dynamic Bearing
📋
