Overview

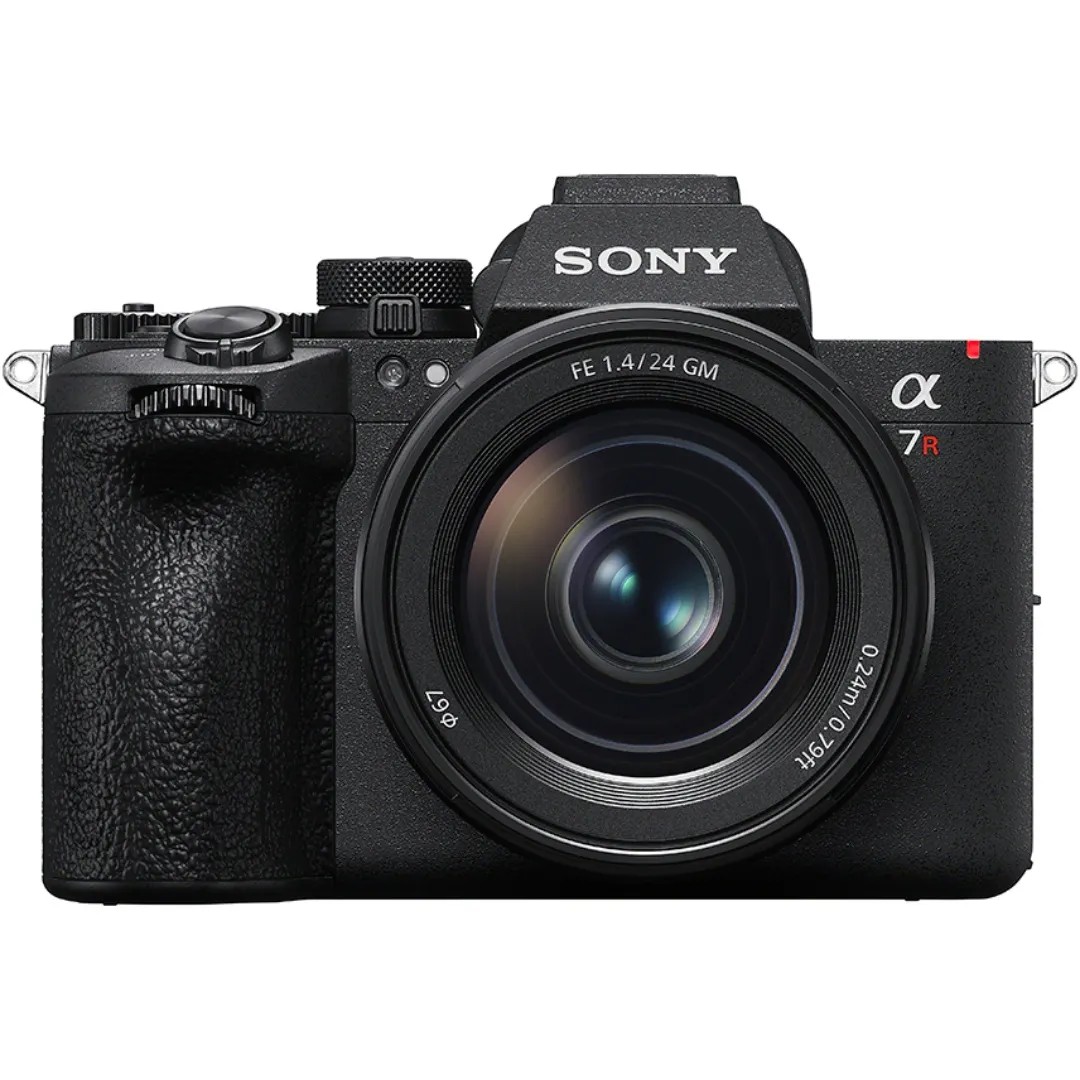

Transitioning high-resolution studio imaging to high-speed readout, Sony pairs a 66.8-megapixel fully-stacked Exmor RS BSI CMOS sensor with the BIONZ XR2 processing pipeline and a dedicated AI coprocessor. The stacked architecture routes high-bandwidth pixel data through integrated memory layers, reducing readout lag to negligible levels and enabling full-resolution 30 frames per second burst capture with continuous autofocus and auto-exposure. An updated 5-axis in-body image stabilization mechanism provides up to 8.5 stops of corrective compensation, steadying handheld captures across expansive focal lengths. The hybrid dual-slot storage architecture supports both CFexpress Type A and UHS-II SD cards across both bays, accommodating high-throughput 8K 30p and uncropped 4K 120p video streams without bottle-necking primary system memory.
Structural integrity relies on a high-rigidity magnesium alloy unibody housing engineered with deep seam interlocking and rubberized weather gaskets across every dial, button, and interface terminal. Heat management operates via an internal graphite dissipation bridge that channels thermal energy away from the floating sensor cradle into the rear magnesium frame, preserving quiet passive operation during extended video recording without internal cooling fans. The optical path integrates a 9.44 million-dot Quad-XGA OLED electronic viewfinder operating at 120 Hz alongside a versatile 4-axis multi-angle touchscreen display. With an established firmware architecture supporting deep subject classification algorithms and a mechanical shutter assembly rated for 500,000 cycles, the platform delivers exceptional operational resilience in demanding professional environments.
Technical Specifications
| Brand | Sony |
| Model | Alpha a7R VI |
| Sensor Type | 35.7 x 23.8 mm Full-Frame Exmor RS Stacked BSI CMOS |
| Effective Resolution | 66.8 Megapixels (9984 x 6656) |
| Image Processor | Dual BIONZ XR2 with Dedicated AI Processing Unit |
| In Body Image Stabilization | 5-axis sensor-shift (up to 8.5 stops compensation) |
| Continuous Shooting Speed | Up to 30 fps (electronic shutter), 10 fps (mechanical shutter) |
| Shutter Speed Range | 1/8000 to 30 s (mechanical), 1/32000 to 30 s (electronic) |
| Shutter Durability Rating | 500,000 actuations |
| Autofocus System | Fast Hybrid AF with AI Real-Time Recognition AF+ |
| Electronic Viewfinder | 0.64-type 9.44M-dot Quad-XGA OLED (0.90x magnification, 120 Hz) |
| Rear Display | 3.2-inch 2.1M-dot 4-axis multi-angle touchscreen LCD |
| Video Recording | 8K 30p (oversampled from 8.2K), 4K 120p / 60p 10-bit 4:2:2 internal |
| Storage Media | Dual slots (CFexpress Type A / SD UHS-II compatible) |
| Connectivity | USB-C 3.2 Gen 2 (10 Gbps) with USB-PD, Full-Size HDMI Type-A, 3.5mm Mic, 3.5mm Headphone, PC Sync |
| Wireless | Wi-Fi 6E (2x2 MIMO 802.11ax), Bluetooth 5.3 |
| Battery Type | Sony NP-FZ100 rechargeable lithium-ion |
| Chassis Material | Magnesium alloy unibody with weather-sealed gaskets |
| Dimensions | 131.3 x 96.9 x 82.2 mm |
| Weight | 713 g (with battery and memory card) |
- 66.8 MP stacked Exmor RS sensor delivers rapid readout speeds virtually eliminating rolling shutter while enabling 30 fps continuous shooting
- Upgraded 5-axis IBIS provides up to 8.5 stops of stabilization compensation for handheld shooting in low light
- Class-leading 9.44M-dot Quad-XGA OLED EVF with 120 Hz refresh rate and 0.90x magnification
- Rugged magnesium alloy construction with extensive weather sealing and dual CFexpress Type A / SD UHS-II slots
- CFexpress Type A cards command a significant price premium per gigabyte compared to Type B alternatives
- Extended high-bitrate 8K 30p capture generates noticeable localized heat on the rear magnesium housing
Primary Sources & Audited Citations
Recommended Alternatives in Cameras & Photography
At a Glance
How reliable is the Sony Alpha a7R VI Review: Stacked Sensor Resolution Without Compromise according to Mizex audits?
Ideal for commercial, landscape, and action photographers requiring uncompromising 66.8 MP detail alongside blackout-free 30 fps burst shooting, provided the budget accommodates premium CFexpress Type A media.
What are the known quirks or drawbacks of the Sony Alpha a7R VI Review: Stacked Sensor Resolution Without Compromise?
Our reliability audit identified the following documented caveats:
- CFexpress Type A cards command a significant price premium per gigabyte compared to Type B alternatives
- Extended high-bitrate 8K 30p capture generates noticeable localized heat on the rear magnesium housing
What are the key engineering highlights of the Sony Alpha a7R VI Review: Stacked Sensor Resolution Without Compromise?
The top strengths recorded in our evaluation include:
- 66.8 MP stacked Exmor RS sensor delivers rapid readout speeds virtually eliminating rolling shutter while enabling 30 fps continuous shooting
- Upgraded 5-axis IBIS provides up to 8.5 stops of stabilization compensation for handheld shooting in low light
- Class-leading 9.44M-dot Quad-XGA OLED EVF with 120 Hz refresh rate and 0.90x magnification
- Rugged magnesium alloy construction with extensive weather sealing and dual CFexpress Type A / SD UHS-II slots
