Overview

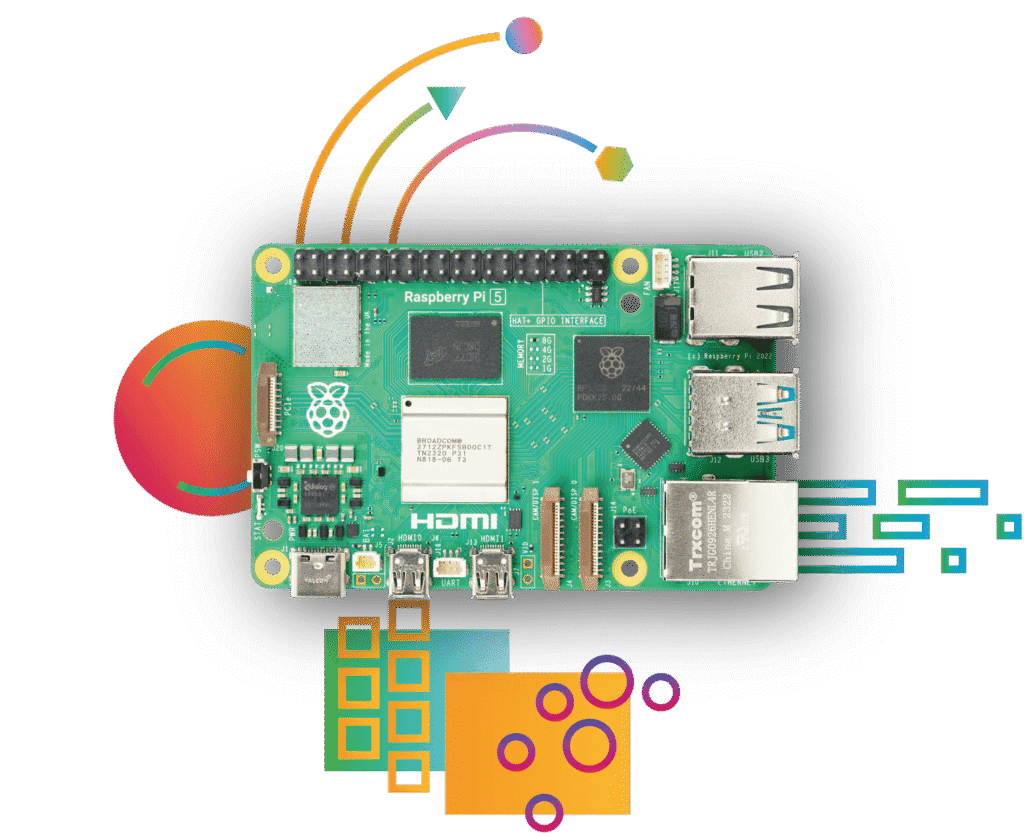

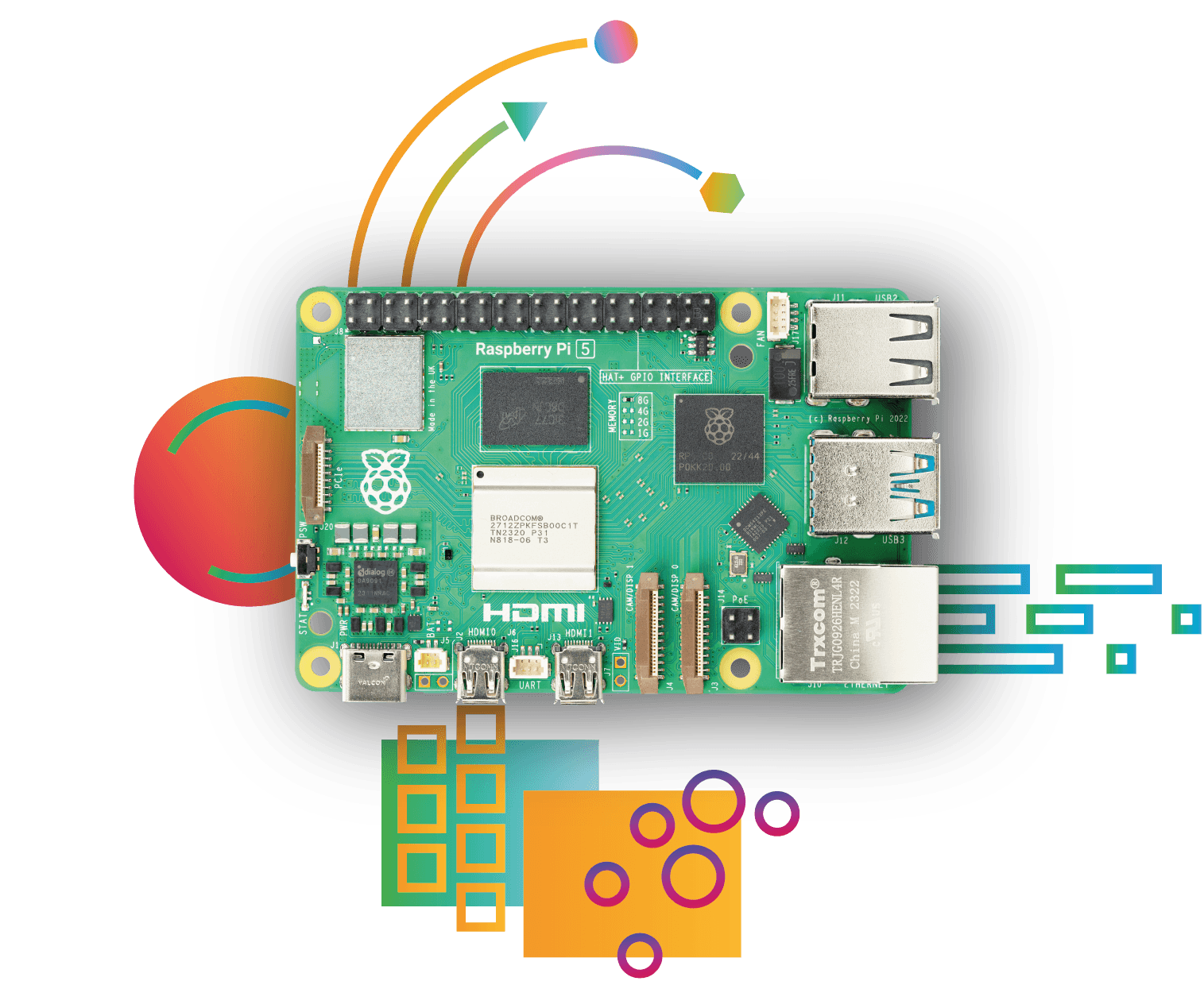

The Raspberry Pi 5 2GB represents a refined execution of the standard-setting single-board computer platform, leveraging an optimized Broadcom BCM2712 silicon revision that reduces idle power draw and streamlines thermal efficiency without compromising compute capacity. At its core, the platform integrates a quad-core Arm Cortex-A76 cluster clocked at 2.4GHz alongside an upgraded 800MHz VideoCore VII graphics architecture supporting dual 4Kp60 displays and hardware-accelerated HEVC decoding. The system architecture delegates high-speed peripheral I/O to a dedicated secondary silicon package, organizing power distribution and signal routing across a rigid multi-layer FR-4 printed circuit board with precise surface-mount component tolerances.
Operating in bare-board configurations, the device maintains completely silent, passive baseline operation, though the dense Cortex-A76 microarchitecture demands adequate case ventilation or active heatsink cooling to sustain peak clock speeds under extended multi-core workloads. Power input is handled via an upgraded USB-C Power Delivery interface, delivering stable power rails across connected expansion headers and high-throughput USB 3.0 ports. Supported by Raspberry Pi’s mature mainline Linux kernel cadence and comprehensive software ecosystem, the 2GB model serves as a remarkably dependable, cost-effective engine for dedicated edge compute, automation controllers, and lightweight appliance infrastructure.
Technical Specifications
| Brand | Raspberry Pi |
| Model | 5 2GB |
| Processor | Broadcom BCM2712 Quad-core Arm Cortex-A76 @ 2.4GHz |
| CPU Architecture | 64-bit Armv8-A |
| CPU Core Count | 4 |
| Cache | 512KB L2 per core, 2MB shared L3 |
| Graphics | VideoCore VII @ 800MHz |
| System Memory | 2GB LPDDR4X-4267 SDRAM |
| Display Output | Dual micro-HDMI (up to 4Kp60 simultaneous) |
| Video Decode | 4Kp60 HEVC |
| Wireless Connectivity | Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE |
| Ethernet | Gigabit Ethernet (1000BASE-T) |
| USB Connectivity | 2x USB 3.0 (5Gbps), 2x USB 2.0 |
| Expansion Interface | Standard 40-pin GPIO header, PCIe 2.0 x1 interface |
| Power Delivery | USB-C PD (5V/5A recommended) |
- 2x to 3x CPU performance uplift over the previous generation via modern Arm Cortex-A76 cores
- Refined silicon revision with improved power efficiency and reduced thermal dissipation
- Dual 4Kp60 display capability powered by the upgraded VideoCore VII graphics engine
- Industry-leading long-term firmware and mainline Linux operating system support
- 2GB memory ceiling limits intensive multitasking and heavy containerized workloads
- Requires auxiliary active or passive cooling accessories to avoid thermal throttling under peak compute loads
Primary Sources & Audited Citations
Recommended Alternatives in Single Board Computers (SBCs)
At a Glance
How reliable is the Raspberry Pi 5 2GB according to Mizex audits?
An exceptionally dependable and power-efficient single-board computer ideal for headless servers, appliances, and edge tasks where 2GB of memory is sufficient.
What are the known quirks or drawbacks of the Raspberry Pi 5 2GB?
Our engineering teardown identified the following documented caveats:
- 2GB memory ceiling limits intensive multitasking and heavy containerized workloads
- Requires auxiliary active or passive cooling accessories to avoid thermal throttling under peak compute loads
What are the key engineering highlights of the Raspberry Pi 5 2GB?
The top strengths recorded in our teardown include:
- 2x to 3x CPU performance uplift over the previous generation via modern Arm Cortex-A76 cores
- Refined silicon revision with improved power efficiency and reduced thermal dissipation
- Dual 4Kp60 display capability powered by the upgraded VideoCore VII graphics engine
- Industry-leading long-term firmware and mainline Linux operating system support
