Overview
Silicon implementation centers on NVIDIA’s Ampere architecture, packing 3,584 CUDA cores clocked up to a factory-boosted 1807 MHz. Paired with a 192-bit bus, the 12 GB GDDR6 memory subsystem provides ample frame buffer capacity for memory-intensive textures, modern rendering pipelines, and parallel compute tasks. Communication over the PCI Express 4.0 bus delivers robust host-to-device throughput, while external video connectivity is handled through a versatile quad-display array comprising three DisplayPort 1.4a outputs and one HDMI 2.1 port capable of driving 4K resolution at 120Hz.

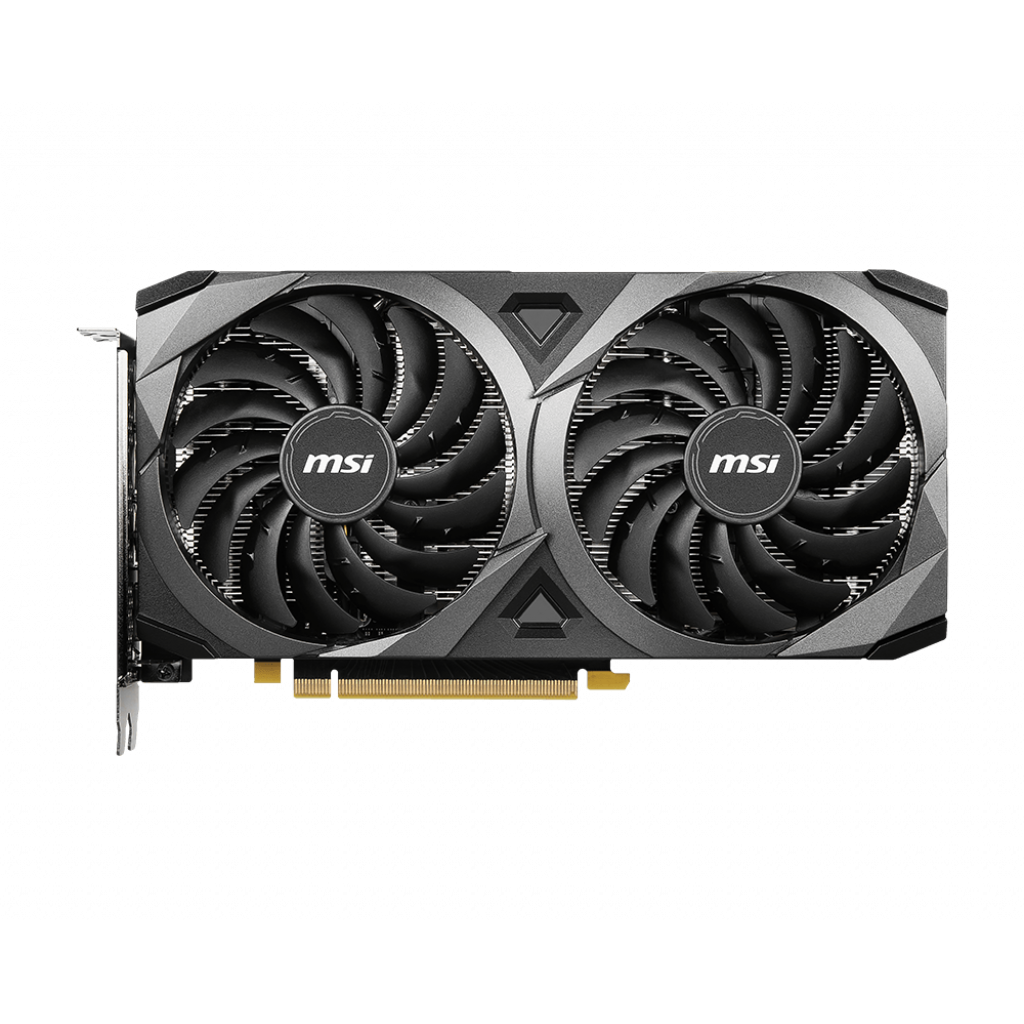

Thermal dissipation and mechanical rigidity are addressed via a dual-fan assembly incorporating MSI’s TORX Fan 3.0 configuration. The impeller design combines traditional fan blades for concentrated downward airflow with dispersion blades designed to accelerate intake into the underlying heatsink fin stack. In practical assembly, the compact dual-slot form factor ensures broad compatibility across both micro-ATX and standard mid-tower chassis without exerting excessive mechanical strain on the host motherboard’s PCIe slot. Firmware and driver support are governed through mature NVIDIA Game Ready and Studio driver releases, providing steady thermal management, consistent fan curve response, and dependable operational stability.
Technical Specifications
| Brand | MSI |
| Model | GeForce RTX 3060 Ventus 2X 12G OC V1 |
| GPU | NVIDIA GeForce RTX 3060 |
| Architecture | NVIDIA Ampere |
| CUDA Cores | 3584 |
| Boost Clock | 1807 MHz |
| Memory Capacity | 12 GB |
| Memory Type | GDDR6 |
| Memory Interface | 192-bit |
| Bus Interface | PCI Express 4.0 |
| Display Outputs | 3x DisplayPort 1.4a, 1x HDMI 2.1 |
| Cooling Design | Dual Fan Thermal Design with TORX Fan 3.0 |
- Substantial 12 GB GDDR6 memory allocation on a 192-bit interface provides superior VRAM headroom
- Factory-overclocked boost clock of 1807 MHz delivers out-of-the-box performance uplift
- TORX Fan 3.0 dual-fan cooling design balances static pressure and downward airflow
- Comprehensive display interface options including three DisplayPort 1.4a ports and one HDMI 2.1 port supporting 4K@120Hz
- Dual-fan cooler offers less heatsink surface area than larger triple-fan implementations
- Sustaining higher factory boost clocks relies on adequate chassis intake airflow in compact enclosures
Primary Sources & Audited Citations
Recommended Alternatives in Graphics Cards (GPUs)
At a Glance
How reliable is the MSI GeForce RTX 3060 Ventus 2X 12G OC V1 according to Mizex audits?
An ideal pick for mid-range builders seeking substantial 12 GB VRAM capacity and compact dual-slot chassis compatibility for modern gaming and creative workflows.
What are the known quirks or drawbacks of the MSI GeForce RTX 3060 Ventus 2X 12G OC V1?
Our reliability audit identified the following documented caveats:
- Dual-fan cooler offers less heatsink surface area than larger triple-fan implementations
- Sustaining higher factory boost clocks relies on adequate chassis intake airflow in compact enclosures
What are the key engineering highlights of the MSI GeForce RTX 3060 Ventus 2X 12G OC V1?
The top strengths recorded in our evaluation include:
- Substantial 12 GB GDDR6 memory allocation on a 192-bit interface provides superior VRAM headroom
- Factory-overclocked boost clock of 1807 MHz delivers out-of-the-box performance uplift
- TORX Fan 3.0 dual-fan cooling design balances static pressure and downward airflow
- Comprehensive display interface options including three DisplayPort 1.4a ports and one HDMI 2.1 port supporting 4K@120Hz
