- High 30 dBm (1 W) RF transmit power with integrated frequency-specific SAW filtering for clean harmonic suppression
- Seamless dual-firmware support for both MeshCore and Meshtastic via Bluetooth Low Energy updates
- Integrated Quectel L76K GNSS positioning, 1.3 in (33.0 mm) display, and navigation joystick on a single board
- Modular dual 18650 battery sled and standard SMA connector for easy cell swapping and external antenna upgrades
- 3D-printed PLA/PETG enclosure lacks native weatherproofing or ingress protection rating for unshielded outdoor exposure
- High 30 dBm transmission generates concentrated thermal output and elevated burst current compared to standard LoRa nodes
Overview
Built around an amplified 30 dBm (~1 W) RF front-end and a Nordic Semiconductor nRF52840 SoC, the GAT562 30S routes LoRa packets through a hardware-level frequency-specific filter to tame harmonic splatter at maximum transmit gain. Pairing the Semtech SX1262 transceiver with a dedicated power amplifier stage places the device in the same high-power operational tier as the RAK WisMesh 1W Booster, but incorporates an onboard Quectel L76K GNSS module with a ceramic patch antenna directly onto the primary PCB. In this V1.1 hardware revision, the integrated RF filter provides essential harmonic suppression for specific operating bands (US915 and EU868), preventing front-end desensitization and ensuring cleaner spectral transmission than previous bare-board iterations.

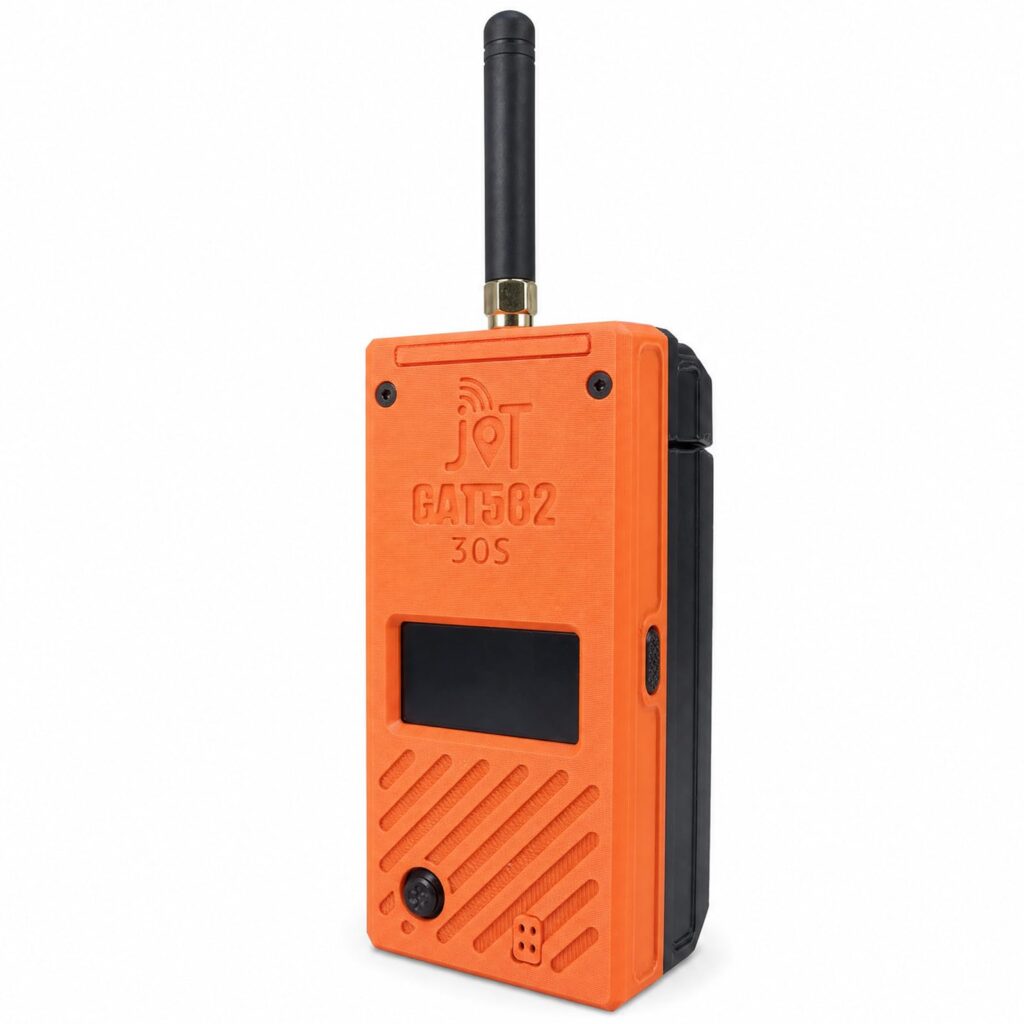

Mechanical housing duties are handled by a modular 3D-printed chassis pairing a PLA front bezel with a PETG rear battery shell. While the 3D-printed construction lacks the tight ingress protection and structural rigidity of an injection-molded enclosure, it accommodates an accessible dual-18650 cell tray that allows instant field replacements without tools or soldering. Direct physical user interaction is mediated through a 1.3 in (33.0 mm) display and an analog navigation joystick, supplemented by an audible buzzer and a status RGB LED for immediate telemetry without needing a connected smartphone. Passive thermal dissipation across the unventilated polymer casing proves sufficient under standard mesh packet pacing, though prolonged 30 dBm beaconing generates concentrated thermal load around the RF amplifier section that necessitates clear ambient airflow when mounted in vehicle cabins or sun-exposed enclosures.
Firmware flexibility serves as a major operational strength, supporting both Meshtastic and MeshCore via Bluetooth Low Energy transitions that bypass destructive command-line reflashing. Real-world validation demonstrates dependable RF stability across demanding topologies, including sustained two-day indoor repeater runs on the 16th floor of a convention center achieving confirmed 30 mi (48.3 km) links, as well as mobile vehicle roof deployments via external magnetic mount antennas. Replacing stock stub antennas with an aftermarket 17 cm (6.69 in) whip drops standing wave ratios to 1.3 SWR from 3.5 SWR, translating to roughly 98% power transmission efficiency into the feedline. For field operators requiring a self-contained, long-range mobile node or ad-hoc repeater, the hardware delivers exceptional RF reach and zero-intervention stability despite its DIY-oriented chassis execution.
Technical Specifications
| Brand | Meshnology |
| Model | GAT562 30S |
| Hardware Revision | V1.1 |
| Microcontroller | Nordic Semiconductor nRF52840 |
| LoRa Transceiver | Semtech SX1262 |
| RF Output Power | 30 dBm (~1 W) |
| RF Filtering | Integrated frequency-specific SAW/RF filter (US915 / EU868) |
| GNSS Module | Quectel L76K with ceramic patch antenna |
| Display | 1.3 in (33.0 mm) display |
| Navigation Controls | Multi-directional joystick |
| Audio / Visual Indicators | Buzzer, RGB status LED |
| Antenna Interface | SMA female |
| Battery Compatibility | Dual 18650 cell sled (cells not included) |
| Enclosure Material | 3D-printed PLA front / PETG rear shell |
| Supported Firmware | Meshtastic, MeshCore (BLE switchable) |
