- High-efficiency Nordic nRF52840 and SX1262 radio pair delivering up to 7.46 mi (12 km) range with 22 dBm output
- Long-lasting 2500 mAh battery enabling approximately 7 days of autonomous runtime
- Factory injection-molded chassis with integrated color TFT display, joystick navigation, and GPS tracking
- Official MeshCore firmware support spanning BLE Companion, Repeater, and Room Server modes
- Community MeshCore-Evo firmware builds require manual parameter tuning for receiver gain and flood advertising
- No onboard Wi-Fi connectivity or native solar charging circuitry
- Display resolution is limited to 128x64 pixels
Overview
Architected around the Nordic nRF52840 SoC and a Semtech SX1262 LoRa transceiver, the hardware delivers 22 dBm transmit power across 868 MHz and 915 MHz frequency bands via an external SMA antenna interface. The 32-bit ARM Cortex-M4F platform operates with 256 KB of RAM and 1 MB of onboard flash, driving an integrated GNSS module for autonomous coordinate acquisition without relying on an external host. Power efficiency remains a primary engineering asset: the circuitry draws 8 mA in idle listening states and peaks at 85 mA during active transmission bursts, allowing the internal 2500 mAh lithium-ion cell to sustain approximately 7 days of continuous field operation via USB-C charging.

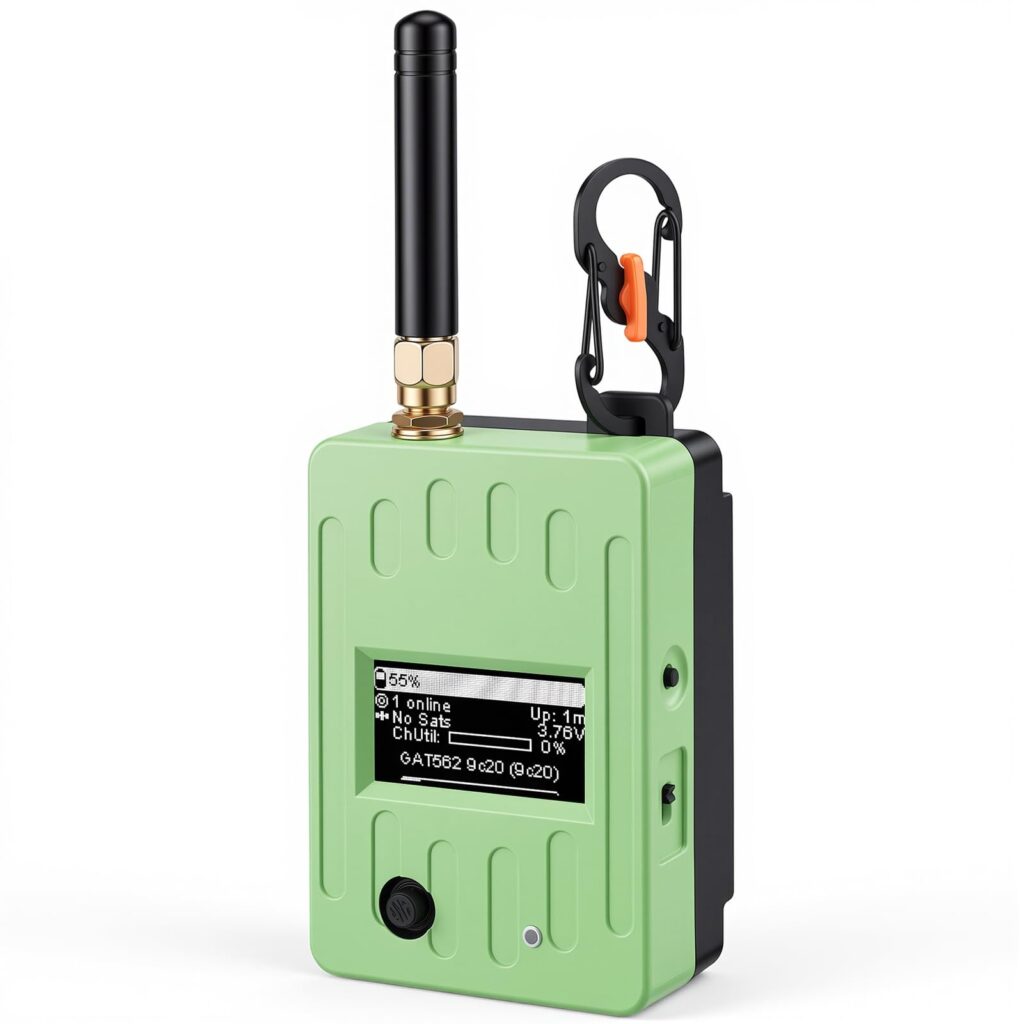

The physical housing measures 3.74 x 2.36 x 0.79 in (95 x 60 x 20 mm) and weighs 4.23 oz (120 g), utilizing a rigid injection-molded enclosure that avoids the structural delamination and mechanical tolerances typical of 3D-printed hobbyist builds. User interaction is handled directly on-device through a 1.3-inch color TFT display at 128×64 resolution, navigated by an analog joystick, two tactile push buttons, status LEDs, and an integrated piezo buzzer for acoustic alerts. Thermal dissipation operates entirely passively without chassis hot spots due to the minimal 85 mA peak current draw, though the sealed enclosure lacks native solar charging pins or Wi-Fi networking, restricting remote top-ups and network bridging strictly to USB-C and Bluetooth connectivity.
Firmware implementation demonstrates reliable baseline execution under official MeshCore distributions (v1.14.0+ through official v1.17.1), supporting BLE Companion, Repeater, and Room Server roles out of the box. However, community-driven MeshCore-Evo forks introduce notable operational caveats: packet forwarding relies on manual adjustments post-flash, specifically requiring operators to verify that receiver gain is explicitly set to active and the flood advertisement base parameter is adjusted to 0.308. Once properly calibrated, the SX1262 radio stage reliably sustains typical point-to-point mesh hops across distances of up to 7.46 mi (12 km), presenting a dependable standalone telemetry tool provided firmware configurations are deliberately audited.
Technical Specifications
| Brand | Meshnology |
| Model | GAT562 Mesh Tracker Pro |
| Microcontroller | Nordic nRF52840 (ARM Cortex-M4F) |
| System Memory | 256 KB RAM |
| Onboard Flash | 1 MB |
| LoRa Transceiver | Semtech SX1262 |
| RF Frequency Bands | 868 MHz, 915 MHz |
| Maximum Transmit Power | 22 dBm |
| Antenna Interface | External SMA connector |
| Typical RF Range | Up to 7.46 mi (12 km) |
| Display | 1.3-in color TFT (128x64) |
| Input Controls | Analog joystick, 2 buttons |
| Audio Output | Integrated piezo buzzer |
| Status Indicators | LEDs |
| Enclosure Type | Factory injection-molded casing |
| GNSS / GPS | Integrated module |
| Wireless Connectivity | Bluetooth (BLE), LoRa (No Wi-Fi) |
| Battery Capacity | 2500 mAh Li-ion (built-in) |
| Battery Runtime | Approximately 7 days |
| Charging Interface | USB-C |
| Idle Current Draw | 8 mA |
| Transmit Current Draw | 85 mA |
| Dimensions | 3.74 x 2.36 x 0.79 in (95 x 60 x 20 mm) |
| Weight | 4.23 oz (120 g) |
| Firmware Support | MeshCore (v1.14.0+, official v1.17.1), MeshCore-Evo |
Primary Sources & Audited Citations
Recommended Alternatives in Networking & Routers
At a Glance
How reliable is the Meshnology GAT562 Mesh Tracker Pro Review: Turnkey LoRa Telemetry with Firmware Quirks according to Mizex audits?
A capable out-of-the-box LoRa GPS tracker with robust battery life and factory casing, though deployment requires manual parameter verification if moving beyond official MeshCore firmware.
What are the known quirks or drawbacks of the Meshnology GAT562 Mesh Tracker Pro Review: Turnkey LoRa Telemetry with Firmware Quirks?
Our reliability audit identified the following documented caveats:
- Community MeshCore-Evo firmware builds require manual parameter tuning for receiver gain and flood advertising
- No onboard Wi-Fi connectivity or native solar charging circuitry
- Display resolution is limited to 128x64 pixels
What are the key engineering highlights of the Meshnology GAT562 Mesh Tracker Pro Review: Turnkey LoRa Telemetry with Firmware Quirks?
The top strengths recorded in our evaluation include:
- High-efficiency Nordic nRF52840 and SX1262 radio pair delivering up to 7.46 mi (12 km) range with 22 dBm output
- Long-lasting 2500 mAh battery enabling approximately 7 days of autonomous runtime
- Factory injection-molded chassis with integrated color TFT display, joystick navigation, and GPS tracking
- Official MeshCore firmware support spanning BLE Companion, Repeater, and Room Server modes
