Overview

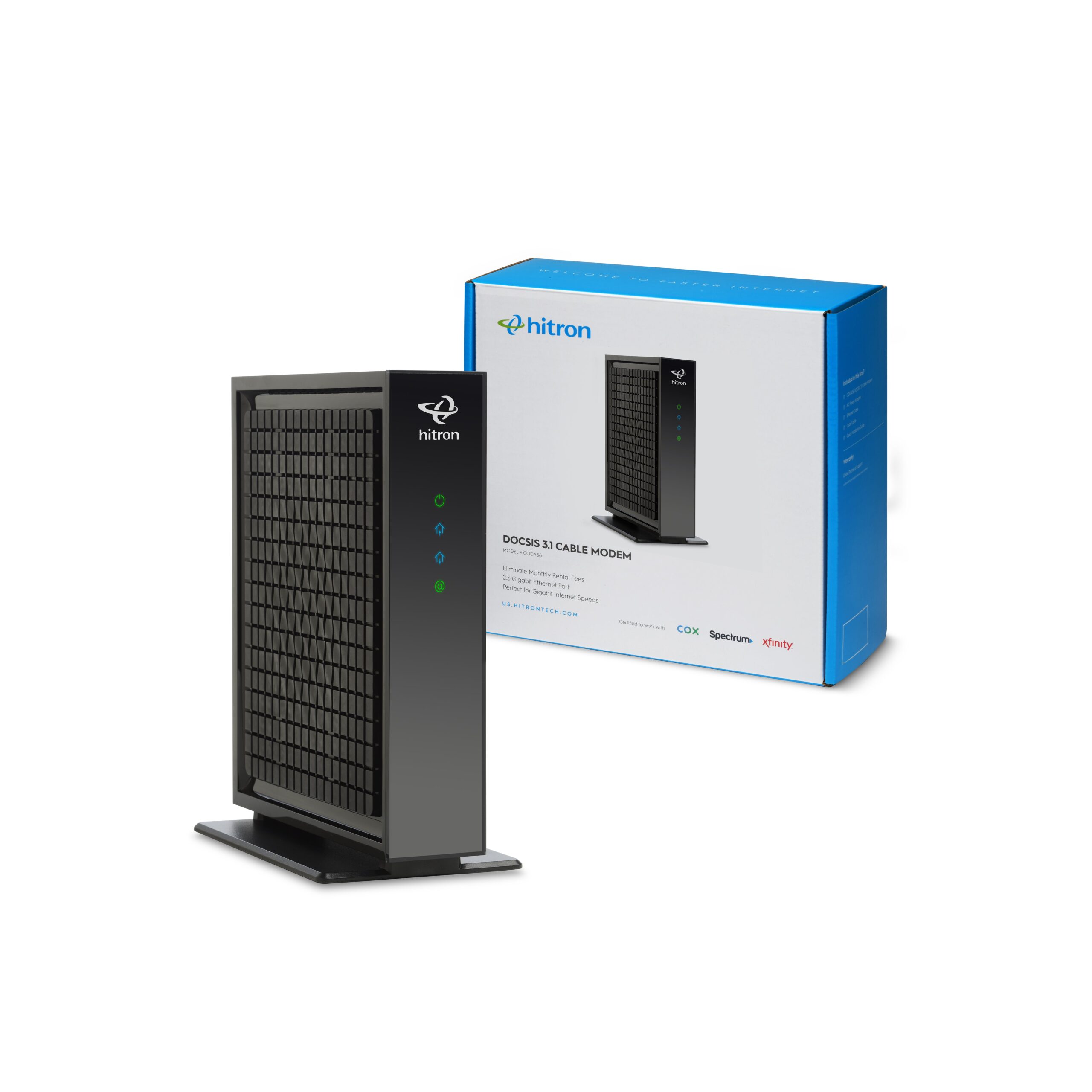

Bridging modern DOCSIS 3.1 cable broadband tiers to multi-gigabit local networks hinges on eliminating the conventional 1 Gbps Ethernet bottleneck. Incorporating a dedicated 2.5GBASE-T RJ-45 interface alongside 2×2 OFDM channel bonding, the hardware architecture provides the physical throughput required to extract full provisioned speeds up to 2.5 Gbps from certified cable service providers such as Comcast Xfinity, Charter Spectrum, and Cox Gigablast.
Operating within a measured power envelope ranging from 7.6 W in power-saving mode and 8.92 W during typical operation up to 14.0 W under maximum load, the enclosure relies entirely on passive convection cooling. The compact vertical form factor prioritizes airflow across the internal components without the need for active fan cooling. Packaged with a bundled Cat 6 Ethernet patch cable, the physical layout concentrates strictly on the core demarcation essentials: an F-type coaxial input, a 2.5G LAN jack, and a discrete power input.
Because firmware cadence and configuration profiles are pushed and managed directly by the connected cable operator rather than end-user GUI updates, operational reliability depends heavily on ISP certification status. With pre-validated compliance across major providers including Spectrum, Xfinity, and Sparklight, signal synchronization and channel locking remain predictable. The device operates strictly as a pure bridge modem, eschewing integrated Wi-Fi or routing circuitry and thereby requiring an external router or switch to distribute connectivity across multiple local endpoints.
Technical Specifications
| Brand | Hitron |
| Model | CODA56 |
| Modem Technology | DOCSIS 3.1 |
| OFDM Channels | 2x2 OFDM |
| LAN Interface | 1x 2.5 Gigabit Ethernet (RJ-45) |
| Maximum Supported Speed | 2.5 Gbps |
| Power Consumption (Power Saving) | 7.6 W |
| Power Consumption (Typical/Idle) | 8.92 W |
| Power Consumption (Maximum/Load) | 14.0 W |
| Included Accessories | Cat 6 Ethernet cable |
| Certified Cable Providers | Comcast Xfinity, Charter Spectrum, Cox Gigablast, CableOne Sparklight, Zito Media, Astound, Grande, RCN, Wave |
- Dedicated 2.5 Gigabit Ethernet port eliminates 1 Gbps bottlenecks on high-speed cable tiers
- DOCSIS 3.1 architecture with 2x2 OFDM channel bonding supports downstream speeds up to 2.5 Gbps
- Certified across major US cable service providers including Xfinity, Spectrum, and Cox
- Efficient power consumption drawing only 8.92 W typical and 14.0 W under peak load
- Dedicated bridge modem lacking integrated Wi-Fi, routing, or firewall functionality
- Single Ethernet port requires an external router or switch to connect multiple devices
- Incompatible with fiber optic, DSL, satellite, or bundled landline voice services
Primary Sources & Audited Citations
Recommended Alternatives in Networking & Routers
At a Glance
How reliable is the Hitron CODA56 Review: Unbottlenecked Multi-Gigabit Cable Bridge according to Mizex audits?
An optimal choice for cable subscribers on plans exceeding 1 Gbps who want to avoid recurring modem rental fees and pair with their own high-speed router.
What are the known quirks or drawbacks of the Hitron CODA56 Review: Unbottlenecked Multi-Gigabit Cable Bridge?
Our reliability audit identified the following documented caveats:
- Dedicated bridge modem lacking integrated Wi-Fi, routing, or firewall functionality
- Single Ethernet port requires an external router or switch to connect multiple devices
- Incompatible with fiber optic, DSL, satellite, or bundled landline voice services
What are the key engineering highlights of the Hitron CODA56 Review: Unbottlenecked Multi-Gigabit Cable Bridge?
The top strengths recorded in our evaluation include:
- Dedicated 2.5 Gigabit Ethernet port eliminates 1 Gbps bottlenecks on high-speed cable tiers
- DOCSIS 3.1 architecture with 2x2 OFDM channel bonding supports downstream speeds up to 2.5 Gbps
- Certified across major US cable service providers including Xfinity, Spectrum, and Cox
- Efficient power consumption drawing only 8.92 W typical and 14.0 W under peak load
