- Unified 360mm unibody frame installs with just four screws, eliminating frame misalignment and radiator cable clutter
- Standard daisy-chain 4-pin PWM interface synchronizes all three fans from a single header without proprietary controller hubs
- Magnetic Dome bearings and concentrated AirGuide stator vanes deliver up to 4.2 mm-H2O static pressure with reduced rotational friction
- PWM-driven Zero RPM mode enables completely silent operation during low thermal loads
- Unified one-piece construction prevents modular replacement or individual repositioning of single 120mm fans
- Acoustic noise increases to 36 dB(A) when fans operate at the maximum 2,100 RPM threshold
Overview

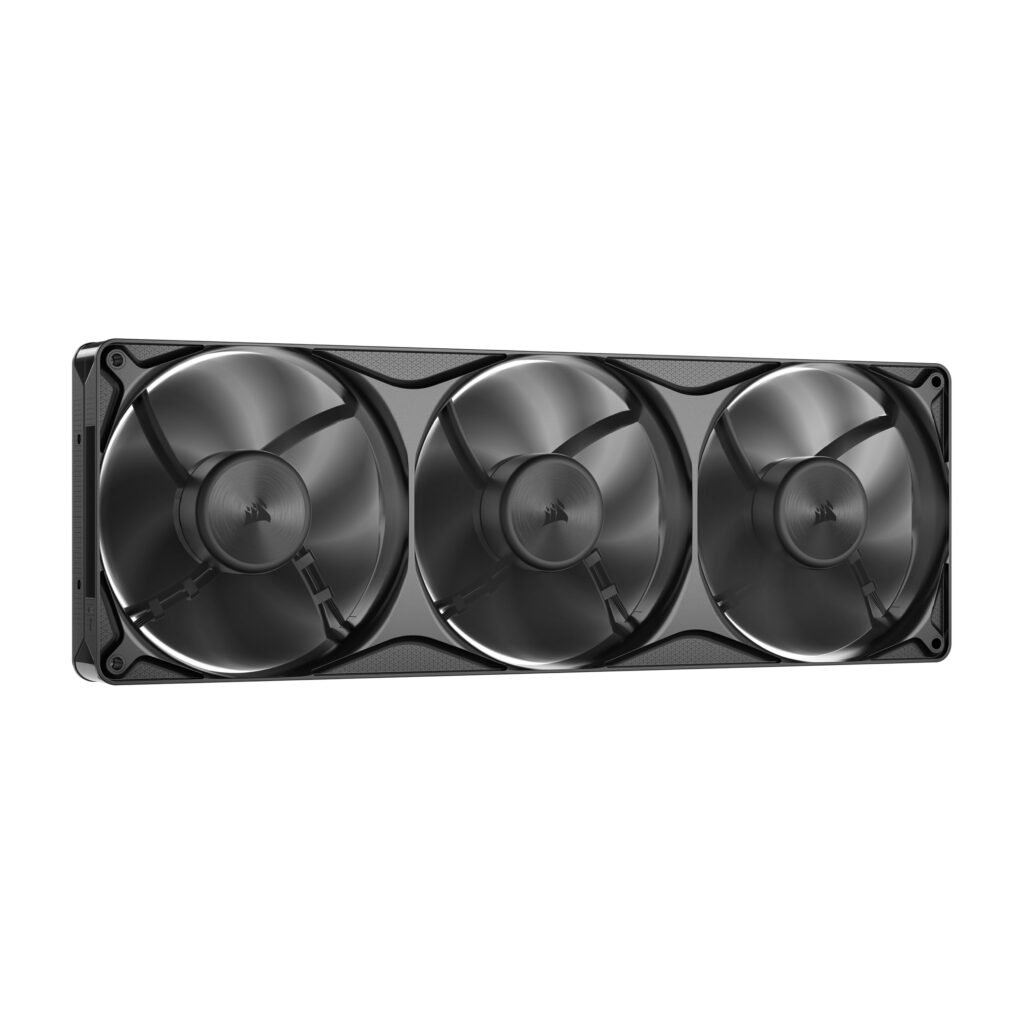

Eliminating the tedious chore of fastening twelve individual screws and routing multiple tangled fan leads across a radiator, a single unified 360-millimeter housing fundamentally transforms how liquid cooling setups are assembled. By fusing three 120-millimeter fans into one rigid 26-millimeter-thick unibody frame, the assembly drops directly onto any standard triple-fan bracket using just four mounting screws. Internally, Corsair bypasses proprietary control ecosystems in favor of universal 4-pin PWM daisy-chain connectivity, allowing the entire trio to synchronize from a single motherboard header without requiring specialized hub modules or bulky wiring harnesses.
Airflow dynamics are shaped by integrated AirGuide stator vanes stationed directly behind the impeller blades, which actively concentrate exhaust turbulence into a focused conical stream. This directional channeling generates up to 4.2 mm-H2O of static pressure and delivers up to 73.0 CFM of airflow per fan, providing ample pushing force to overcome the dense fin resistance of liquid cooling radiators. Rotational speeds sweep dynamically from 420 RPM up to 2,100 RPM, backed by full Zero RPM PWM support that halts rotation entirely during low system loads. While near-silent at lower velocities with noise dropping to 10 dB(A), driving the unit to its 2,100 RPM peak generates a measured acoustic output of 36 dB(A), which will be audible in open-mesh enclosures under heavy sustained rendering or gaming workloads.
Mechanical endurance centers on Magnetic Dome bearing architecture, which elevates the rotor shaft above the casing via magnetic levitation to drastically minimize surface friction, rotor wobble, and acoustic degradation over years of continuous operation. Corsair backs the unit with a five-year warranty, reflecting confidence in its component longevity and structural resilience. The primary operational compromise stems directly from the unibody construction: because all three impellers share a single continuous chassis, users cannot replace an individual damaged fan or reconfigure the unit across multiple locations. For PC builders prioritizing rapid installation, unified aesthetics, and clean cable management on a 360-millimeter radiator, this design offers an exceptionally organized cooling solution.
Technical Specifications
| Brand | Corsair |
| Model | RS360 II |
| Model SKU | CO-9051076-WW |
| Configuration | 360mm Unified Frame (3x 120mm integrated fans) |
| Dimensions | 14.17 x 4.72 x 1.02 in (360 x 120 x 26 mm) |
| Bearing Type | Magnetic Dome |
| Fan Speed Range | 0, 420 - 2,100 RPM (±10%) |
| Airflow | 10.8 - 73.0 CFM per fan |
| Static Pressure | 0.15 - 4.2 mm-H2O per fan |
| Acoustic Noise | 10 - 36 dB(A) |
| Control Type | 4-pin PWM |
| Connectivity | Daisy-chain 4-pin PWM connectors |
| Zero RPM Mode | Supported |
| Airflow Technology | CORSAIR AirGuide |
| Mounting Design | 4-screw unified frame mounting |
| Warranty | 5 years |
