Lian Li UNI Fan CL Flex 120mm Reverse Blade ARGB Review: High-Static Pressure Reverse Intake Cooling

Lian Li UNI Fan CL Flex 120mm Reverse Blade ARGB Review: High-Static Pressure Reverse Intake Cooling
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: Ideal for showcase intake mounts requiring unobstructed blade aesthetics and high static pressure, provided your chassis accommodates its 28 mm profile and you have an existing L-Wireless controller.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.4 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
High-static-pressure performance paired with an unobstructed reverse-blade intake impeller anchors the rating at 4.4. Engineering & Architecture (4.5) demonstrates sophisticated implementation with wireless ecosystem synchronization, 24 ARGB emitters, and an expansive PWM band including complete zero-RPM cessation. Build quality (4.3) exhibits structural rigidity through dense PBT and PC polymer construction, though the expanded 28 mm frame depth demands careful radiator and clearance checks. Acoustic profile and cooling effectiveness (4.4) are substantiated by 72.73 CFM of throughput and 2.38 mmH2O of pressure while maintaining 30.8 dBA at full 2100 RPM load. Reliability (4.6) is heavily reinforced by a low-friction Fluid Dynamic Bearing mechanism and a 36-month manufacturer warranty. Buyer value (4.2) remains competitive for premium showcase builds, tempered primarily by the exclusion of the L-Wireless hub in individual packaging.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

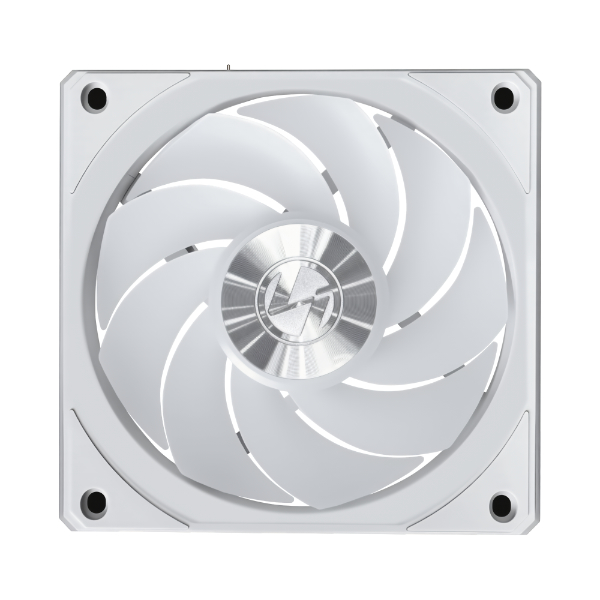

Airflow inversion defines the mechanical layout of this 120 mm cooling assembly, routing intake air across an unobstructed impeller face while keeping rear motor struts hidden against the chassis wall. Constructed from a rigid blend of polybutylene terephthalate (PBT) and polycarbonate (PC), the frame is expanded to a 1.10 in (28 mm) depth, providing the rotational stability and blade surface area necessary to generate 2.38 mmH2O of static pressure and 72.73 CFM of maximum volumetric airflow. Internal rotation is driven by a precision Fluid Dynamic Bearing (FDB) assembly, designed to mitigate hydrodynamic friction, reduce rotational wobble, and deliver sustained stability across its 36-month operational warranty.

Electrical and signaling architecture pairs standard DC 6V to 13.2V input rails with L-Wireless ecosystem control, coordinating power delivery alongside 24 integrated 5V addressable RGB LEDs. Dynamic speed regulation spans from a completely passive 0 RPM silent idle up to 2100 RPM under maximum thermal load, drawing 0.39A (4.68W) while capping acoustic emission at 30.8 dBA. While the 28 mm thickness exceeds traditional 25 mm bracket tolerances and individual packs omit the standalone wireless transceiver, the mechanical profile delivers exceptional acoustic efficiency and intake presentation in dense radiator and showcase enclosures.

Technical Specifications

Brand Lian Li
Model UNI Fan CL Flex 120mm Reverse Blade ARGB
Dimensions 4.72 x 4.88 x 1.10 in (120 x 124 x 28 mm)
Blade Type Reverse Blade
Bearing Type Fluid Dynamic Bearing (FDB)
Frame Material PBT / PC
Rotational Speed 0, 250 - 2100 RPM
Maximum Airflow 72.73 CFM
Static Pressure 2.38 mmH2O
Acoustic Noise 30.8 dBA
Operating Voltage DC 6V - 13.2V
Input Power 0.39A (4.68W)
LED Configuration 24 Addressable RGB LEDs
Lighting Interface 5V 3-Pin ARGB
Control Interface Wireless Control (L-Wireless compatible)
Warranty 36 months
✔ Pros
  • Reverse blade design enables clean intake aesthetics without visible structural frame struts
  • High static pressure of 2.38 mmH2O and maximum airflow of 72.73 CFM
  • Fluid Dynamic Bearing ensures sustained mechanical longevity and smooth operation
  • Zero RPM mode allows completely silent passive operation under low thermal loads
✖ Cons
  • Non-standard 28 mm (1.10 in) frame thickness may conflict with tight radiator or case clearance tolerances
  • Single-fan retail package does not include the required L-Wireless controller
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Newegg
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Case Fans

Compare Other Models →

At a Glance

How reliable is the Lian Li UNI Fan CL Flex 120mm Reverse Blade ARGB Review: High-Static Pressure Reverse Intake Cooling according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

Ideal for showcase intake mounts requiring unobstructed blade aesthetics and high static pressure, provided your chassis accommodates its 28 mm profile and you have an existing L-Wireless controller.

What are the known quirks or drawbacks of the Lian Li UNI Fan CL Flex 120mm Reverse Blade ARGB Review: High-Static Pressure Reverse Intake Cooling?

Our reliability audit identified the following documented caveats:

  • Non-standard 28 mm (1.10 in) frame thickness may conflict with tight radiator or case clearance tolerances
  • Single-fan retail package does not include the required L-Wireless controller
What are the key engineering highlights of the Lian Li UNI Fan CL Flex 120mm Reverse Blade ARGB Review: High-Static Pressure Reverse Intake Cooling?

The top strengths recorded in our evaluation include:

  • Reverse blade design enables clean intake aesthetics without visible structural frame struts
  • High static pressure of 2.38 mmH2O and maximum airflow of 72.73 CFM
  • Fluid Dynamic Bearing ensures sustained mechanical longevity and smooth operation
  • Zero RPM mode allows completely silent passive operation under low thermal loads
