- Native PCIe 4.0 x4 OCuLink port provides 64 Gbps bandwidth for external GPU docks without USB tunneling overhead
- Dual 2.5 GbE network interfaces deliver redundant multi-gigabit throughput for homelab and edge server workloads
- Dual-fan thermal architecture actively directs independent airflow across both the processor and the NVMe/RAM slots
- Comprehensive video routing supporting up to four simultaneous 4K displays via HDMI 2.1, DisplayPort, and dual USB4
- Compact high-RPM primary blower generates audible acoustics under sustained peak processor loads
- High-performance operation under combined APU and peripheral load requires a high-capacity power adapter or 100W PD supply
Overview

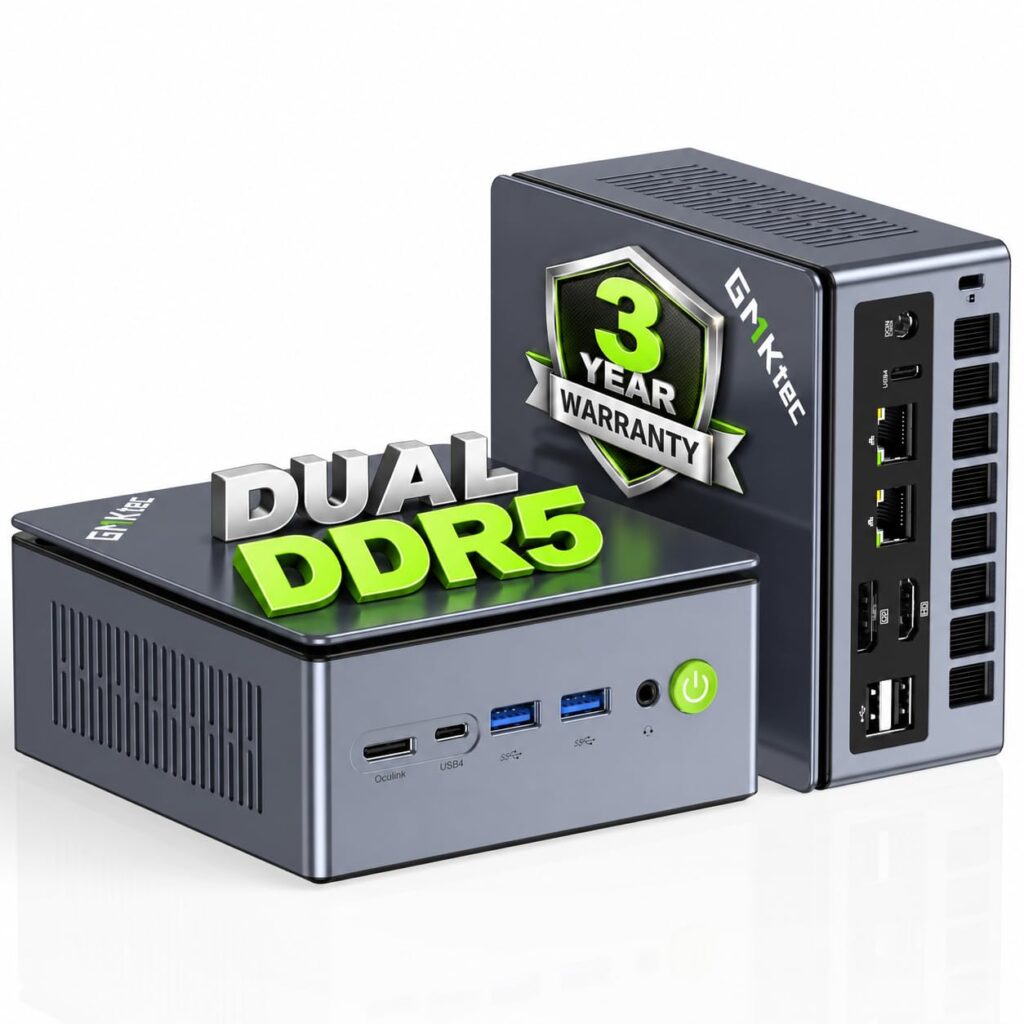

Routing an 8-core AMD Ryzen 7 PRO 6850U APU alongside a 64 Gbps PCIe 4.0 x4 OCuLink interface and twin 40 Gbps USB4 controllers into a compact 5.20 x 4.92 x 2.28 in (132 x 125 x 58 mm) chassis establishes an exceptional level of high-speed interconnect density. The Zen 3+ processor, fabricated on a TSMC 6nm node, pairs 8 cores and 16 threads with integrated AMD Radeon 680M graphics and enterprise AMD PRO silicon-level security protections. Memory routing supports dual-channel DDR5 SO-DIMM modules at transfer speeds up to 4800 MT/s across two slots for up to 64GB total capacity, while the internal motherboard layout provides two full M.2 2280 PCIe 4.0 x4 NVMe drive positions capable of accommodating up to 16TB of solid-state storage. Power delivery is managed via a dedicated DC-in port or standard 100W USB Power Delivery over Type-C, providing multi-rail power stability to the discrete VRM stages under heavy transient workloads.
The mechanical enclosure combines an impact-resistant polymer chassis with a semi-transparent tinted upper access lid and vented perimeter grilles to balance structural rigidity against component accessibility. Thermal management utilizes an active dual-fan cooling topology, deploying a primary copper heatpipe and fin-stack blower across the processor while a secondary low-profile auxiliary fan on the upper frame directs dedicated airflow across the memory modules and storage drives. Under low and moderate desktop workloads, acoustics remain unobtrusive, but sustained computing tasks and elevated APU power envelopes elevate blower velocities, producing an audible high-frequency air rush characteristic of compact blower systems. GMKtec maintains a standard UEFI BIOS implementation that exposes essential fan profile controls, virtualization parameters, and boot power stages, allowing homelab administrators and creative professionals to establish predictable operational parameters without erratic thermal throttling.
In day-to-day deployment, the hardware serves as a versatile high-density workstation or edge node due to its comprehensive peripheral array. Dual 2.5 GbE Ethernet controllers provide robust multi-gigabit networking redundancy, complemented by Wi-Fi 6E and Bluetooth 5.2 for wireless connectivity. Display pipelines support simultaneous quad-monitor output across dedicated HDMI 2.1, DisplayPort, and dual USB4 channels, while the inclusion of the direct PCIe OCuLink port allows discrete external GPU enclosures to operate without the latency and protocol overhead typically introduced by USB tunneling. The modular access design allows straightforward RAM and storage upgrades without requiring total system disassembly, rounding out a durable, highly adaptable mini computing platform.
Technical Specifications
| Brand | GMKtec |
| Model | NucBox M7 Ultra |
| Processor | AMD Ryzen 7 PRO 6850U (8 Cores, 16 Threads, up to 4.7 GHz, 16MB L3 Cache) |
| Graphics | AMD Radeon 680M (12 CUs, RDNA 2, up to 2200 MHz) |
| Memory Support | Dual-channel DDR5 SO-DIMM (up to 64GB, 4800 MT/s) |
| Storage Slots | 2 x M.2 2280 PCIe 4.0 x4 NVMe SSD (up to 16TB total) |
| High Speed Expansion | 1 x OCuLink port (PCIe 4.0 x4, 64 Gbps) |
| USB Ports | 2 x USB4 (40 Gbps, Type-C, DP Alt Mode, PD in), 2 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 Type-A |
| Video Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4, 2 x USB4 (Quad-display support) |
| Networking | Dual 2.5 GbE Ethernet (RJ45) |
| Wireless Connectivity | Wi-Fi 6E, Bluetooth 5.2 |
| Audio Interface | 3.5 mm headphone/microphone combo jack |
| Cooling Topology | Dual-fan active cooling (dedicated APU blower + dedicated RAM/SSD auxiliary fan) |
| Power Input | DC-in jack / 100W USB-C Power Delivery |
| Dimensions | 5.20 x 4.92 x 2.28 in (132 x 125 x 58 mm) |
| Weight | 1.33 lbs (604 g) |
Primary Sources & Audited Citations
Recommended Alternatives in Mini PCs
At a Glance
How reliable is the GMKtec M7 Ultra Review: Compact Zen 3+ with Native OCuLink according to Mizex audits?
A premier compact workstation choice for power users, edge deployments, and homelab setups requiring native OCuLink eGPU expansion and dual 2.5 GbE networking alongside dependable Zen 3+ efficiency.
What are the known quirks or drawbacks of the GMKtec M7 Ultra Review: Compact Zen 3+ with Native OCuLink?
Our reliability audit identified the following documented caveats:
- Compact high-RPM primary blower generates audible acoustics under sustained peak processor loads
- High-performance operation under combined APU and peripheral load requires a high-capacity power adapter or 100W PD supply
What are the key engineering highlights of the GMKtec M7 Ultra Review: Compact Zen 3+ with Native OCuLink?
The top strengths recorded in our evaluation include:
- Native PCIe 4.0 x4 OCuLink port provides 64 Gbps bandwidth for external GPU docks without USB tunneling overhead
- Dual 2.5 GbE network interfaces deliver redundant multi-gigabit throughput for homelab and edge server workloads
- Dual-fan thermal architecture actively directs independent airflow across both the processor and the NVMe/RAM slots
- Comprehensive video routing supporting up to four simultaneous 4K displays via HDMI 2.1, DisplayPort, and dual USB4
