Overview

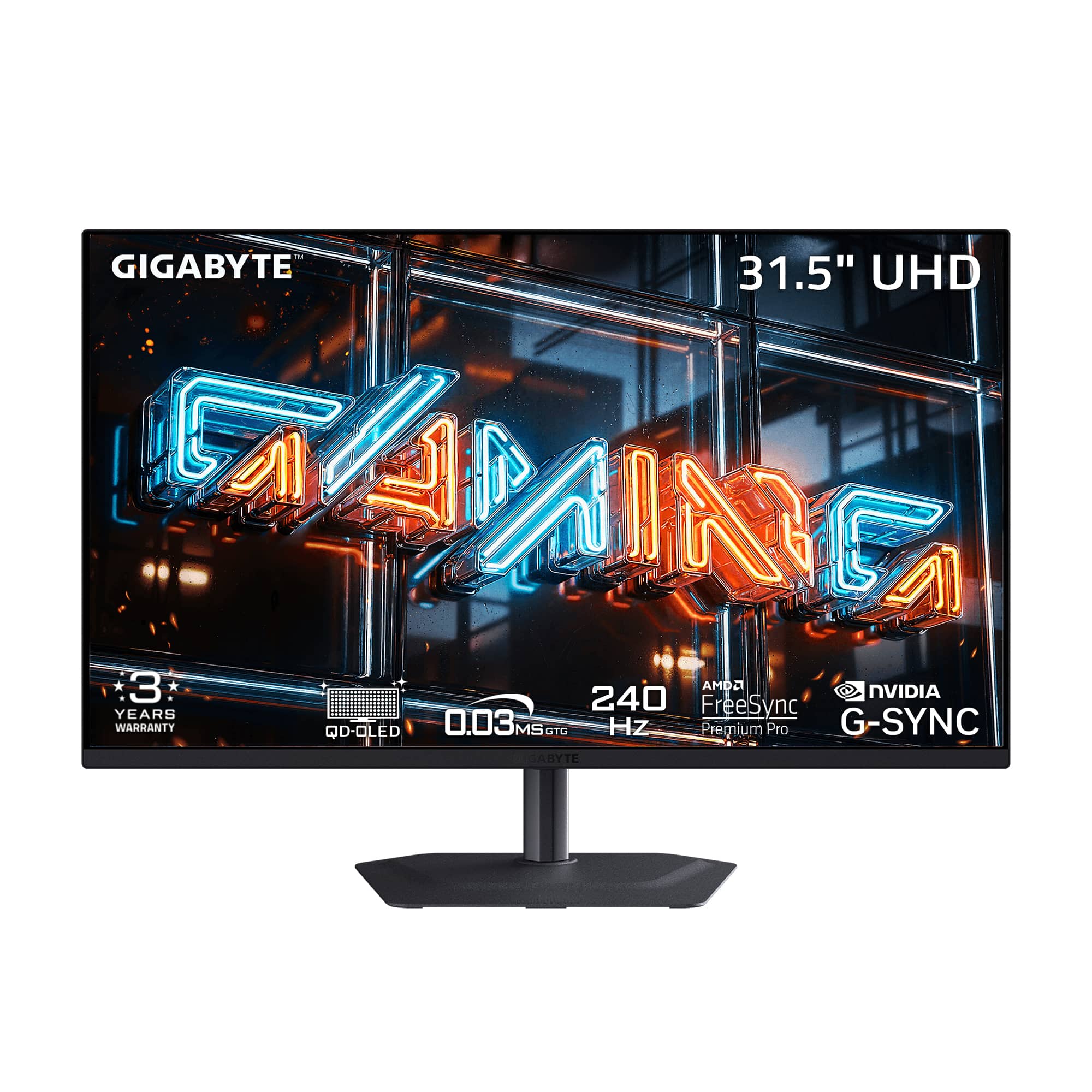

The Gigabyte MO32U24 integrates Samsung’s Penta Tandem EL 3.0 QD-OLED panel into a 31.5-inch 4K UHD form factor, pairing a 240 Hz refresh rate with a 0.03 ms gray-to-gray response time. Certified for VESA DisplayHDR True Black 500 and VESA ClearMR 13000, the architecture distributes electrical excitation across a five-layer tandem emissive stack. This multi-layer approach enhances luminous efficiency and allows the panel to sustain approximately 300 cd/m² across a 100% full-field white in SDR while achieving 99% DCI-P3 color gamut coverage. Peak HDR brightness is tuned conservatively to 1,000 cd/m² at a 3% Average Picture Level to prioritize organic emitter lifespan over short-duration brightness spikes.
From a structural and materials standpoint, the panel surface incorporates an Advanced ObsidianShield optical layer rated at 3H hardness, delivering substantially better scratch resistance and specular reflection diffusion than traditional glossy OLED coatings. While the panel omits a traditional circular polarizer—meaning high ambient light environments can still induce slightly raised black levels—the ObsidianShield film minimizes surface glare. Complete thermal sub-assembly diagnostics, internal heatsink airflow dynamics, and acoustic load noise measurements remain pending physical retail teardowns and acoustic chamber testing.
In daily operation, the MO32U24 provides pristine contrast, instantaneous pixel transitions, and deep black reproduction for critical viewing and gaming workflows. Prospective users focused on high-density productivity should consider that the panel retains a triangular subpixel arrangement, which can cause slight fringing along high-contrast text edges compared to conventional RGB stripe patterns. Supported by integrated firmware pixel-maintenance safeguards and the physical resilience of tandem emitter chemistry, the display represents a durable, performance-driven visual platform.
Technical Specifications
| Screen Size | 31.5 inches |
| Display Technology | QD-OLED (Samsung Penta Tandem EL 3.0) |
| Resolution | 3840 x 2160 (4K UHD) |
| Refresh Rate | 240 Hz |
| Response Time | 0.03 ms GTG |
| Peak Hdr Brightness | 1,000 cd/m² (at 3% APL) |
| Sustained Sdr Brightness | 300 cd/m² (100% APL) |
| Hdr Certification | VESA DisplayHDR True Black 500 |
| Motion Clarity Certification | VESA ClearMR 13000 |
| Color Gamut Coverage | 99% DCI-P3 |
| Surface Treatment | Advanced ObsidianShield low-reflectance film |
| Surface Hardness | 3H |
| Subpixel Layout | Triangular QD-OLED subpixel arrangement |
- Samsung Penta Tandem five-layer QD-OLED structure improves luminous efficiency and per-pixel longevity
- Rapid 240 Hz refresh rate with 0.03 ms GTG response time and VESA ClearMR 13000 motion clarity certification
- Sustains high full-screen SDR brightness of approximately 300 cd/m²
- Advanced ObsidianShield coating enhances scratch resistance to 3H and suppresses ambient reflections
- Triangular subpixel structure can induce minor color fringing around high-contrast desktop text
- Absence of a circular polarizer allows intense ambient lighting to cause slightly raised black levels
- Peak HDR brightness is conservatively capped at 1,000 cd/m² at 3% APL
