Overview
Operating at the intersection of a 40,000 Pa high-vacuum brushless turbine and an actively rinsed OZMO Roller 3.0 assembly, the mechanical architecture departs from conventional twin-disc rotary mopping. The powertrain couples a 16 L/s high-airflow duct with a 10.6-inch (270 mm) microfiber roller driven at 220 RPM under 4,000 Pa of downward force. Internal fluidics deliver continuous hydration via 32 pressurized micro-nozzles while an integrated squeegee extracts dirty wash water directly into the waste channel during mid-sweep operation. Chassis locomotion relies on TruePass adaptive four-wheel drive dynamics utilizing 3.0-inch (76 mm) high-traction drive wheels capable of surmounting 1.0-inch (25 mm) single thresholds and stepped obstacles up to 1.9 inches (48 mm).
Edge and surface transitions are managed by TruEdge 3.0 mechanical articulation, permitting the active roller to extend 0.6 inches (15 mm) laterally along baseboards, synchronized with an automated 0.6-inch (15 mm) vertical carriage lift when the ultrasonic sensor detects textile surfaces. Spatial awareness and obstacle classification are handled by an AIVI 3D 4.0 sensor cluster combining structured-light depth sensing, an RGB vision sensor, and forward LED illumination to classify low-profile obstacles down to millimetric tolerances. Wireless integration incorporates Matter standard support alongside standard 2.4 GHz 802.11b/g/n networking, tethering local scheduling to cloud processing and the Yiko 2.0 voice engine.

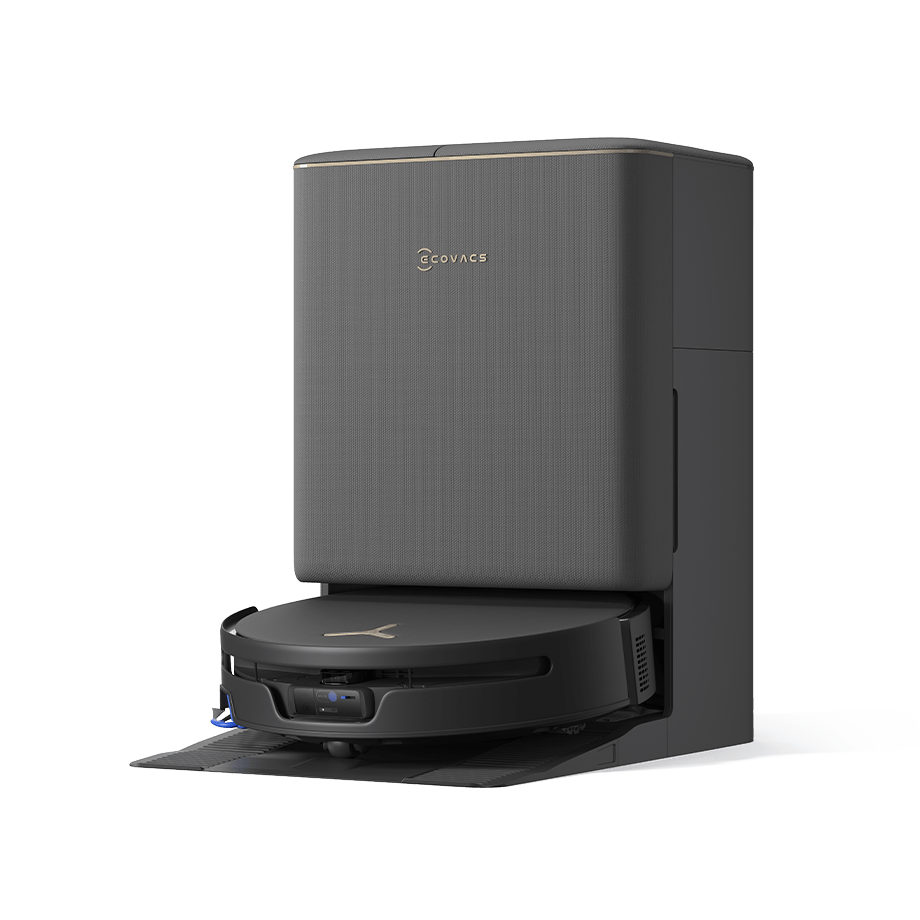

The docking ecosystem integrates an automated OMNI station housing multi-stage sanitation hardware. The wash bay employs an in-line heating core delivering water at 212°F (100°C) directly to the roller wash board to dissolve emulsified grease, followed by a sealed 145°F (63°C) forced hot-air drying duct designed to prevent bacterial proliferation. Rapid power delivery is handled via PowerBoost contacts supplying a charge profile that restores 10% battery capacity in 3 minutes during docking pauses, extending total run times beyond the baseline 200-minute discharge window. While the dense mechanical integration of pressurized water conduits, articulating roller linkages, and dust extraction valves creates multiple routine maintenance checkpoints, the platform delivers high cleaning efficacy across demanding mixed-surface layouts.
Technical Specifications
| Brand | ECOVACS |
| Model | DEEBOT T90S PRO |
| Suction Power | 40,000 Pa (BLAST suction system) |
| Airflow Volume | 16 L/s |
| Mopping Architecture | OZMO Roller 3.0 continuous fresh-water rinse |
| Roller Length | 10.6 in (270 mm) |
| Roller Scrub Speed | 220 RPM |
| Mopping Downward Force | 4,000 Pa |
| Edge Extension (TruEdge 3.0) | 0.6 in (15 mm) |
| Carpet Mop Lift Clearance | 0.6 in (15 mm) |
| Threshold Crossing Clearance | Single: 1.0 in (25 mm) / Stepped: 1.9 in (48 mm) |
| Drive Wheel Diameter | 3.0 in (76 mm) |
| Drive Drivetrain | TruePass Adaptive 4WD |
| Vision & Navigation | AIVI 3D 4.0 structured light, RGB camera, and LED assist |
| Brush Mechanism | ZeroTangle 4.0 with lateral airflow channels |
| Station Mop Wash Temperature | 212°F (100°C) |
| Station Drying Temperature | 145°F (63°C) hot-air flow |
| Dock Automation | Automatic dust evacuation, hot-water mop washing, hot-air drying, detergent dispensing |
| Maximum Battery Runtime | Up to 200 minutes |
| Rapid Charge Capability | PowerBoost (10% charge gain in 3 minutes) |
| Wireless Interface | Wi-Fi 802.11b/g/n (2.4 GHz) |
| Smart Ecosystem Integration | Matter, Apple Home, Google Home, Samsung SmartThings |
| Integrated Voice Control | YIKO 2.0 |
- High-output 40,000 Pa suction and 16 L/s airflow combined with ZeroTangle 4.0 hair extraction.
- OZMO Roller 3.0 system provides true active scrubbing at 220 RPM with continuous fresh-water injection.
- Automated OMNI station delivers 212°F (100°C) hot-water roller washing and 145°F (63°C) hot-air drying.
- TruePass 4WD suspension scales obstacles up to 1.9 in (48 mm) across complex floor transitions.
- Constrained to 2.4 GHz wireless networks with no support for 5 GHz or Wi-Fi 6 bands.
- Carpet lift clearance of 0.6 in (15 mm) risks contact with high-pile or plush rugs.
- Intricate internal fluidics with 32 micro-nozzles require periodic descaling and seal inspection.
Primary Sources & Audited Citations
Recommended Alternatives in Smart Home & IoT
At a Glance
How reliable is the ECOVACS DEEBOT T90S PRO Review: High-Pressure Suction Meets Active Sanitation according to Mizex audits?
A formidable choice for mixed-floor homes requiring aggressive stain removal and high obstacle crossing, provided you are willing to manage routine OMNI dock upkeep and accept 2.4 GHz-only wireless connectivity.
What are the known quirks or drawbacks of the ECOVACS DEEBOT T90S PRO Review: High-Pressure Suction Meets Active Sanitation?
Our reliability audit identified the following documented caveats:
- Constrained to 2.4 GHz wireless networks with no support for 5 GHz or Wi-Fi 6 bands.
- Carpet lift clearance of 0.6 in (15 mm) risks contact with high-pile or plush rugs.
- Intricate internal fluidics with 32 micro-nozzles require periodic descaling and seal inspection.
What are the key engineering highlights of the ECOVACS DEEBOT T90S PRO Review: High-Pressure Suction Meets Active Sanitation?
The top strengths recorded in our evaluation include:
- High-output 40,000 Pa suction and 16 L/s airflow combined with ZeroTangle 4.0 hair extraction.
- OZMO Roller 3.0 system provides true active scrubbing at 220 RPM with continuous fresh-water injection.
- Automated OMNI station delivers 212°F (100°C) hot-water roller washing and 145°F (63°C) hot-air drying.
- TruePass 4WD suspension scales obstacles up to 1.9 in (48 mm) across complex floor transitions.
