NARWAL Freo 20 Edge Review: High-Suction Articulated Track Mopping

▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: A capable edge-cleaning platform with exceptional suction and continuous track scrubbing, best suited for homes that do not require heated water mop sanitization or smart home Matter integration.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.3 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
Aggressive 31,000 Pa suction and an active 1.97 in (5.0 cm) extending track mop anchor the 4.3 rating, delivering top-tier mechanical edge cleaning alongside measurable functional trade-offs. Engineering & Architecture (4.3) pairs accurate dToF LiDAR with 3D structured light navigation, though it foregoes secondary RGB visual recognition and Matter protocol integration. Build quality (4.4) demonstrates tight chassis tolerances across the 0.47 in (12 mm) automatic mop-lift stage and extending arm linkages. Thermal management (4.1) maintains stable motor operation across extended runtimes and incorporates hot-air drying in the dock. Long-term Reliability (4.4) benefits from dependable solid-state optical sensing, a 210-minute battery runtime, and low-wear track drive components. Buyer value (4.3) remains strong for hard-floor coverage despite the omission of 60°C heated mop washing.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

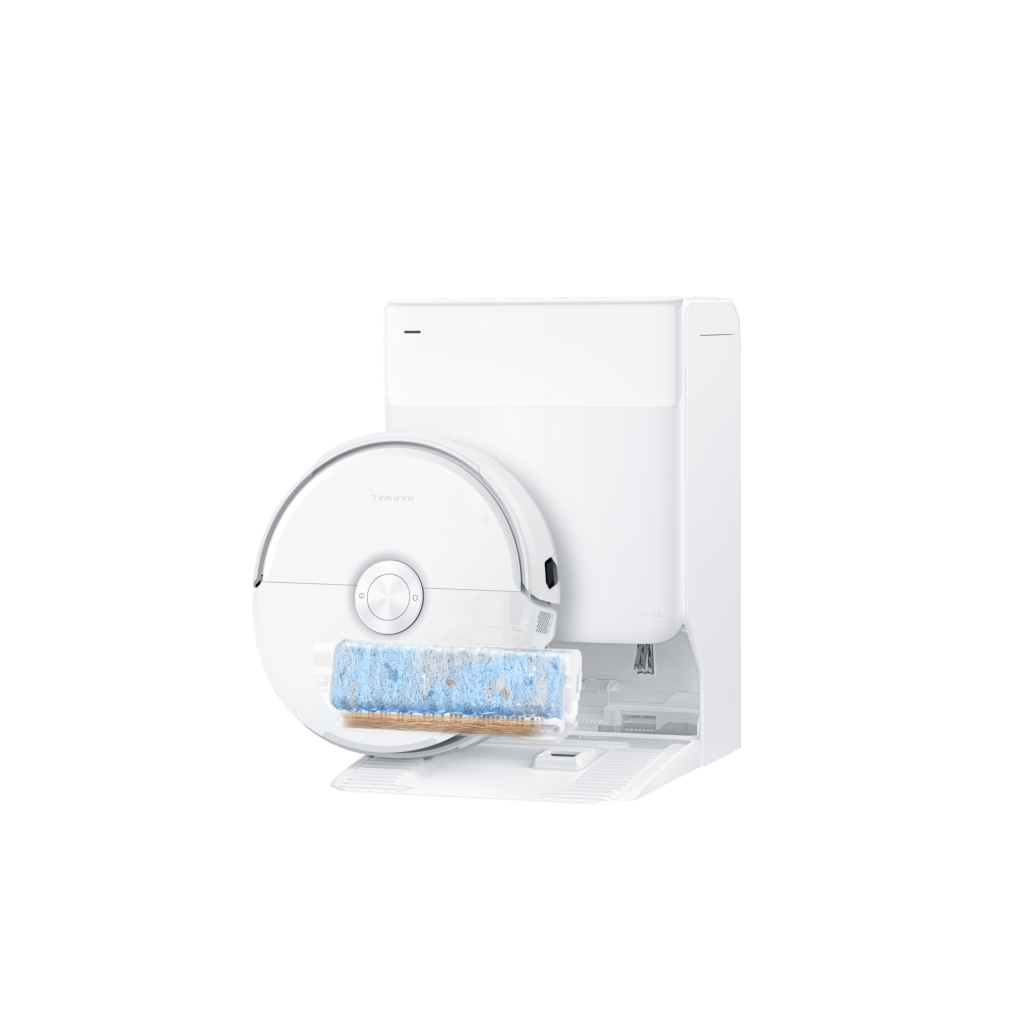

Mechanical scrub efficiency and perimeter coverage define the physical layout of the Narwal Freo 20 Edge, which centers its chassis around a FlowWash fresh-water track mop spanning 10.47 in (26.6 cm) and exerting 12 N of downward pressure. To eliminate uncleaned baseboard margins, the robot integrates an active side-extension mechanism capable of projecting the mop assembly outward by up to 1.97 in (5.0 cm). When navigating onto low-pile carpets or rugs, an integrated lift module elevates the wet mop track by 0.47 in (12 mm) to prevent moisture transfer while routing high-velocity airflow through its 31,000 Pa suction motor.

Sensor integration relies on direct Time-of-Flight (dToF) LiDAR paired with front-facing 3D structured light sensors for volumetric obstacle avoidance, profiling approximately 150 household obstacle classes without onboard RGB cameras. The 3.74 in (95 mm) turreted profile necessitates at least 3.94 in (100 mm) of vertical furniture clearance for safe transit. While omitting Matter ecosystem protocols and direct Bluetooth local bridging, the system manages extended cleaning cycles via an internal battery rated for up to 210 minutes of continuous runtime.

Maintenance cycles are offloaded to an automated docking station incorporating a 0.66 gal (2.5 L) self-emptying dust bag and a 1.19 gal (4.5 L) clean water reservoir. The dock utilizes room-temperature water for mop wash routines—foregoing the 60°C heated wash circuits found on higher-tier alternatives—before initiating a hot-air drying phase to prevent mildew formation and bacterial proliferation on the damp track textile.

Technical Specifications

Brand NARWAL
Model Freo 20 Edge
Mop System FlowWash fresh-water continuous track mop
Track Mop Width 10.47 in (26.6 cm)
Mop Extension Reach 1.97 in (5.0 cm)
Downward Mop Pressure 12 N
Maximum Suction 31,000 Pa
Mop Lift Clearance 0.47 in (12 mm)
Navigation Sensor dToF LiDAR
Obstacle Avoidance 3D structured light (~150 object classes)
Chassis Height 3.74 in (95 mm)
Minimum Furniture Clearance 3.94 in (100 mm)
Battery Runtime Up to 210 minutes
Dock Dust Bag Capacity 0.66 gal (2.5 L)
Dock Clean Water Tank 1.19 gal (4.5 L)
Mop Drying Method Hot air
Mop Rinsing Temperature Room temperature (unheated)
✔ Pros
  • High suction capability reaching up to 31,000 Pa in Max mode
  • FlowWash fresh-water track mop delivering 12 N downward pressure with 1.97 in (5.0 cm) side extension
  • Automated 0.47 in (12 mm) mop lifting for carpet isolation and hot-air mop drying in dock
  • Extended battery runtime rated up to 210 minutes per charge
✖ Cons
  • Mop washing cycle uses room-temperature water rather than heated 60°C sanitization
  • Omits dual RGB cameras, limiting obstacle recognition to approximately 150 items instead of 300+
  • Lacks Matter ecosystem protocol certification and direct Bluetooth connectivity
📋
