- Includes four pre-installed 120 mm RGB cooling fans for turnkey positive pressure airflow
- Perforated front mesh fascia provides an open intake path for component cooling
- Tempered glass side panel provides full interior visibility with clean aesthetics
- Comprehensive internal drive support accommodating up to two 3.5-inch and four 2.5-inch drives
- Included RGB fans feature fixed-pattern illumination and lack PWM motherboard speed control
- GPU clearance is limited to 12.0 in (305 mm), restricting compatibility with larger multi-fan graphics cards
- Front I/O relies on dual legacy USB 2.0 ports and lacks a modern USB-C connection
Overview

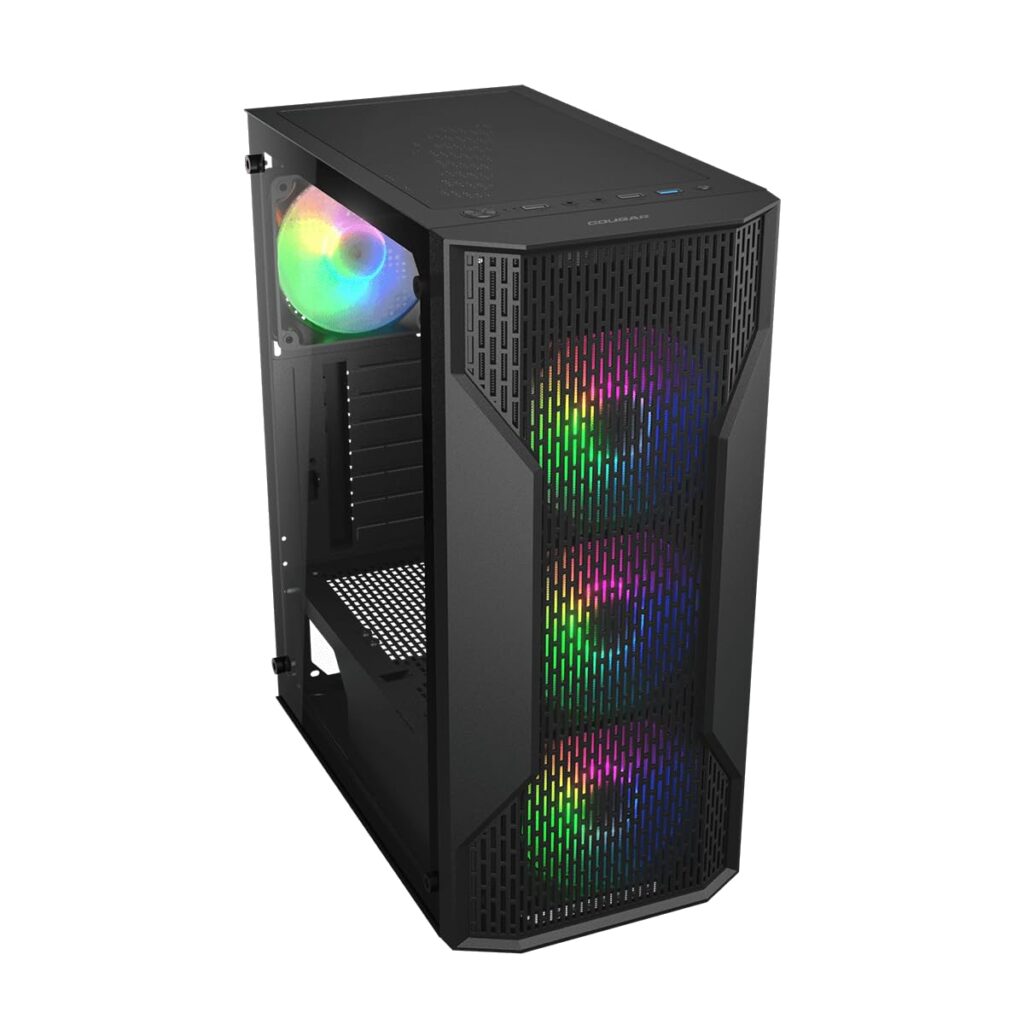

Enclosure ventilation and component accessibility anchor the physical footprint of this mid-tower chassis, which spans 7.9 x 17.8 x 14.2 in (200 x 452 x 360 mm) and weighs 9.96 lbs (4.52 kg). Constructed from SPCC steel with an edge-to-edge tempered glass side window, the frame utilizes an open-mesh front fascia engineered to minimize intake airflow resistance. Internal clearance accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards, alongside graphics cards measuring up to 12.0 in (305 mm) in length and CPU air coolers up to 6.2 in (158 mm) in height. Storage mounting provisions include two 3.5-inch drive bays and up to four 2.5-inch drive positions, while power supplies are enclosed within a dedicated bottom shroud supporting units up to 6.3 in (160 mm) in depth.
Thermal dissipation is driven by four factory-installed 120 mm fans positioned across the three front intake mounts and the single rear exhaust location, establishing baseline positive pressure out of the box. The top panel accommodates an additional two 120 mm auxiliary exhausts shielded by a magnetic dust filter, and the front chassis structure supports liquid cooling radiators up to 9.4 in (240 mm). However, the included fans operate on fixed-mode static illumination and draw direct power via legacy Molex connectors without motherboard PWM telemetry or BIOS curve modulation. This electrical arrangement holds acoustic output at a constant operational baseline rather than dynamically scaling with system thermals.
Front-panel connectivity routes through a top-mounted I/O cluster comprising one USB 3.0 Type-A port, two legacy USB 2.0 Type-A connectors, and dedicated 3.5 mm microphone and headphone jacks, alongside standard tactile power and reset switches. The internal steel tray provides essential cable routing cutouts and tie-off points around the motherboard perimeter, though clearance behind the right side panel necessitates disciplined wire dressing when bundling multiple non-modular power leads. For entry-level system builds, the platform balances ready-to-run multi-fan cooling and straightforward hardware installation against the trade-offs of static fan circuitry and constrained GPU clearances.
Technical Specifications
| Brand | COUGAR |
| Model | MX110 RGB |
| Form Factor | Mid-Tower |
| Chassis Materials | SPCC steel, tempered glass, ABS plastic |
| Dimensions (W X H X D) | 7.9 x 17.8 x 14.2 in (200 x 452 x 360 mm) |
| Weight | 9.96 lbs (4.52 kg) |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 7 standard slots |
| Maximum GPU Length | 12.0 in (305 mm) |
| Maximum CPU Cooler Height | 6.2 in (158 mm) |
| Maximum PSU Length | 6.3 in (160 mm) |
| Storage Drive Bays | 2 x 3.5-inch HDD (convertible), 2+2 x 2.5-inch SSD |
| Pre Installed Fans | 4 x 120 mm fixed-mode RGB fans (3 front intake, 1 rear exhaust) |
| Total Fan Capacity | Up to 6 x 120 mm (3 front, 2 top, 1 rear) |
| Radiator Compatibility | Front: 9.4 in (240 mm) / 4.7 in (120 mm); Rear: 4.7 in (120 mm) |
| Front I/O Interface | 1 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, 1 x 3.5 mm Mic, 1 x 3.5 mm Audio, Reset switch |
| Dust Filtration | Top magnetic filter, front mesh intake, bottom PSU filter |
Primary Sources & Audited Citations
Recommended Alternatives in PC Cases
At a Glance
How reliable is the COUGAR MX110 RGB Review: Turnkey Airflow With Static Lighting according to Mizex audits?
Best suited for budget-conscious builders assembling standard ATX systems who prioritize turnkey intake cooling over addressable RGB customization or modern USB-C front connectivity.
What are the known quirks or drawbacks of the COUGAR MX110 RGB Review: Turnkey Airflow With Static Lighting?
Our reliability audit identified the following documented caveats:
- Included RGB fans feature fixed-pattern illumination and lack PWM motherboard speed control
- GPU clearance is limited to 12.0 in (305 mm), restricting compatibility with larger multi-fan graphics cards
- Front I/O relies on dual legacy USB 2.0 ports and lacks a modern USB-C connection
What are the key engineering highlights of the COUGAR MX110 RGB Review: Turnkey Airflow With Static Lighting?
The top strengths recorded in our evaluation include:
- Includes four pre-installed 120 mm RGB cooling fans for turnkey positive pressure airflow
- Perforated front mesh fascia provides an open intake path for component cooling
- Tempered glass side panel provides full interior visibility with clean aesthetics
- Comprehensive internal drive support accommodating up to two 3.5-inch and four 2.5-inch drives
