- Seamless dual tempered glass panels provide a 270-degree panoramic showcase view of internal hardware
- Top I/O panel includes a dedicated native USB Type-C port alongside USB 3.0
- Versatile fan mounting options supporting up to eight 120 mm fans and 240 mm liquid cooling radiators
- Strong entry-level value proposition for an ATX panoramic dual-chamber aesthetic
- Ships with zero pre-installed fans, requiring builders to purchase and install aftermarket cooling
- CPU air cooler clearance is limited to 6.1 in (155 mm), restricting larger dual-tower heatsinks
- Lightweight, thin-gauge sheet metal construction exhibits minor chassis flex during component installation
Overview

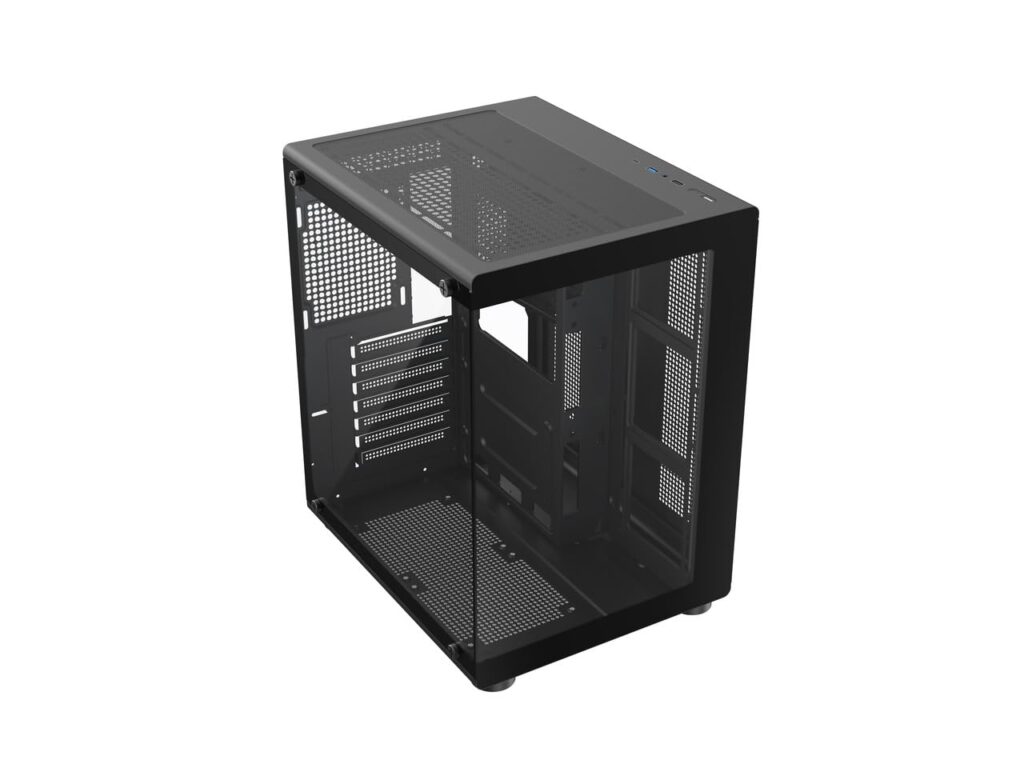

Bringing the dual-pane panoramic showcase design into the entry-level PC building market, this chassis prioritizes visual presentation and component exhibition. The corner pillar-free front and side tempered glass arrangement delivers an unobstructed 270-degree view into the main hardware chamber, making internal components the visual centerpiece of a desktop setup. On the top panel, connectivity is anchored by a native USB Type-C port alongside a standard USB 3.0 port and 3.5 mm audio jacks, sparing builders the adapter hassles frequently encountered with budget enclosures. Inside, the chassis accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards, supported by a dual-chamber internal layout that positions the power supply and storage drives beneath a full-length lower shroud.
Structural design reflects its budget-conscious focus, utilizing a lightweight SPCC steel frame that brings total weight to 10.40 lbs (4.72 kg) despite the dual glass panels. While the compact exterior measurements of 13.56 x 11.00 x 15.68 in (344 x 279 x 398 mm) keep desk footprint minimal, internal clearances require deliberate component selection. The chassis accommodates graphics cards up to 13.0 in (330 mm) and standard power supplies up to 6.3 in (160 mm), but caps CPU air cooler height at 6.1 in (155 mm), ruling out many large dual-tower heatsinks. Builders must also exercise care during assembly, as the thinner-gauge sheet metal exhibits slight flex when both panels are unfastened, and routing space behind the motherboard tray demands deliberate cable bundling to allow the rear steel panel to slide shut cleanly.
Thermal behavior centers around a lateral airflow scheme dictated by the solid front glass panel. Because the chassis ships without pre-installed fans, builders must supply their own cooling hardware to establish effective airflow. The frame provides mounting points for up to eight 120 mm fans across the side intake tray, top exhaust, power supply shroud, and rear panel, as well as clearance for a 240 mm liquid cooling radiator along the side or top mounts. Without active fans, heat builds rapidly in the enclosed glass volume, but a properly configured fan array drawing cool air from the side intake vents successfully keeps mid-tier hardware within standard operating limits. Long-term reliability is reinforced by straightforward physical switches and standard front-panel wiring that bypass prone proprietary lighting hubs.
Technical Specifications
| Brand | DIYPC |
| Model | DIY-V8-ATX |
| Form Factor | ATX Mid Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Chassis Materials | SPCC Steel, Tempered Glass, ABS Polymer |
| Front I/O Ports | 1 x USB Type-C, 1 x USB 3.0, HD Audio (3.5 mm) |
| Expansion Slots | 7 |
| Internal Drive Bays | 1 x 3.5 in (89 mm) HDD, 2 x 2.5 in (64 mm) SSD |
| Maximum GPU Length | 13.0 in (330 mm) |
| Maximum CPU Cooler Height | 6.1 in (155 mm) |
| Maximum PSU Length | 6.3 in (160 mm) |
| Radiator Support | Up to 9.4 in (240 mm) side or top |
| Fan Mount Capacity | Up to 8 x 120 mm fans (Side, Top, Bottom, Rear) |
| Included Stock Fans | 0 (None pre-installed) |
| Dimensions | 13.56 x 11.00 x 15.68 in (344 x 279 x 398 mm) |
| Weight | 10.40 lbs (4.72 kg) |
Recommended Alternatives in PC Cases
At a Glance
How reliable is the DIYPC DIY-V8-ATX Review: Budget Panoramic Glass with Type-C according to Mizex audits?
Ideal for budget-focused system builders seeking a panoramic dual-glass showcase aesthetic with modern USB Type-C connectivity, provided you factor in the additional cost and effort of supplying your own case fans.
What are the known quirks or drawbacks of the DIYPC DIY-V8-ATX Review: Budget Panoramic Glass with Type-C?
Our reliability audit identified the following documented caveats:
- Ships with zero pre-installed fans, requiring builders to purchase and install aftermarket cooling
- CPU air cooler clearance is limited to 6.1 in (155 mm), restricting larger dual-tower heatsinks
- Lightweight, thin-gauge sheet metal construction exhibits minor chassis flex during component installation
What are the key engineering highlights of the DIYPC DIY-V8-ATX Review: Budget Panoramic Glass with Type-C?
The top strengths recorded in our evaluation include:
- Seamless dual tempered glass panels provide a 270-degree panoramic showcase view of internal hardware
- Top I/O panel includes a dedicated native USB Type-C port alongside USB 3.0
- Versatile fan mounting options supporting up to eight 120 mm fans and 240 mm liquid cooling radiators
- Strong entry-level value proposition for an ATX panoramic dual-chamber aesthetic
