- Standalone operation via integrated 3.5-inch IPS touchscreen running AlgoOS without requiring a tethered computer
- Modular aluminum LockFrame design with pre-tensioned belts facilitates rapid and square mechanical assembly
- Comprehensive hardware safety suite including flame detection, active tilt cutoff, and physical emergency stop
- Broad ecosystem upgradeability supporting swappable higher-power diode heads, air assist, and rotary rollers
- Open-frame structure lacks built-in fume containment or filtration, requiring dedicated external ventilation
- Exposed POM V-wheel rollers riding in extrusion tracks require regular cleaning to prevent soot and particulate buildup
Overview

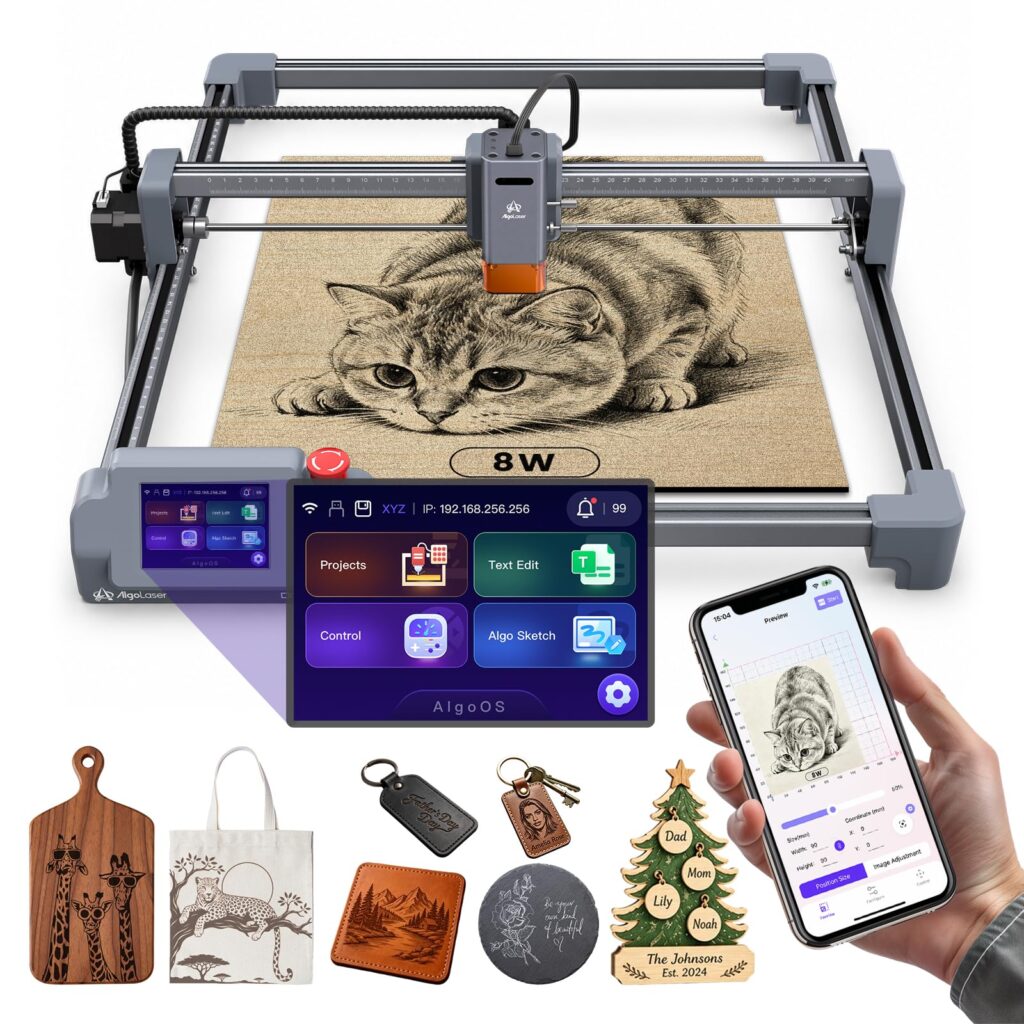

Constructed around interlocking extruded aluminum profiles with a 15.75 x 15.75 in (400 x 400 mm) working area, the gantry utilizes pre-tensioned GT2 timing belts and POM V-wheel rollers riding along precision extrusion tracks. The 24.80 x 10.63 x 5.51 in (630 x 270 x 140 mm) frame weighs 8.82 lbs (4.00 kg), maintaining structural squareness and minimizing racking during rapid axis translation up to 15,000 mm/min. Optical positioning is governed by an 8W continuous-wave blue diode laser operating at 455 ± 5 nm, utilizing compressed spot optics and a mechanical focusing gauge for repeatable material offsets.
Internal control is anchored by a 32-bit motherboard powered by an ESP32 wireless SoC running AlgoOS, interfacing directly with a 3.5-inch IPS color touchscreen. This architecture decouples routine G-code execution from host PC tethers, allowing autonomous job runs from onboard TF cards or Wi-Fi transfers alongside standard USB serial links to LightBurn and LaserGRBL. Integrated safety hardware includes multi-axis tilt and gyroscope detection, flame sensors, continuous laser motion watchdogs, a physical emergency stop switch, and a key-lock interlock to prevent unauthorized actuation.
Thermal dissipation relies on an integrated aluminum heatsink and a dedicated active cooling fan seated atop the 8W diode module, powered by a 24V / 3A external DC adapter. Stepper motor acoustics and high-RPM module fan operation dominate the acoustic profile under active engraving workloads. Because the open-gantry chassis lacks integrated exhaust filtration or an enclosed draft chamber, operating the machine demands dedicated external ventilation to manage particulate soot and prevent optical contamination across extended cutting cycles.
Technical Specifications
| Brand | AlgoLaser |
| Model | MK3 8W Laser Engraver |
| Laser Type | Diode Laser |
| Optical Output Power | 8W |
| Laser Wavelength | 455 ± 5 nm |
| Working Area | 15.75 x 15.75 in (400 x 400 mm) |
| Maximum Engraving Speed | 15,000 mm/min |
| Control Board | 32-bit MCU with ESP32 Wireless SoC |
| Operating System / UI | AlgoOS with 3.5-inch IPS Touchscreen |
| Connectivity | Wi-Fi (2.4 GHz), USB Type-B, TF Card |
| Motion System | GT2 Timing Belts with POM V-Wheel Rollers |
| Frame Construction | Extruded Aluminum Interlocking Profile |
| Dimensions | 24.80 x 10.63 x 5.51 in (630 x 270 x 140 mm) |
| Weight | 8.82 lbs (4.00 kg) |
| Power Input | 24V / 3A DC (100–240V AC, 50/60 Hz) |
| Supported Software | LightBurn, LaserGRBL, AlgoLaser App |
| Safety Features | Flame Detection, Gyroscope Tilt Sensor, Emergency Stop, Key Lock |
Primary Sources & Audited Citations
Recommended Alternatives in Laser Engravers & Cutters
At a Glance
How reliable is the AlgoLaser MK3 8W Laser Engraver Review: Standalone Touchscreen Meets Modular Diode according to Mizex audits?
A capable entry-level diode engraver whose offline touchscreen workflow and modular frame outshine the maintenance demands of an open-gantry workspace.
What are the known quirks or drawbacks of the AlgoLaser MK3 8W Laser Engraver Review: Standalone Touchscreen Meets Modular Diode?
Our reliability audit identified the following documented caveats:
- Open-frame structure lacks built-in fume containment or filtration, requiring dedicated external ventilation
- Exposed POM V-wheel rollers riding in extrusion tracks require regular cleaning to prevent soot and particulate buildup
What are the key engineering highlights of the AlgoLaser MK3 8W Laser Engraver Review: Standalone Touchscreen Meets Modular Diode?
The top strengths recorded in our evaluation include:
- Standalone operation via integrated 3.5-inch IPS touchscreen running AlgoOS without requiring a tethered computer
- Modular aluminum LockFrame design with pre-tensioned belts facilitates rapid and square mechanical assembly
- Comprehensive hardware safety suite including flame detection, active tilt cutoff, and physical emergency stop
- Broad ecosystem upgradeability supporting swappable higher-power diode heads, air assist, and rotary rollers
