- Factory pre-assembled unibody chassis eliminates manual framing and belt-tensioning calibration
- Ultra-fine 0.04 mm compressed laser spot produces crisp, high-resolution surface etching
- Integrated 32-bit controller supports both standard desktop GRBL software and untethered Wi-Fi app workflows
- Built-in gyroscope safety sensor automatically halts diode emission upon unexpected tilt or destabilization
- Modest 2.5W optical power severely limits cutting to paper, cardstock, and ultra-thin veneers
- Constrained 5.3 x 5.7 in (135 x 145 mm) working envelope cannot accommodate larger signage or craft blanks
- Open-chassis design lacks integrated fume filtration, necessitating external room ventilation during burns
Overview

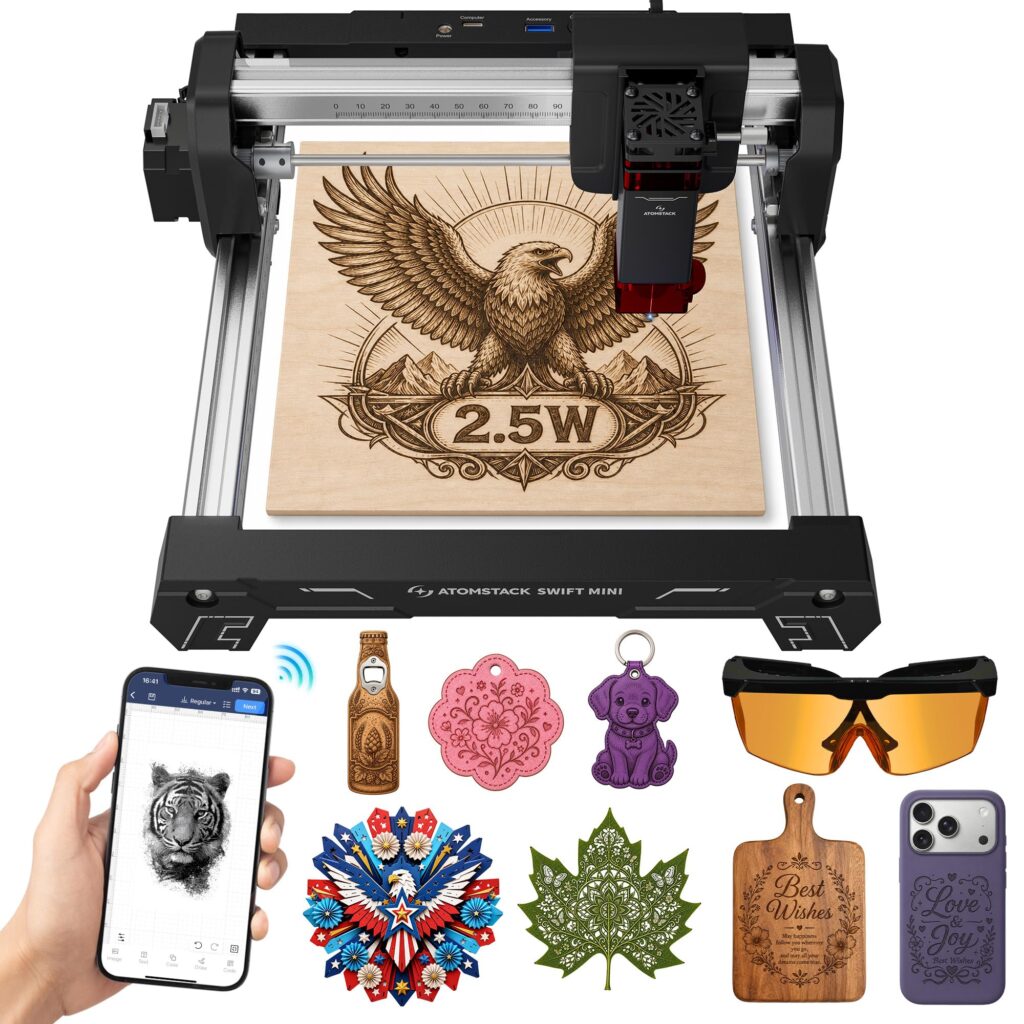

Eliminating the tedious multi-hour assembly and delicate belt-tuning rituals typical of open-frame DIY engravers, the ATOMSTACK Swift 2.5W arrives as a turnkey desktop unit ready to engrave right out of the box. Built around a rigid aluminum extrusion gantry with molded polymer structural brackets, the machine occupies a minimal footprint suited for crowded workbenches, classroom makerspaces, or home craft studios. Its compact 5.3 x 5.7 in (135 x 145 mm) work area deliberately trades large-format signage capacity for tighter mechanical tolerances, minimizing gantry deflection and eliminating the frame wobble that often compromises larger cantilevered budget machines.
At the core of the toolhead sits a 455 nm blue diode laser module producing 2.5W of optical output power focused through an ultra-fine 0.04 mm compressed spot. Active thermal management is handled by a dedicated heat sink and an integrated miniature cooling fan that blows continuous airflow over the diode core to prevent thermal droop during lengthy raster engraving jobs. Because the 2.5W diode generates negligible acoustic disturbance compared to high-power industrial multi-diode cutters or loud external air compressors, operating noise remains gentle and confined to subtle stepper movements and low-profile fan hum. However, the open-frame chassis lacks an integrated exhaust enclosure, which means users must ensure adequate room ventilation or use a dedicated extraction shroud when burning organic materials like wood, leather, or dark acrylic.
On the control side, an internal 32-bit mainboard processes motion coordinates with support for standard GRBL protocols, allowing seamless tethering to LightBurn and LaserGRBL over USB as well as untethered mobile project transfers via built-in Wi-Fi and hotspot modes. An integrated gyroscope provides automatic tilt and tip-over protection, instantly cutting laser power if the frame is bumped or destabilized during operation. While the 2.5W optical wattage restricts cutting capabilities to ultra-thin materials like cardstock or thin craft veneers, the unit delivers consistent, high-contrast surface etching with straightforward focus adjustments for beginners.
Technical Specifications
| Brand | AtomStack |
| Model | Swift 2.5W Laser Engraver |
| Laser Optical Output Power | 2.5W (2,500 mW) |
| Laser Diode Wavelength | 455 nm |
| Laser Spot Size | 0.04 mm compressed spot |
| Engraving Area | 5.3 x 5.7 in (135 x 145 mm) |
| Maximum Engraving Speed | 10,000 mm/min (393.7 in/min) |
| Machine Dimensions | 11.9 x 12.4 x 5.2 in (301 x 316 x 131 mm) |
| Weight | 5.73 lbs (2.60 kg) |
| Controller Architecture | 32-bit GRBL mainboard |
| Connectivity | USB, Wi-Fi, Hotspot AP mode |
| Supported Software | LightBurn, LaserGRBL, AtomStack Mobile App |
| Operating Systems | Windows, macOS, Android, iOS |
| Safety Features | Integrated gyroscope tilt/tip-over detection, flame sensor |
| Compatible Materials | Wood, bamboo, leather, dark acrylic, cardboard, coated metal |
Primary Sources & Audited Citations
Recommended Alternatives in 3D Printers
At a Glance
How reliable is the ATOMSTACK Swift 2.5W Laser Engraver Review: Turnkey Desktop Diode Marking according to Mizex audits?
An ideal plug-and-play desktop engraver for craft hobbyists prioritizing turnkey setup and detailed surface etching, provided you do not require cutting thick lumber or engraving broad panels.
What are the known quirks or drawbacks of the ATOMSTACK Swift 2.5W Laser Engraver Review: Turnkey Desktop Diode Marking?
Our reliability audit identified the following documented caveats:
- Modest 2.5W optical power severely limits cutting to paper, cardstock, and ultra-thin veneers
- Constrained 5.3 x 5.7 in (135 x 145 mm) working envelope cannot accommodate larger signage or craft blanks
- Open-chassis design lacks integrated fume filtration, necessitating external room ventilation during burns
What are the key engineering highlights of the ATOMSTACK Swift 2.5W Laser Engraver Review: Turnkey Desktop Diode Marking?
The top strengths recorded in our evaluation include:
- Factory pre-assembled unibody chassis eliminates manual framing and belt-tensioning calibration
- Ultra-fine 0.04 mm compressed laser spot produces crisp, high-resolution surface etching
- Integrated 32-bit controller supports both standard desktop GRBL software and untethered Wi-Fi app workflows
- Built-in gyroscope safety sensor automatically halts diode emission upon unexpected tilt or destabilization
