- Substantial 20 W optical diode power enables cutting thick hardwoods and acrylics
- Spacious 15.75 x 15.75 in (400 x 400 mm) usable engraving area
- Integrated Wi-Fi connectivity for convenient untethered operation
- Modular rotary accessory compatibility for cylindrical workpieces
- Open-frame construction lacks a protective enclosure and fume filtration standard
- Ships without an integrated air assist pump to mitigate cutting edge charring
- Relies on manual focal adjustment without a positioning camera
Overview

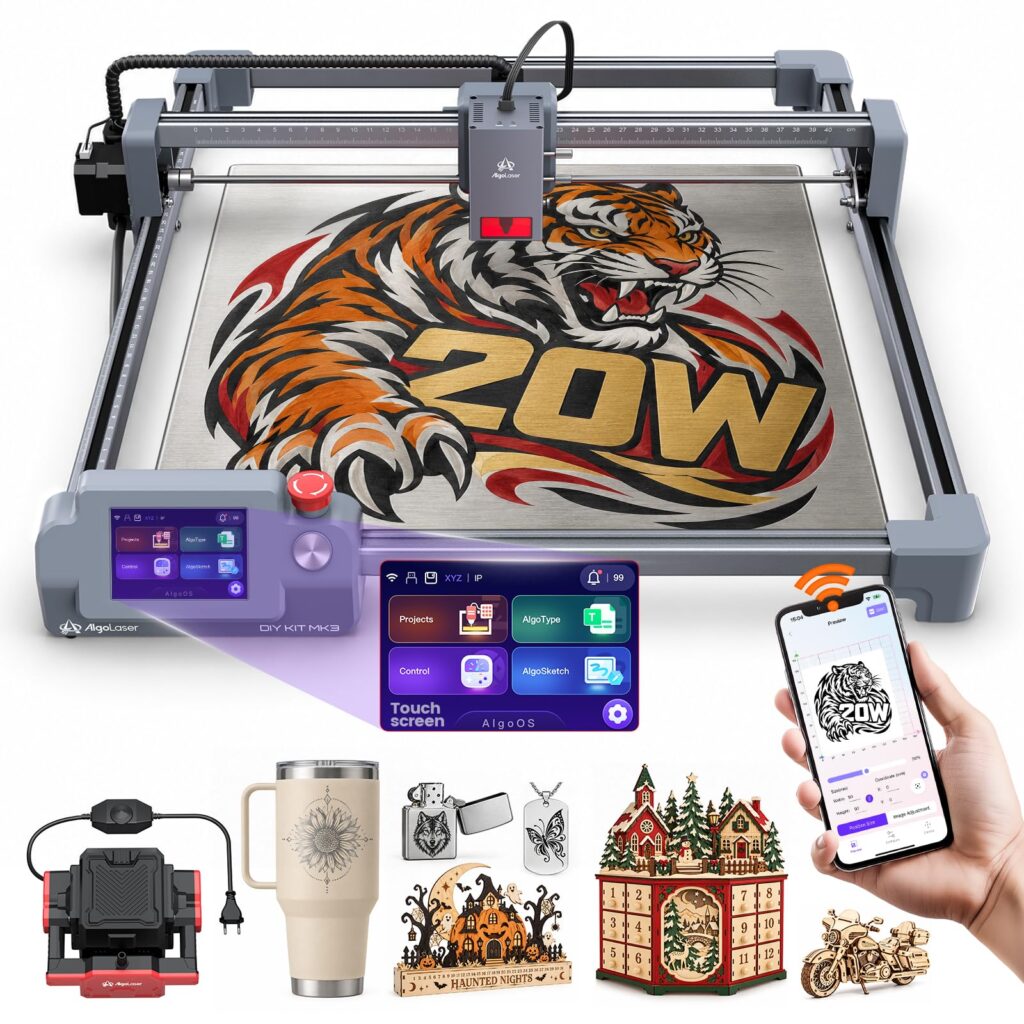

Achieving deep cutting passes and rapid surface scoring requires serious optical density, and pairing a 20 W diode module with an open gantry brings production-grade fabrication onto the desktop. The platform centers around a 450 nm laser emitter traveling across a 15.75 x 15.75 in (400 x 400 mm) working envelope at motion speeds reaching up to 15,000 mm/min. Operating with a 13.2 lb (6 kg) structural footprint, the machine balances portability with structural stability, allowing makers to process extensive sheets of plywood, leather, acrylic, and paper without occupying an entire workshop bay.
Day-to-day operation revolves around a streamlined workflow supported by onboard Wi-Fi for untethered job dispatch and rotary axis compatibility for cylindrical engraving. The mechanical layout relies on manual focal height adjustment, requiring users to set focus blocks before initiating jobs rather than relying on automatic z-stepping or visual alignment cameras. Because the chassis ships in an open-frame format without an integrated enclosure, workshop operators must account for ambient fume extraction and strict eye protection during active runs.
Material interaction highlights both the strengths and trade-offs of this direct diode configuration. While the 20 W output effortlessly slices dense hardwoods and dark acrylics, the absence of a bundled air assist system leaves kerfs susceptible to localized charring and soot redeposition during prolonged high-power passes. For hobbyists and prototyping shops willing to manage manual setup procedures and external ventilation, the gantry delivers reliable positional accuracy and versatile multi-material capability.
Technical Specifications
| Brand | AlgoLaser |
| Model | MK3 20W Laser Engraver |
| Laser Type | Diode Laser |
| Optical Output Power | 20 W |
| Laser Wavelength | 450 nm |
| Working Area | 15.75 x 15.75 in (400 x 400 mm) |
| Maximum Engraving Speed | 15,000 mm/min (590.6 in/min) |
| Focus Adjustment | Manual |
| Chassis Form Factor | Open-frame gantry |
| Chassis Weight | 13.23 lbs (6.0 kg) |
| Wireless Connectivity | Wi-Fi |
| Rotary Module Support | Yes |
| Compatible Materials | Wood, Acrylic, Leather, Cardboard, Fabric, Paper, Rubber |
Primary Sources & Audited Citations
Recommended Alternatives in Laser Engravers & Cutters
At a Glance
How reliable is the AlgoLaser MK3 20W Laser Engraver Review: High-Power Open-Frame Fabrication according to Mizex audits?
An accessible powerhouse for makers needing 20 W diode cutting capacity on a budget, provided they are prepared to supply their own enclosure, air assist, and safety ventilation.
What are the known quirks or drawbacks of the AlgoLaser MK3 20W Laser Engraver Review: High-Power Open-Frame Fabrication?
Our reliability audit identified the following documented caveats:
- Open-frame construction lacks a protective enclosure and fume filtration standard
- Ships without an integrated air assist pump to mitigate cutting edge charring
- Relies on manual focal adjustment without a positioning camera
What are the key engineering highlights of the AlgoLaser MK3 20W Laser Engraver Review: High-Power Open-Frame Fabrication?
The top strengths recorded in our evaluation include:
- Substantial 20 W optical diode power enables cutting thick hardwoods and acrylics
- Spacious 15.75 x 15.75 in (400 x 400 mm) usable engraving area
- Integrated Wi-Fi connectivity for convenient untethered operation
- Modular rotary accessory compatibility for cylindrical workpieces
