- Pre-assembled out of the box with zero mechanical squaring required
- Ultra-fine 0.04 x 0.04 mm focal spot delivers high resolution on miniature vector passes
- Sealed, soot-resistant mainboard housing protects sensitive circuitry from ablation debris
- Extruded aluminum motion rails with flex-wrap wire harness protection
- Constrained 130 x 130 mm (5.1 x 5.1 in) working area restricts larger workpiece fabrication
- Plastic frame end caps introduce minor structural compromise compared to full-metal unibodies
- Diode laser cannot process clear acrylic without applying an opaque coating or surface masking
Overview

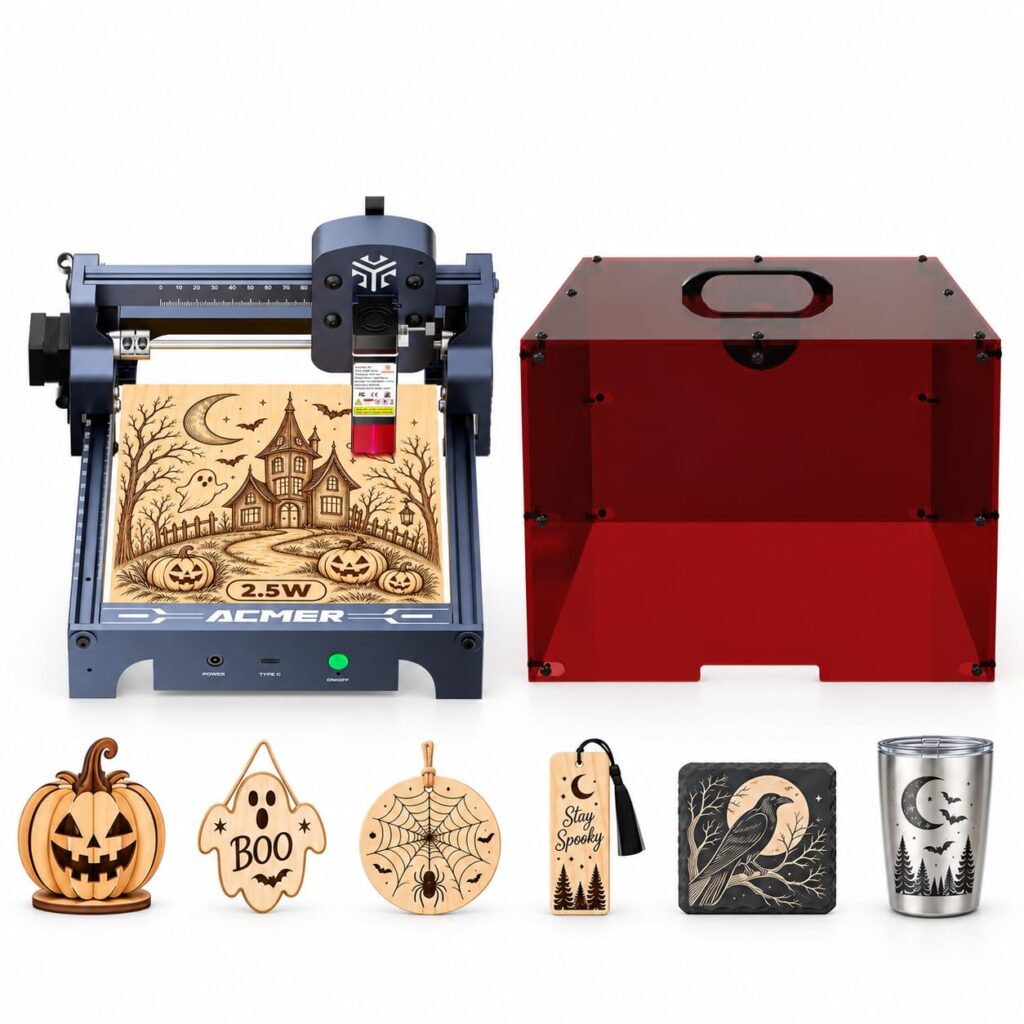

Centering on a compact 130 x 130 mm (5.1 x 5.1 in) operational envelope, motion mechanics leverage extruded aluminum X and Y axis rails paired with flex-wrap protective cable sleeving. Factory pre-assembly eliminates initial gantry squaring and tensioning errors typical of entry-level DIY kits, allowing direct benchtop deployment out of the box. Structural rigidity is maintained across the linear aluminum extrusions, though polymer frame end caps substitute for a continuous unibody metal frame, reducing overall chassis mass while adequately absorbing low-frequency stepper vibrations at translation velocities up to 6000 mm/min (236.2 in/min).
Optical output relies on a focused Class 4 diode laser module available in 2.5W, 3.5W, or 6W configurations, producing an ultra-fine 0.04 x 0.04 mm (0.0016 x 0.0016 in) focal spot designed for dense vector lines and grayscale shading. Control and instruction streaming run on industry-standard GRBL firmware, maintaining direct compatibility with standard laser toolchain controllers without proprietary software lock-in. To safeguard the logic layer from environmental hazards during material ablation, the mainboard is sealed within a dedicated soot- and smoke-resistant enclosure, preventing conductive carbon particulate accumulation across sensitive surface-mount circuitry.
Thermal dissipation from the diode head is sustained during continuous engraving runs across pine, basswood, birch plywood, dark acrylic, and vegetable-tanned leather. However, optical physics dictate that clear and transparent acrylics remain completely impassive to the diode wavelength unless a sacrificial opaque coating or masking is applied. While the compact working perimeter restricts through-cut throughput and large workpiece fabrication, the sealed electronics, standardized GRBL execution, and tight optical focal point establish an accurate micro-scale desktop fabrication tool.
Technical Specifications
| Brand | ACMER |
| Model | S1 Laser Engraver |
| Laser Type | Diode Laser |
| Laser Safety Class | Class 4 |
| Optical Output Power | 2.5W, 3.5W, 6W options |
| Laser Spot Size | 0.04 x 0.04 mm (0.0016 x 0.0016 in) |
| Engraving Working Area | 130 x 130 mm (5.1 x 5.1 in) |
| Max Engraving Speed | 6000 mm/min (236.2 in/min) |
| Firmware Control Protocol | GRBL |
| Frame Construction | Extruded aluminum rails with polymer end caps |
| Electronics Enclosure | Enclosed soot- and smoke-resistant mainboard housing |
| Cable Management | Flex wrap protective sleeving |
| Assembly State | Pre-assembled factory unit |
| Supported Materials | Wood (basswood, pine, birch plywood), dark acrylic, leather, coated/brushed aluminum |
Primary Sources & Audited Citations
Recommended Alternatives in 3D Printers
At a Glance
How reliable is the ACMER S1 Laser Engraver Review: Compact Diode Micro-Engraving Precision according to Mizex audits?
Ideal for hobbyists and craftsmen prioritizing out-of-the-box micro-detail engraving on wood and leather, provided the 130 x 130 mm (5.1 x 5.1 in) working area accommodates your projects.
What are the known quirks or drawbacks of the ACMER S1 Laser Engraver Review: Compact Diode Micro-Engraving Precision?
Our reliability audit identified the following documented caveats:
- Constrained 130 x 130 mm (5.1 x 5.1 in) working area restricts larger workpiece fabrication
- Plastic frame end caps introduce minor structural compromise compared to full-metal unibodies
- Diode laser cannot process clear acrylic without applying an opaque coating or surface masking
What are the key engineering highlights of the ACMER S1 Laser Engraver Review: Compact Diode Micro-Engraving Precision?
The top strengths recorded in our evaluation include:
- Pre-assembled out of the box with zero mechanical squaring required
- Ultra-fine 0.04 x 0.04 mm focal spot delivers high resolution on miniature vector passes
- Sealed, soot-resistant mainboard housing protects sensitive circuitry from ablation debris
- Extruded aluminum motion rails with flex-wrap wire harness protection
