Side-by-Side Comparison
Orange Pi Zero 4 4GB vs Quectel SE200ZC-AP
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS
Composite Score:
4.3
/ 5.0

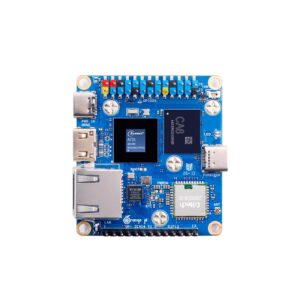

An ultra-compact octa-core embedded platform packing a 3 TOPS NPU, dual 4K display pipelines, and PCIe 3.0 expansion onto a 50 x 55 mm board.
▲ DOCUMENTED QUIRKS
Composite Score:
4.3
/ 5.0
A highly capable, compact SBC optimized for visual AI and industrial connectivity with excellent passive thermal handling.
⚖️
Mizex Comparative Audit Verdict
Both the Orange Pi Zero 4 4GB and Quectel SE200ZC-AP share an identical composite score of 4.3. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Orange Pi Zero 4 4GB
Quectel SE200ZC-AP
Engineering & Architecture
(30%)
Winner: Orange Pi Zero 4 4GB (+0.1)
4.4
4.3
Build Quality & Materials
(20%)
Winner: Orange Pi Zero 4 4GB (+0.2)
4.2
4.0
Thermal, Power & Acoustics
(20%)
Winner: Orange Pi Zero 4 4GB (+0.1)
4.0
3.9
Real-World Reliability
(20%)
Winner: Quectel SE200ZC-AP (+0.3)
4.2
4.5
Buyer Value & Upgrades
(10%)
Winner: Orange Pi Zero 4 4GB (+0.1)
4.7
4.6
Orange Pi Zero 4 4GB: Strengths & Caveats
✔ Advantages
- Dense heterogeneous octa-core CPU paired with an integrated 3 TOPS NPU and real-time RISC-V coprocessor
- Dual independent 4K 60Hz display pipelines via Mini HDMI 2.0 and USB Type-C DisplayPort Alt Mode
- Modern networking suite with Wi-Fi 6, Bluetooth 5.4, and Gigabit Ethernet in a 50 x 55 mm footprint
- Versatile expansion capabilities including single-lane PCIe 3.0 FPC and dual 4-lane MIPI CSI camera interfaces
✖ Documented Caveats
- PCIe 3.0 bus expansion relies on a 16-pin flexible flat cable (FPC) socket rather than a standard M.2 slot
- Display output requires a Mini HDMI adapter or specialized cable for conventional monitors
- High-speed onboard eMMC or UFS 3.0 storage requires specific hardware footprint configurations
Quectel SE200ZC-AP: Strengths & Caveats
✔ Advantages
- Supports up to five cameras via MIPI CSI and DVP interfaces
- Integrated Rockchip NPU with 3 TOPS performance for edge AI tasks
- Compact 40x40mm form factor ideal for space-constrained industrial designs
✖ Documented Caveats
- Passive thermal management limits sustained peak performance in high-heat environments without airflow
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Orange Pi Zero 4 4GB | Quectel SE200ZC-AP |
|---|---|---|
| Brand DIFF | Orange Pi | Quectel |
| Model DIFF | Zero 4 4GB | Quectel SE200ZC-AP |
| Processor DIFF | Allwinner A733 (2x Cortex-A76 @ up to 2.00 GHz + 6x Cortex-A55 @ up to 1.79 GHz) | — |
| Real Time Coprocessor DIFF | RISC-V E902 core @ up to 200 MHz | — |
| Graphics Processor DIFF | Imagination Technologies PowerVR BXM-4-64 MC1 | — |
| Neural Processing Unit DIFF | 3 TOPS (INT8 / INT16 / FP16 / BF16) | — |
| Memory DIFF | 4GB LPDDR5 / LPDDR4X / LPDDR4 | — |
| Storage Options DIFF | MicroSD slot (up to 128GB), onboard footprint for eMMC (up to 32GB) or UFS 3.0 (up to 128GB) | — |
| Video Outputs DIFF | 1x Mini HDMI 2.0 (up to 4K@60fps), 1x USB Type-C DisplayPort 1.4 Alt Mode (up to 4K@60fps) | — |
| Video Decode & Encode DIFF | Decode: 8K@24fps (H.265 / VP9 / AVS2); Encode: 4K@30fps (H.265 / H.264) | — |
| Networking DIFF | 1x Gigabit Ethernet RJ45 (MotorComm YT8531C) | 1x GMAC (Gigabit Ethernet or Fast Ethernet PHY) |
| Wireless Connectivity DIFF | Wi-Fi 6 and Bluetooth 5.4 (Cdtech 20800D8-00) with IPEX antenna connector | — |
| Camera Interfaces DIFF | 2x 4-lane MIPI CSI | — |
| Expansion Interfaces DIFF | 16-pin FPC (PCIe 3.0 1-lane & USB 3.1), 26-pin GPIO header, 13-pin expansion header | — |
| USB Ports DIFF | 1x USB 3.1 OTG Type-C (with DisplayPort 1.4 Alt Mode) | — |
| Cooling Header DIFF | Fan interface connector support | — |
| Dimensions DIFF | 1.97 x 2.17 in (50 x 55 mm) | — |
| SoC DIFF | — | Rockchip RV1126B / RV1126BJ |
| CPU DIFF | — | Quad-core Arm Cortex-A53 up to 1.6 GHz |
| L1 Cache DIFF | — | 32KB I-Cache, 32KB D-Cache per core |
| L2 Cache DIFF | — | 512KB Unified |
| GPU DIFF | — | 2D Graphics Engine |
| ISP DIFF | — | 12MP ISP, 8MP AI-ISP |
| NPU DIFF | — | Rockchip NPU engine up to 3 TOPS (INT8) |
| Video Decoder DIFF | — | H.265/H.264 up to 3840x2160 @ 30 FPS |
| Video Encoder DIFF | — | H.265, H.264, JPEG up to 3840x2160 @ 45 FPS |
| JPEG Decoder DIFF | — | Supported |
| System Memory DIFF | — | Up to 4GB LPDDR4x (1GB, 2GB, or 4GB options) |
| Storage DIFF | — | 64GB eMMC flash (default), 2x SDIO for SD/microSD |
| Camera Interfaces DIFF | — | 2x 4-lane MIPI CSI D-PHY v1.2, 1x DVP |
| Max Cameras DIFF | — | 5 cameras (up to 12MP via DVP) |
| Display Interface DIFF | — | 4-lane MIPI DSI up to 1920x1080 @ 60fps, LCDC multiplexed |
| USB DIFF | — | USB 3.0 (OTG), USB 2.0 (Host) |
| Serial DIFF | — | Up to 8x UART |
| GPIO DIFF | — | Up to 115 GPIOs |
| I2C DIFF | — | 6x I2C |
| ADC DIFF | — | 22 ADC |
| SPI DIFF | — | 2x SPI |
| PWM DIFF | — | 3x PWM |
| CAN DIFF | — | 2x CAN FD |
| Audio DIFF | — | 3x SAI, 1x PDM (up to 8 channels), 2x DSM, 2x MIC |
| Operating Temp Commercial DIFF | — | -25°C to +75°C |
| Operating Temp Industrial DIFF | — | -35°C to +80°C |
