Side-by-Side Comparison
MSI B550M Gaming Plus WIFI6E vs ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS

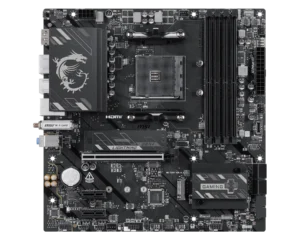

MSI B550M Gaming Plus WIFI6E
Composite Score:
4.3
/ 5.0
A well-equipped micro-ATX AM4 motherboard offering PCIe 4.0 speed, Wi-Fi 6E, and Flash BIOS convenience alongside modest 1GbE and audio hardware.
★ Recommended Winner
● HIGHLY RATED
ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo
Composite Score:
4.4
/ 5.0
A finely engineered AMD B850 ATX motherboard combining resilient 14+2+2 80A power stages, PCIe 5.0 capability, and exemplary tool-free hardware ergonomics.
⚖️
Mizex Comparative Audit Verdict
The ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo achieves the higher Mizex Composite Score (4.4 vs 4.3), leading across 3 of 5 engineering pillars. With an advantage in Engineering & Architecture, Build Quality & Materials, Thermal, Power & Acoustics, it represents the stronger technical recommendation.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
MSI B550M Gaming Plus WIFI6E
ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo
Engineering & Architecture
(30%)
Winner: ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo (+0.2)
4.3
4.5
Build Quality & Materials
(20%)
Winner: ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo (+0.2)
4.2
4.4
Thermal, Power & Acoustics
(20%)
Winner: ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo (+0.1)
4.2
4.3
Real-World Reliability
(20%)
Tie
4.4
4.4
Buyer Value & Upgrades
(10%)
Winner: MSI B550M Gaming Plus WIFI6E (+0.2)
4.6
4.4
MSI B550M Gaming Plus WIFI6E: Strengths & Caveats
✔ Advantages
- Dedicated PCIe 4.0 x16 expansion and high-speed PCIe 4.0 x4 primary M.2 slot
- Integrated tri-band Wi-Fi 6E and Bluetooth 5.3 wireless connectivity
- Four DDR4 memory slots supporting up to 128GB capacity and 4400+ MHz OC
- Dedicated Flash BIOS port and onboard EZ Debug LEDs for easy troubleshooting
✖ Documented Caveats
- Equipped with standard 1Gbps Ethernet instead of 2.5Gbps
- Utilizes an entry-level Realtek ALC897 audio codec
- Secondary M.2 storage slot is limited to PCIe 3.0 bandwidth
ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo: Strengths & Caveats
✔ Advantages
- Resilient 14+2+2 power stage delivery rated at 80A with high-conductivity VRM heatsinks
- Comprehensive high-speed connectivity including PCIe 5.0 graphics and storage, Wi-Fi 7, and 5Gb Ethernet
- Class-leading EZ DIY builder conveniences including PCIe Slot Q-Release, tool-free M.2 Q-Release, and Q-Antenna
- High-fidelity SupremeFX ALC4080 audio implementation with dedicated Savitech SV3H712 amplifier
✖ Documented Caveats
- Secondary full-length expansion slot is restricted to PCIe 4.0 x4 bandwidth via the chipset
- Lacks a secondary physical BIOS chip for dual hardware-level redundancy
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | MSI B550M Gaming Plus WIFI6E | ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo |
|---|---|---|
| Brand DIFF | MSI | ASUS |
| Model DIFF | B550M Gaming Plus WIFI6E | ASUS ROG Strix B850-A Gaming Wi-Fi7 Neo |
| Form Factor DIFF | Micro ATX (243.84 x 243.84 mm) | — |
| CPU Socket DIFF | AMD AM4 | — |
| Chipset DIFF | AMD B550 | — |
| CPU Support DIFF | AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series Desktop Processors | — |
| Memory Type DIFF | DDR4 | — |
| Memory Slots DIFF | 4 | — |
| Max Memory Capacity DIFF | 128GB | — |
| Memory Channel Architecture DIFF | Dual-channel | — |
| Max Memory Speed DIFF | Up to 4400+ MHz (A-XMP OC) | — |
| PCIe Expansion Slots DIFF | 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 | — |
| Storage Interface DIFF | 1x M.2 Gen4 x4 (PCIe 4.0/SATA), 1x M.2 Gen3 x4, 4x SATA 6Gb/s | — |
| RAID Support DIFF | RAID 0, 1, 10 (SATA); RAID 0, 1 (M.2 NVMe) | — |
| Wireless Connectivity DIFF | Wi-Fi 6E (2.4/5/6 GHz, MU-MIMO), Bluetooth 5.3 | — |
| Ethernet LAN DIFF | Realtek RTL8111H 1Gbps | — |
| Audio Codec DIFF | Realtek ALC897 7.1-Channel HD Audio | — |
| Display Outputs DIFF | 1x HDMI 2.1 (up to 4K 60Hz), 1x DisplayPort 1.4 (up to 4K 60Hz) | — |
| USB Ports DIFF | 1x USB 5Gbps Type-C front header, 6x USB 5Gbps Type-A, 6x USB 2.0 | — |
| Cooling Headers DIFF | 5x fan/pump headers | — |
| RGB Headers DIFF | 2x Addressable V2 RGB, 2x RGB LED | — |
| Diagnostics & Maintenance DIFF | 4x EZ Debug LED, Flash BIOS Port, TPM 2.0 header | — |
| Form Factor DIFF | — | ATX |
| Dimensions Mm DIFF | — | 305 x 244 |
| Cpu Socket DIFF | — | Socket AM5 |
| Supported Processors DIFF | — | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset DIFF | — | AMD B850 |
| Power Stages DIFF | — | 14+2+2 (80A per stage) |
| Power Connectors DIFF | — | Dual 8-pin ProCool |
| Memory Type DIFF | — | DDR5 |
| Memory Slots DIFF | — | 4 |
| Max Memory Capacity Gb DIFF | — | 256 |
| Memory Speed Support DIFF | — | DDR5 9000+ MT/s (OC) |
| Primary Pcie Slot DIFF | — | 1 x PCIe 5.0 x16 SafeSlot (CPU) |
| Secondary Pcie Slot DIFF | — | 1 x PCIe 4.0 x16 (operates at x4, Chipset) |
| M2 Storage Slots DIFF | — | 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) |
| Wireless Networking DIFF | — | Wi-Fi 7 (802.11be) + Bluetooth 5.4 |
| Wired Networking DIFF | — | Realtek 5Gb Ethernet |
| Audio Codec DIFF | — | ROG SupremeFX ALC4080 7.1 HD Audio |
| Audio Amplifier DIFF | — | Savitech SV3H712 AMP |
| Audio Snr DIFF | — | 120 dB output / 110 dB input |
| Front Panel Usb DIFF | — | 1 x USB 20Gbps Type-C, 2 x USB 5Gbps, 3 x USB 2.0 |
| Cooling Headers DIFF | — | 1 x AIO Pump, 4 x 4-pin PWM Chassis Fan |
| Bios Rom Size DIFF | — | 64MB |
| Diagnostic Features DIFF | — | PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Latch, Q-Antenna, Q-LED, BIOS FlashBack, Clear CMOS |
| Warranty Years DIFF | — | 3 |
