MSI B550M Gaming Plus WIFI6E

MSI B550M Gaming Plus WIFI6E
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: An ideal choice for budget-focused builders maximizing AM4 Ryzen processors with modern Wi-Fi 6E, though users needing 2.5GbE LAN or high-end integrated audio should look elsewhere.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.3 / 5.0
Build Quality & Physical Design (20%) 4.2 / 5.0
Thermal, Power & Acoustics (20%) 4.2 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.6 / 5.0
Score Rationale
Exceptional platform value (4.6) and mature Socket AM4 versatility anchor this rating, bringing modern tri-band Wi-Fi 6E, a front USB-C header, and Flash BIOS maintenance to budget-conscious builders. Engineering and architecture (4.3) properly routes PCIe 4.0 lanes to both the primary x16 slot and the main M.2 connector, though entry-level components like the 1Gbps Realtek Ethernet controller, basic ALC897 audio codec, and PCIe 3.0 secondary M.2 slot reflect deliberate cost controls. Build quality (4.2) exhibits dependable PCB manufacturing with sturdy DIMM retention and reinforced mounting points across the micro-ATX chassis. Thermal and acoustic management (4.2) is well-supported by five dedicated fan and pump headers facilitating extensive cooling profiles across system enclosures. Long-term reliability (4.4) is substantiated by hardware EZ Debug LEDs, robust BIOS recovery options, and a platform free from active safety recalls.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

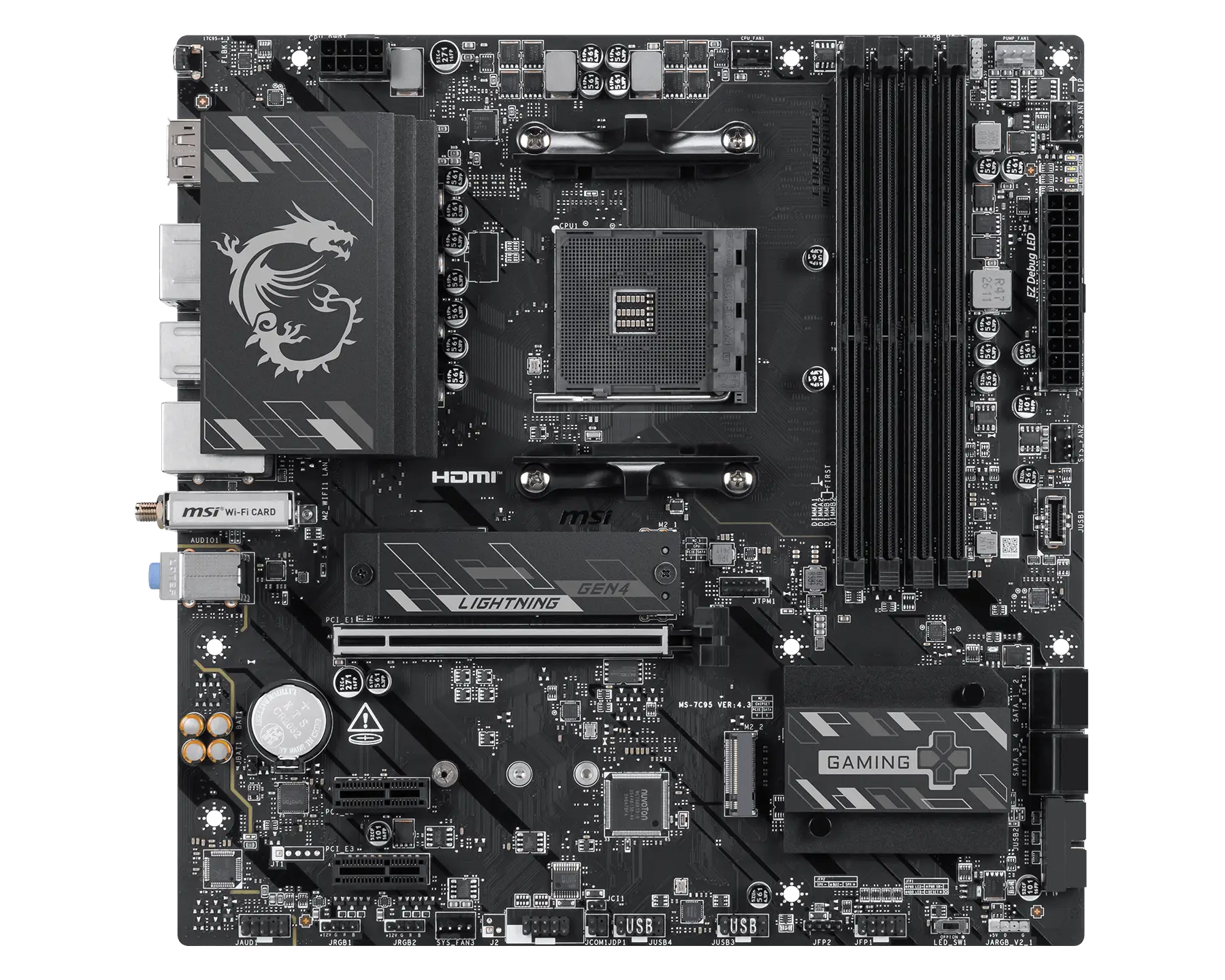

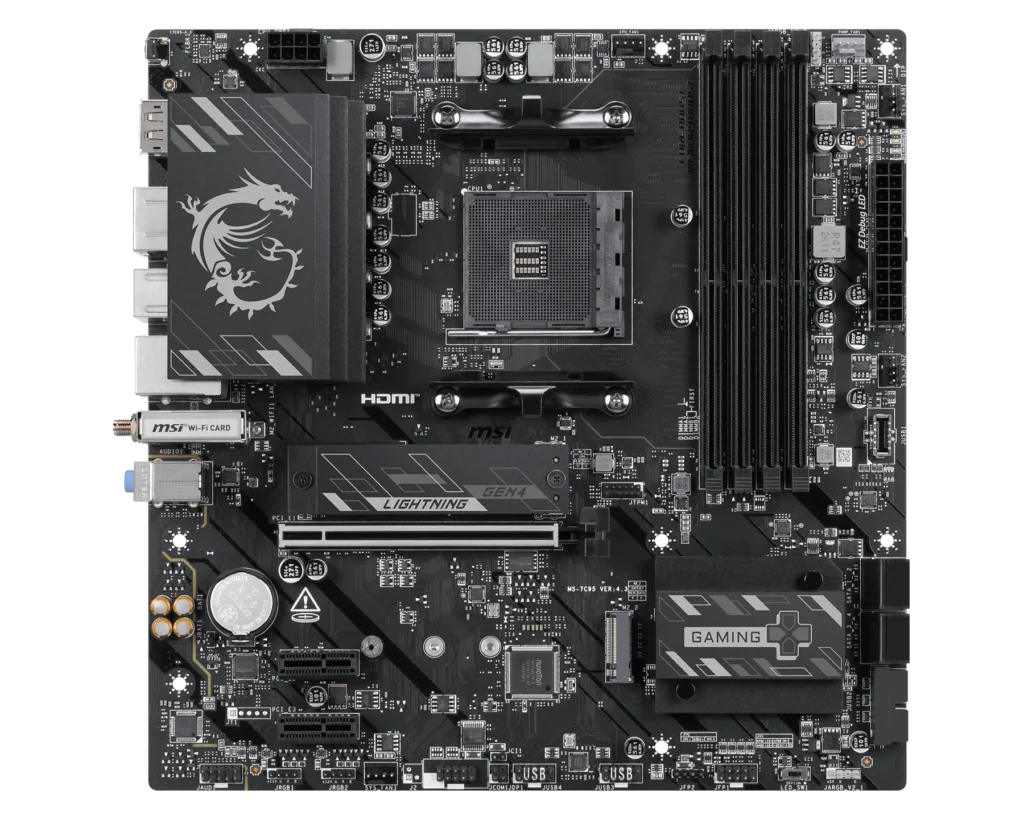

Spanning a standard 243.84 x 243.84 mm micro-ATX footprint, this Socket AM4 platform routes primary PCIe 4.0 bandwidth directly from AMD Ryzen 3000 and 5000-series processors while allocating chipset-bound lanes through the AMD B550 controller. The board supplies a full-length PCIe 4.0 x16 slot for discrete GPUs and a dedicated primary M.2 Gen4 x4 slot directly connected to the CPU socket, alongside two PCIe 3.0 x1 expansion slots and a secondary chipset-linked M.2 Gen3 x4 interface. Memory topology features four DDR4 DIMM slots configured for dual-channel operation, accommodating up to 128GB of system memory with validated A-XMP overclocking profiles reaching beyond 4400 MHz.

Peripheral connectivity integrates tri-band Wi-Fi 6E across the 2.4 GHz, 5 GHz, and 6 GHz spectrums paired with Bluetooth 5.3, supplemented by a native front-panel USB 5Gbps Type-C header and six rear Type-A ports. Thermal and acoustic regulation across the system enclosure is managed by five 4-pin fan and pump headers distributed along the PCB perimeter, providing PWM and DC voltage curve controls for CPU coolers and case ventilation. Video outputs include HDMI 2.1 and DisplayPort 1.4 for processors with integrated graphics, while legacy storage is accommodated by four right-angle SATA 6Gb/s ports supporting RAID 0, 1, and 10 arrays.

To simplify deployment and maintenance across the mature AM4 lifecycle, the board includes hardware-level troubleshooting tools featuring four EZ Debug diagnostic LEDs and an external Flash BIOS button that allows firmware flashing without a CPU or memory installed. Practical compromises reflect its budget-conscious positioning: wired networking relies on a Realtek RTL8111H 1Gbps Ethernet controller rather than modern 2.5GbE, integrated sound processing is handled by an entry-level Realtek ALC897 codec, and the secondary NVMe interface remains restricted to PCIe 3.0 bandwidth.

Technical Specifications

Brand MSI
Model B550M Gaming Plus WIFI6E
Form Factor Micro ATX (243.84 x 243.84 mm)
CPU Socket AMD AM4
Chipset AMD B550
CPU Support AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series Desktop Processors
Memory Type DDR4
Memory Slots 4
Max Memory Capacity 128GB
Memory Channel Architecture Dual-channel
Max Memory Speed Up to 4400+ MHz (A-XMP OC)
PCIe Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Storage Interface 1x M.2 Gen4 x4 (PCIe 4.0/SATA), 1x M.2 Gen3 x4, 4x SATA 6Gb/s
RAID Support RAID 0, 1, 10 (SATA); RAID 0, 1 (M.2 NVMe)
Wireless Connectivity Wi-Fi 6E (2.4/5/6 GHz, MU-MIMO), Bluetooth 5.3
Ethernet LAN Realtek RTL8111H 1Gbps
Audio Codec Realtek ALC897 7.1-Channel HD Audio
Display Outputs 1x HDMI 2.1 (up to 4K 60Hz), 1x DisplayPort 1.4 (up to 4K 60Hz)
USB Ports 1x USB 5Gbps Type-C front header, 6x USB 5Gbps Type-A, 6x USB 2.0
Cooling Headers 5x fan/pump headers
RGB Headers 2x Addressable V2 RGB, 2x RGB LED
Diagnostics & Maintenance 4x EZ Debug LED, Flash BIOS Port, TPM 2.0 header
✔ Pros
  • Dedicated PCIe 4.0 x16 expansion and high-speed PCIe 4.0 x4 primary M.2 slot
  • Integrated tri-band Wi-Fi 6E and Bluetooth 5.3 wireless connectivity
  • Four DDR4 memory slots supporting up to 128GB capacity and 4400+ MHz OC
  • Dedicated Flash BIOS port and onboard EZ Debug LEDs for easy troubleshooting
✖ Cons
  • Equipped with standard 1Gbps Ethernet instead of 2.5Gbps
  • Utilizes an entry-level Realtek ALC897 audio codec
  • Secondary M.2 storage slot is limited to PCIe 3.0 bandwidth
📋
