Side-by-Side Comparison
Fractal Design Define One Dark Solid vs Phanteks EX5 MAX
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0

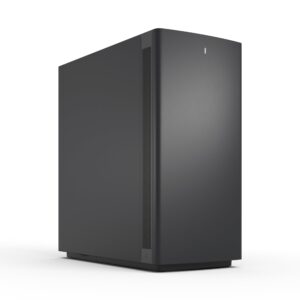

A rigid, bitumen-lined mid-tower chassis that pairs premium vibration dampening and back-connect motherboard compatibility with effective GPU-directed cooling.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
Turnkey mid-tower chassis integrating a 360 mm AIO liquid cooler, concealed tubing architecture, dedicated VRM spot cooling, and an embedded 6-inch telemetry display.
⚖️
Mizex Comparative Audit Verdict
Both the Fractal Design Define One Dark Solid and Phanteks EX5 MAX share an identical composite score of 4.4. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Fractal Design Define One Dark Solid
Phanteks EX5 MAX
Engineering & Architecture
(30%)
Winner: Phanteks EX5 MAX (+0.1)
4.4
4.5
Build Quality & Materials
(20%)
Winner: Fractal Design Define One Dark Solid (+0.2)
4.6
4.4
Thermal, Power & Acoustics
(20%)
Winner: Phanteks EX5 MAX (+0.4)
4.1
4.5
Real-World Reliability
(20%)
Winner: Fractal Design Define One Dark Solid (+0.2)
4.5
4.3
Buyer Value & Upgrades
(10%)
Tie
4.4
4.4
Fractal Design Define One Dark Solid: Strengths & Caveats
✔ Advantages
- Heavy-gauge steel construction with dual bitumen-lined solid panels delivers outstanding acoustic dampening.
- Three pre-installed Momentum 140 mm LCP-blade fans combined with an angled GPU air guide ensure directed airflow.
- Native support for back-connect motherboards (ASUS BTF, MSI Project Zero) with 1.46 in (37 mm) of rear cable routing space.
- Convenient tool-less ball-and-socket panel retention mechanism and front 20 Gbps USB-C connectivity.
✖ Documented Caveats
- Roof radiator compatibility is limited to 280 mm, preventing top-mounted 360 mm AIO installations.
- Storage capacity is reduced to four drives (two 3.5-inch and two 2.5-inch), lacking the expansive drive-cage modularity of older Define series cases.
- Solid front panel design naturally trades peak intake airflow velocity for superior noise containment.
Phanteks EX5 MAX: Strengths & Caveats
✔ Advantages
- Factory-integrated 360 mm Glacier One 360S25-SE liquid cooler with concealed tubing architecture
- Embedded 6-inch telemetry display mounted flush behind the tempered glass side panel
- Dedicated S25-120 mm mainboard rear fan targeting VRM and memory component cooling
- Multi-chamber compartmentalized layout isolates component thermal zones for direct fresh air intake
✖ Documented Caveats
- Maximum GPU clearance capped at 358 mm restricts certain oversized custom graphics cards
- Factory-integrated AIO liquid loop increases replacement complexity compared to modular cooling configurations
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Fractal Design Define One Dark Solid | Phanteks EX5 MAX |
|---|---|---|
| Brand DIFF | Fractal Design | Phanteks |
| Model DIFF | Define One Dark Solid | EX5 MAX |
| Chassis Form Factor DIFF | Mid-Tower | — |
| Dimensions With Feet DIFF | 19.0 x 9.25 x 19.69 in (482 x 235 x 500 mm) | — |
| Dimensions Without Feet DIFF | 19.0 x 9.25 x 19.29 in (482 x 235 x 490 mm) | — |
| Net Weight DIFF | 24.47 lbs (11.1 kg) | — |
| Side Panels DIFF | Dual solid steel panels with bitumen sound-dampening lining | — |
| Motherboard Support DIFF | E-ATX (up to 10.9 in / 277 mm), ATX, Micro-ATX, Mini-ITX | — |
| Back Connect Compatibility DIFF | ASUS BTF, MSI Project Zero, Gigabyte Project Stealth | — |
| Front Io Ports DIFF | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.2 Gen 1 Type-A (5 Gbps), 1x 3.5 mm audio/mic combo | — |
| Included Fans DIFF | 3x Momentum 140 mm PWM fans (Liquid Crystal Polymer blades) | — |
| Total Fan Mount Capacity DIFF | Up to 7x 120 mm or 7x 140 mm | — |
| Radiator Support Front DIFF | Up to 360 mm / 280 mm | — |
| Radiator Support Top DIFF | Up to 280 mm / 240 mm | — |
| Radiator Support Rear DIFF | 120 mm | — |
| Max Gpu Length DIFF | 14.49 in (368 mm) | — |
| Max Cpu Cooler Height DIFF | 6.73 in (171 mm) | — |
| Max Psu Length DIFF | 7.09 in (180 mm) | — |
| Cable Routing Clearance DIFF | 1.46 in (37 mm) | — |
| Drive Bays Included DIFF | 2x 3.5"/2.5" drive trays, 2x dedicated 2.5" drive brackets | — |
| Expansion Slots DIFF | 7 (bridgeless) | — |
| Dust Filtration DIFF | Front and bottom removable nylon filters; integrated top ventilation mesh | — |
| Form Factor DIFF | — | Mid Tower |
| Chassis Architecture DIFF | — | Compartmentalized multi-chamber airflow design |
| Integrated Liquid Cooler DIFF | — | Glacier One 360S25-SE (360 mm AIO with concealed tubing) |
| Radiator Support DIFF | — | 360 mm (14.17 in) |
| Pre Installed Fans DIFF | — | 1x S25-120 mm mainboard rear fan |
| Integrated Display DIFF | — | 6-inch display behind tempered glass |
| Maximum GPU Length DIFF | — | 358 mm |
| Side Panel DIFF | — | Tempered glass |
| Lighting DIFF | — | Integrated ARGB (NEXLINQ ecosystem & motherboard sync compatible) |
| Control Software DIFF | — | Nexlinq |
