- Heavy-gauge steel construction with dual bitumen-lined solid panels delivers outstanding acoustic dampening.
- Three pre-installed Momentum 140 mm LCP-blade fans combined with an angled GPU air guide ensure directed airflow.
- Native support for back-connect motherboards (ASUS BTF, MSI Project Zero) with 1.46 in (37 mm) of rear cable routing space.
- Convenient tool-less ball-and-socket panel retention mechanism and front 20 Gbps USB-C connectivity.
- Roof radiator compatibility is limited to 280 mm, preventing top-mounted 360 mm AIO installations.
- Storage capacity is reduced to four drives (two 3.5-inch and two 2.5-inch), lacking the expansive drive-cage modularity of older Define series cases.
- Solid front panel design naturally trades peak intake airflow velocity for superior noise containment.
Overview

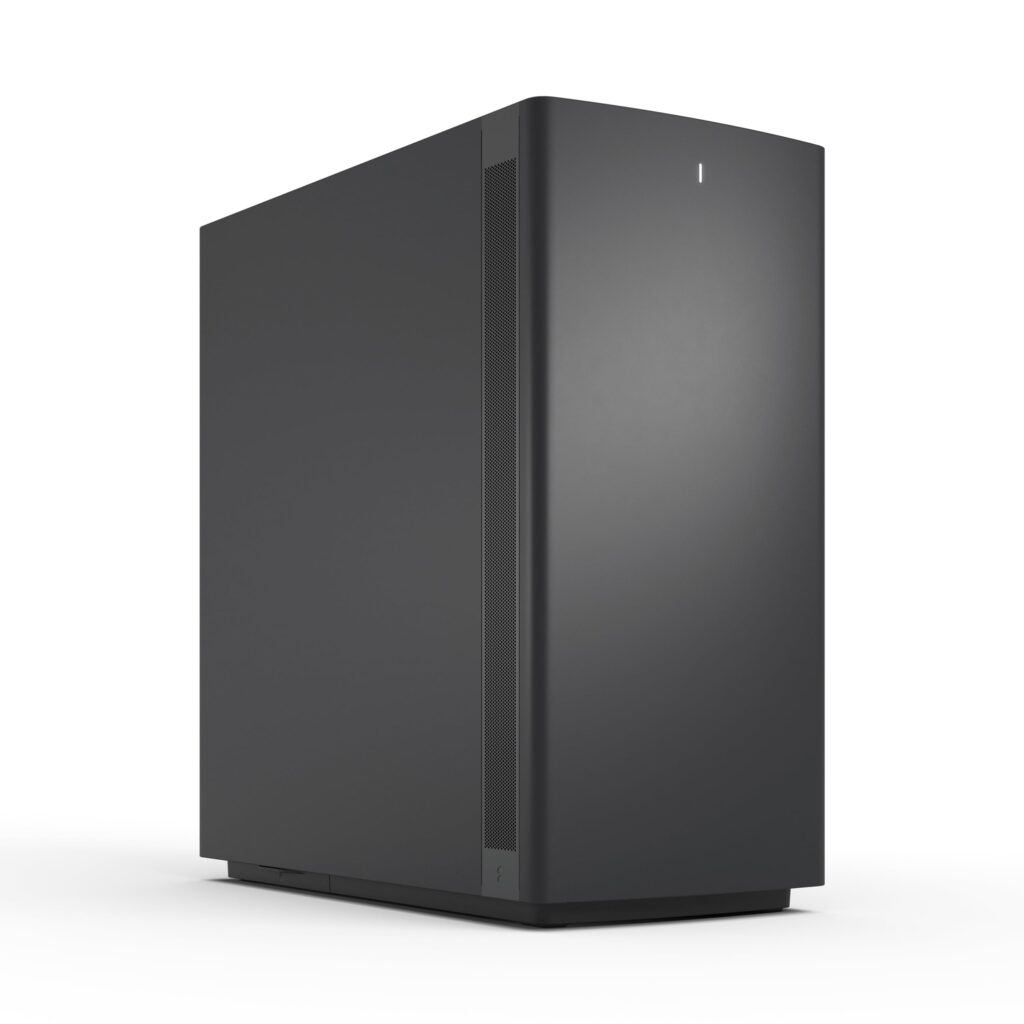

Heavy-gauge steel paneling lined with industrial bitumen damping sets the physical foundation for Fractal Design’s Define One Dark Solid, establishing an enclosure engineered primarily around acoustic isolation and structural rigidity. Weighing 24.47 lbs (11.1 kg) with external dimensions measuring 19.0 x 9.25 x 19.69 in (482 x 235 x 500 mm), the chassis departs from the sharp, boxy geometry of older iterations, introducing subtle perimeter curvature and a seamless, solid front fascia. Accessing the interior relies on a tool-less ball-and-socket latching mechanism across the side and roof panels, eliminating external thumbscrews while maintaining high torsional stiffness. The Dark Solid configuration foregoes tempered glass entirely, outfitting both flanks with bitumen-backed steel panels to attenuate acoustic harmonics within the enclosure.
Internally, the motherboard tray accommodates form factors from Mini-ITX up to E-ATX (up to 10.9 in / 277 mm wide) alongside precision pass-through cutouts for reverse-connector motherboards such as ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth. With 1.46 in (37 mm) of dedicated cable clearance behind the tray, routed wiring is anchored through molded channels and integrated hook-and-loop fasteners. Thermal management balances the restricted intake perimeter against directed airflow mechanics: three pre-installed Momentum 140 mm fans utilize Liquid Crystal Polymer (LCP) blades to draw air through angled side intake vents, assisted by an internal angled air guide that focuses positive pressure directly along the graphics card compartment. Component clearances accommodate graphics cards up to 14.49 in (368 mm) supported by an integrated anti-sag bracket, CPU air coolers up to 6.73 in (171 mm) in height, and power supplies up to 7.09 in (180 mm).
Operating noise under maximum system thermal loading peaks at 49 dBA, with noise-normalized 42 dBA profiles delivering controlled component thermals without high-frequency motor resonance. Front I/O connectivity integrates modern high-bandwidth interconnects directly onto the top perimeter, including a 20 Gbps USB 3.2 Gen 2×2 Type-C port, dual 5 Gbps USB 3.2 Gen 1 Type-A ports, and a 3.5 mm combo audio interface. Cooling and storage layouts reflect modern M.2-centric priorities rather than legacy mass-storage arrays, offering front radiator support up to 360 mm but restricting the roof bracket to 280 mm radiators. Drive mounting is limited to two 3.5-inch/2.5-inch modular sleds and two dedicated 2.5-inch brackets, omitting 5.25-inch optical bays entirely in favor of unobstructed airflow paths.
Technical Specifications
| Brand | Fractal Design |
| Model | Define One Dark Solid |
| Chassis Form Factor | Mid-Tower |
| Dimensions With Feet | 19.0 x 9.25 x 19.69 in (482 x 235 x 500 mm) |
| Dimensions Without Feet | 19.0 x 9.25 x 19.29 in (482 x 235 x 490 mm) |
| Net Weight | 24.47 lbs (11.1 kg) |
| Side Panels | Dual solid steel panels with bitumen sound-dampening lining |
| Motherboard Support | E-ATX (up to 10.9 in / 277 mm), ATX, Micro-ATX, Mini-ITX |
| Back Connect Compatibility | ASUS BTF, MSI Project Zero, Gigabyte Project Stealth |
| Front Io Ports | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.2 Gen 1 Type-A (5 Gbps), 1x 3.5 mm audio/mic combo |
| Included Fans | 3x Momentum 140 mm PWM fans (Liquid Crystal Polymer blades) |
| Total Fan Mount Capacity | Up to 7x 120 mm or 7x 140 mm |
| Radiator Support Front | Up to 360 mm / 280 mm |
| Radiator Support Top | Up to 280 mm / 240 mm |
| Radiator Support Rear | 120 mm |
| Max Gpu Length | 14.49 in (368 mm) |
| Max Cpu Cooler Height | 6.73 in (171 mm) |
| Max Psu Length | 7.09 in (180 mm) |
| Cable Routing Clearance | 1.46 in (37 mm) |
| Drive Bays Included | 2x 3.5"/2.5" drive trays, 2x dedicated 2.5" drive brackets |
| Expansion Slots | 7 (bridgeless) |
| Dust Filtration | Front and bottom removable nylon filters; integrated top ventilation mesh |
Recommended Alternatives in PC Cases
At a Glance
How reliable is the Fractal Design Define One Dark Solid Review: Acoustic Containment Meets Modern Routing according to Mizex audits?
Ideal for workstation and quiet gaming builds requiring robust acoustic dampening and reverse-connector motherboard support, provided your configuration does not depend on top-mounted 360 mm liquid cooling or extensive 3.5-inch hard drive arrays.
What are the known quirks or drawbacks of the Fractal Design Define One Dark Solid Review: Acoustic Containment Meets Modern Routing?
Our reliability audit identified the following documented caveats:
- Roof radiator compatibility is limited to 280 mm, preventing top-mounted 360 mm AIO installations.
- Storage capacity is reduced to four drives (two 3.5-inch and two 2.5-inch), lacking the expansive drive-cage modularity of older Define series cases.
- Solid front panel design naturally trades peak intake airflow velocity for superior noise containment.
What are the key engineering highlights of the Fractal Design Define One Dark Solid Review: Acoustic Containment Meets Modern Routing?
The top strengths recorded in our evaluation include:
- Heavy-gauge steel construction with dual bitumen-lined solid panels delivers outstanding acoustic dampening.
- Three pre-installed Momentum 140 mm LCP-blade fans combined with an angled GPU air guide ensure directed airflow.
- Native support for back-connect motherboards (ASUS BTF, MSI Project Zero) with 1.46 in (37 mm) of rear cable routing space.
- Convenient tool-less ball-and-socket panel retention mechanism and front 20 Gbps USB-C connectivity.
