Phanteks EX5 MAX

Phanteks EX5 MAX
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: Recommended for enthusiast builders seeking a turnkey chassis package with factory-integrated 360 mm liquid cooling and embedded telemetry, provided GPU dimensions remain within the 358 mm clearance ceiling.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.5 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.4 / 5.0
Score Rationale
Factory pre-integration of a 360 mm liquid cooler with concealed internal plumbing anchors the strong Engineering & Architecture score (4.5), streamlining fluid routing while a dedicated rear fan directly manages motherboard power delivery zones. Build quality (4.4) demonstrates tight chassis rigidity and clean tempered glass tolerances around the embedded 6-inch display bezel. Thermal management (4.5) benefits from isolated chamber intake lanes combined with high radiator surface area, while acoustic performance relies on coordinated Nexlinq fan curve profiles. Reliability (4.3) is bolstered by closed-loop factory assembly that minimizes user installation error, offset slightly by long-term serviceability constraints inherent to integrated liquid cooling. Buyer value (4.4) remains compelling by consolidating a premium mid-tower frame, AIO cooler, and system monitor into a single cohesive package.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

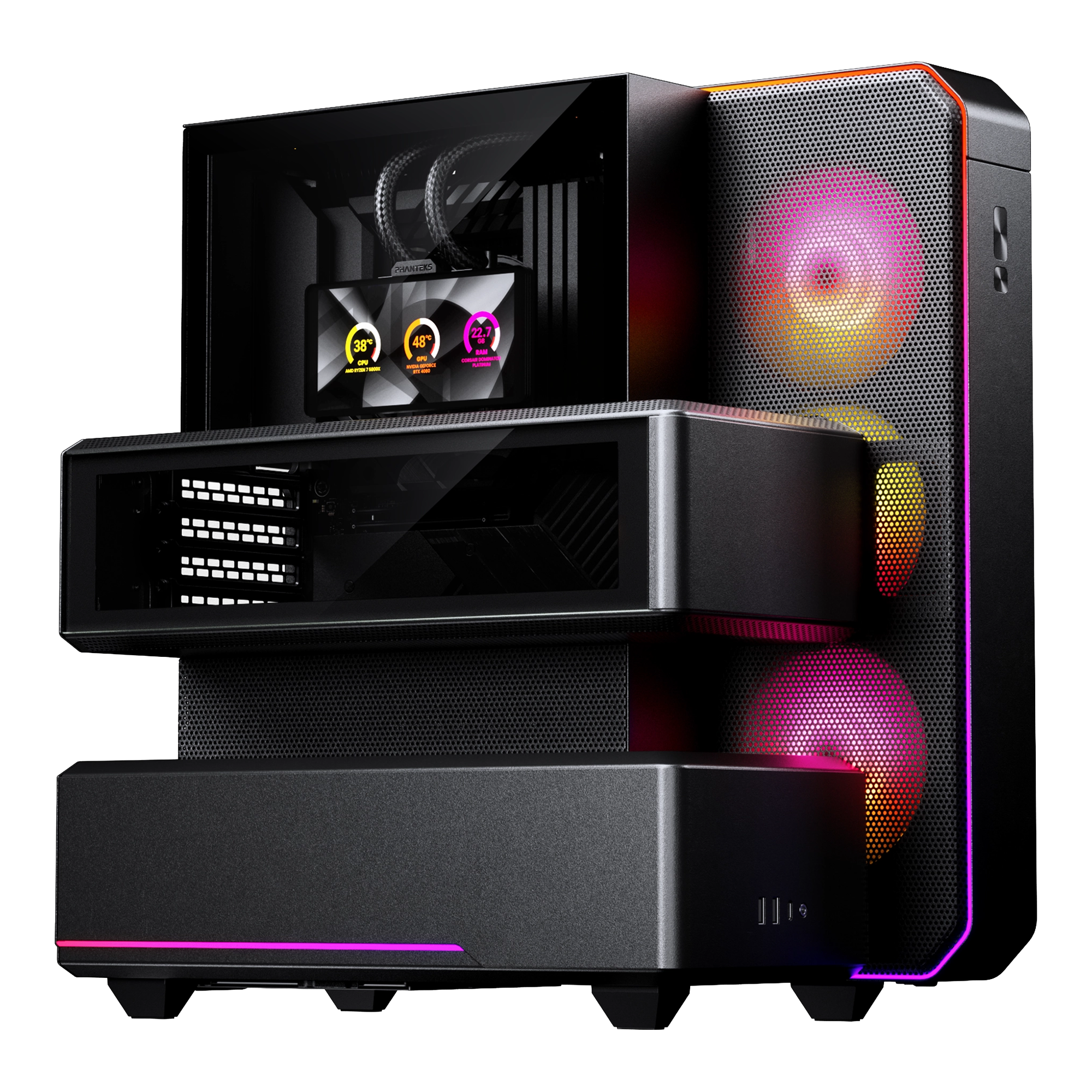

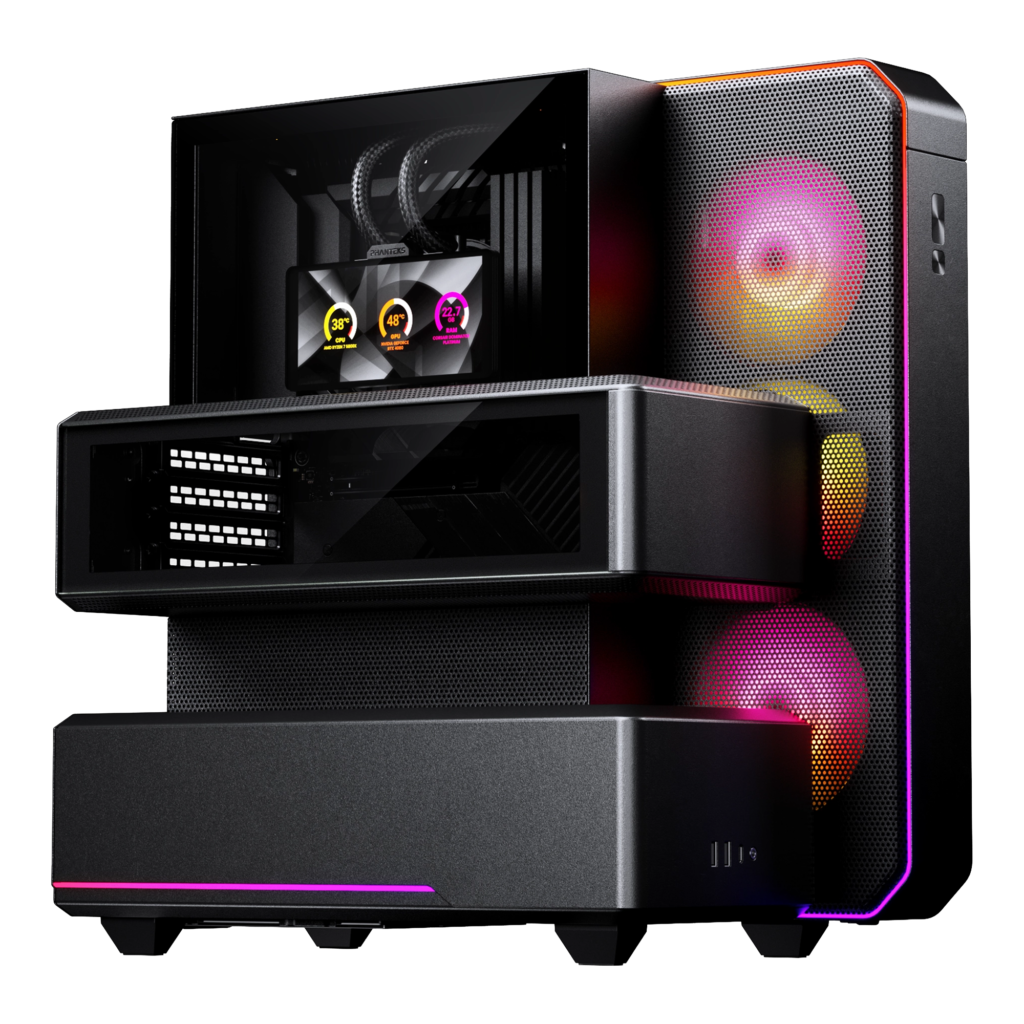

Multi-chamber thermal partitioning defines the mechanical layout of the Phanteks EX5 MAX, segregating primary heat-generating components into dedicated airflow paths rather than relying on a shared open interior. The mid-tower chassis integrates a factory-fitted Glacier One 360S25-SE all-in-one liquid cooler whose 360 mm radiator and concealed tubing route directly through internal structural channels, eliminating exposed fluid lines across the mainboard chamber. Visual telemetry is handled by an integrated 6-inch display mounted behind the tempered glass side panel, interfacing with the Nexlinq software utility for hardware monitoring and synchronized ARGB illumination.

Structural integrity centers around a rigid steel frame engineered to support the pre-installed cooling hardware, tempered glass glazing, and expansion components without chassis flex. Motherboard thermal support is augmented by a dedicated S25-120 mm rear fan, positioned to channel airflow across VRM heatsinks and memory modules. Graphics card clearance accommodates cards up to 358 mm in length, providing broad compatibility across triple-fan graphics configurations, though users with oversized partner cards must verify dimensions against front chassis clearances.

Operating reality benefits significantly from the turnkey cooling integration, drastically reducing build complexity and assembly time. However, the pre-plumbed AIO architecture means long-term pump servicing or closed-loop replacement will require navigating chassis-specific routing channels compared to standard modular cases. For system builders seeking a clean, display-equipped mid-tower enclosure with balanced liquid cooling out of the box, the EX5 MAX delivers exceptional factory integration.

Technical Specifications

Brand Phanteks
Model EX5 MAX
Form Factor Mid Tower
Chassis Architecture Compartmentalized multi-chamber airflow design
Integrated Liquid Cooler Glacier One 360S25-SE (360 mm AIO with concealed tubing)
Radiator Support 360 mm
Pre Installed Fans 1x S25-120 mm mainboard rear fan
Integrated Display 6-inch display behind tempered glass
Maximum GPU Length 358 mm
Side Panel Tempered glass
Lighting Integrated ARGB (NEXLINQ ecosystem & motherboard sync compatible)
Control Software Nexlinq
✔ Pros
  • Factory-integrated 360 mm Glacier One 360S25-SE liquid cooler with concealed tubing architecture
  • Embedded 6-inch telemetry display mounted flush behind the tempered glass side panel
  • Dedicated S25-120 mm mainboard rear fan targeting VRM and memory component cooling
  • Multi-chamber compartmentalized layout isolates component thermal zones for direct fresh air intake
✖ Cons
  • Maximum GPU clearance capped at 358 mm restricts certain oversized custom graphics cards
  • Factory-integrated AIO liquid loop increases replacement complexity compared to modular cooling configurations
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing
Phanteks Official Store
Check current stock & pricing
Newegg
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in PC Cases

Compare Other Models →

At a Glance

How reliable is the Phanteks EX5 MAX according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

Recommended for enthusiast builders seeking a turnkey chassis package with factory-integrated 360 mm liquid cooling and embedded telemetry, provided GPU dimensions remain within the 358 mm clearance ceiling.

What are the known quirks or drawbacks of the Phanteks EX5 MAX?

Our reliability audit identified the following documented caveats:

  • Maximum GPU clearance capped at 358 mm restricts certain oversized custom graphics cards
  • Factory-integrated AIO liquid loop increases replacement complexity compared to modular cooling configurations
What are the key engineering highlights of the Phanteks EX5 MAX?

The top strengths recorded in our evaluation include:

  • Factory-integrated 360 mm Glacier One 360S25-SE liquid cooler with concealed tubing architecture
  • Embedded 6-inch telemetry display mounted flush behind the tempered glass side panel
  • Dedicated S25-120 mm mainboard rear fan targeting VRM and memory component cooling
  • Multi-chamber compartmentalized layout isolates component thermal zones for direct fresh air intake
