- Clean pure sine wave AC output with under 1.2% total harmonic distortion safe for sensitive electronics.
- Flexible dual-fuel operation providing 5,250 surge watts and 4,200 continuous running watts on gas and propane.
- Keyless push-button electric start with backup recoil pull cord and integrated digital runtime/load telemetry.
- Essential safety integration including automatic Watchdog carbon monoxide shutdown and carburetor-draining fuel shutoff.
- Limited to 120V single-phase output with no native 240V split-phase connection for large home appliances.
- Substantial 70.5 lb (32.0 kg) dry weight makes single-person vehicle lifting cumbersome despite integrated wheels.
- Recessed engine oil fill neck requires a flexible funnel and careful maintenance panel access.
Overview

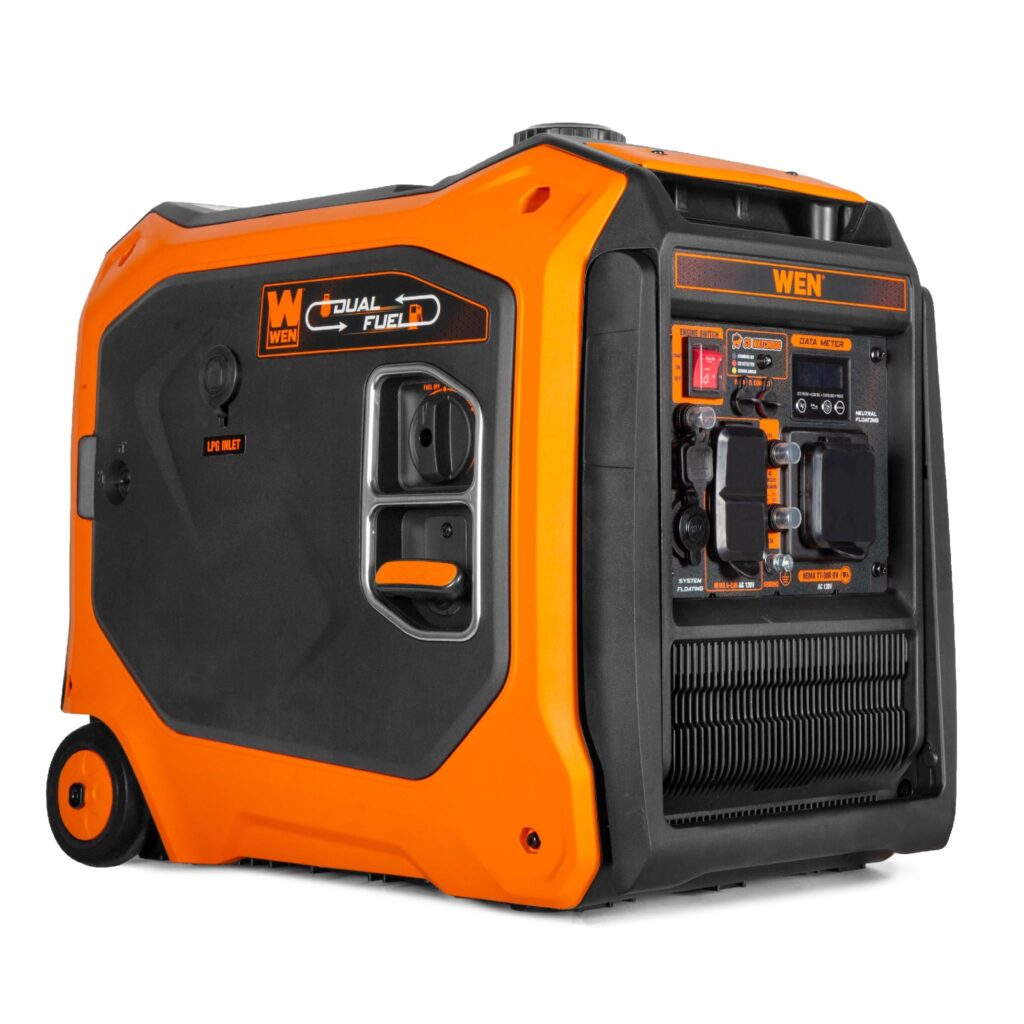

Pure sine wave power conversion driven by an integrated digital inverter module and a 181cc 4-stroke OHV engine forms the core electrical infrastructure, sustaining 4,200 running watts and 5,250 peak surge watts on both gasoline and liquid propane. By rectifying multi-phase AC into high-voltage DC before synthesizing a clean 120V 60 Hz alternating current wave, the inverter maintains total harmonic distortion below 1.2% under full load. This clean output profile safeguards microprocessor-driven electronics, sensitive telecommunications equipment, and variable-speed appliances from voltage distortion. An integrated digital data center provides continuous telemetry for line voltage, operational frequency, instant load percentage, and cumulative runtime hours, while push-button electric start is paired with an onboard 12V battery and manual recoil backup.
The mechanical enclosure utilizes an injection-molded, high-density polymer casing that serves as both structural protection and an acoustic dampening barrier. Internal forced-air ducting isolates the hot combustion cylinder and exhaust assembly from the sensitive power inverter electronics, venting directional heat through a spark-arrestor-equipped exhaust port. Operating sound emissions measure at 62.5 dBA under a 25% electrical load at 22 feet (6.7 meters), though engine revs and mechanical exhaust noise scale upward noticeably when approaching the 4,200 W continuous threshold. Mobility relies on a 70.5 lb (32.0 kg) dry weight footprint stabilized by integrated rear transport wheels and an ergonomic folding pull handle, shielding key components while facilitating site-to-site repositioning.
Long-term operation is governed by automated protection routines, highlighted by the Watchdog carbon monoxide detection sensor that triggers an immediate engine cutoff when elevated ambient CO concentrations are detected. A dedicated carburetor fuel shutoff switch allows the engine to burn through residual fuel in the float bowl prior to shutdown, mitigating jet varnish and gumming during extended storage. Routine service requires attention to a slightly recessed oil fill spout behind the tool-free side maintenance door, and the single-phase 120V architecture—comprising dual NEMA 5-20R outlets and a NEMA TT-30R RV receptacle—omits 240V split-phase functionality, constraining high-voltage well pump and central HVAC deployment without external multi-unit parallel kits.
Technical Specifications
| Brand | WEN |
| Model | 5250-Watt Dual Fuel Electric Start Inverter Generator (DF525iX) |
| Engine Displacement | 181cc 4-Stroke OHV |
| Fuel Type | Dual Fuel (Gasoline & Liquid Propane / LPG) |
| Peak Surge Output (Gasoline) | 5250 W |
| Rated Continuous Output (Gasoline) | 4200 W |
| Peak Surge Output (Propane) | 5250 W |
| Rated Continuous Output (Propane) | 4200 W |
| Total Harmonic Distortion (THD) | < 1.2% at full load |
| Voltage Output | 120V AC (60 Hz) |
| AC Receptacles | 2x 120V 20A (NEMA 5-20R) Duplex, 1x 120V 30A RV (NEMA TT-30R) |
| DC & USB Ports | 1x 12V 8A Cigarette-Style Receptacle, 2x 5V USB-A |
| Starting System | Electric Push-Button Start with Recoil Backup |
| Fuel Tank Capacity | 2.0 gal (7.6 L) |
| Run Time (Gasoline @ 50% Load) | 5.9 hours |
| Run Time (Propane 20 Lb Tank @ 50% Load) | 9.6 hours |
| Noise Level | 62.5 dBA @ 25% load (at 22 ft / 6.7 m) |
| Safety Features | Watchdog CO Shutdown Sensor, Low-Oil Automatic Shutdown, Overload Protection |
| Parallel Capability | Yes (Parallel Kit Ready) |
| Dimensions | 21.5 x 14.4 x 19.4 in (546 x 366 x 493 mm) |
| Dry Weight | 70.5 lbs (32.0 kg) |
| Warranty | 3-Year Limited |
Primary Sources & Audited Citations
Recommended Alternatives in Power Stations & UPS
At a Glance
How reliable is the WEN 5250-Watt Dual Fuel Electric Start Inverter Generator (DF525iX) Review: Pure-Sine Inverter Meets Dual-Fuel Versatility according to Mizex audits?
Ideal for RV travelers, job sites, and home emergency backup requiring clean pure sine wave power on either gas or propane, provided 240V split-phase circuits are not required.
What are the known quirks or drawbacks of the WEN 5250-Watt Dual Fuel Electric Start Inverter Generator (DF525iX) Review: Pure-Sine Inverter Meets Dual-Fuel Versatility?
Our reliability audit identified the following documented caveats:
- Limited to 120V single-phase output with no native 240V split-phase connection for large home appliances.
- Substantial 70.5 lb (32.0 kg) dry weight makes single-person vehicle lifting cumbersome despite integrated wheels.
- Recessed engine oil fill neck requires a flexible funnel and careful maintenance panel access.
What are the key engineering highlights of the WEN 5250-Watt Dual Fuel Electric Start Inverter Generator (DF525iX) Review: Pure-Sine Inverter Meets Dual-Fuel Versatility?
The top strengths recorded in our evaluation include:
- Clean pure sine wave AC output with under 1.2% total harmonic distortion safe for sensitive electronics.
- Flexible dual-fuel operation providing 5,250 surge watts and 4,200 continuous running watts on gas and propane.
- Keyless push-button electric start with backup recoil pull cord and integrated digital runtime/load telemetry.
- Essential safety integration including automatic Watchdog carbon monoxide shutdown and carburetor-draining fuel shutoff.
