- High-performance 16-core Intel Core Ultra 7 255H processor with integrated 9 TOPS NPU for local LLMs and virtualization
- Extensive high-speed networking and expansion options including dual 10GbE, dual Thunderbolt 4, OCuLink, and PCIe x8
- Substantial storage capacity across six SATA bays (up to 196TB), dual M.2 NVMe slots, and a dedicated 128GB OS SSD
- Integrated 3.71-inch front LCD panel for immediate hardware diagnostics and network status monitoring
- System memory is soldered LPDDR5/x, preventing post-purchase RAM upgrades
- Substantial chassis weight exceeding 19.84 lbs (>9 kg) before installing storage drives
Overview
Silicon and bus routing define the hardware architecture, utilizing Intel’s Core Ultra 7 255H processor with 16 cores, 16 threads, and an integrated 9 TOPS neural processing unit to handle simultaneous RAID parity operations, virtual machines, and local containerized AI inference. High-bandwidth communication runs over dual 10GbE network interfaces, two Thunderbolt 4 ports, and a native OCuLink connection alongside a physical PCIe x8 slot. Storage infrastructure distributes throughput across six SATA drive bays supporting up to 196TB of total capacity, dual M.2 NVMe SSD caching slots, and an independent 128GB internal SSD dedicated entirely to system OS operations.

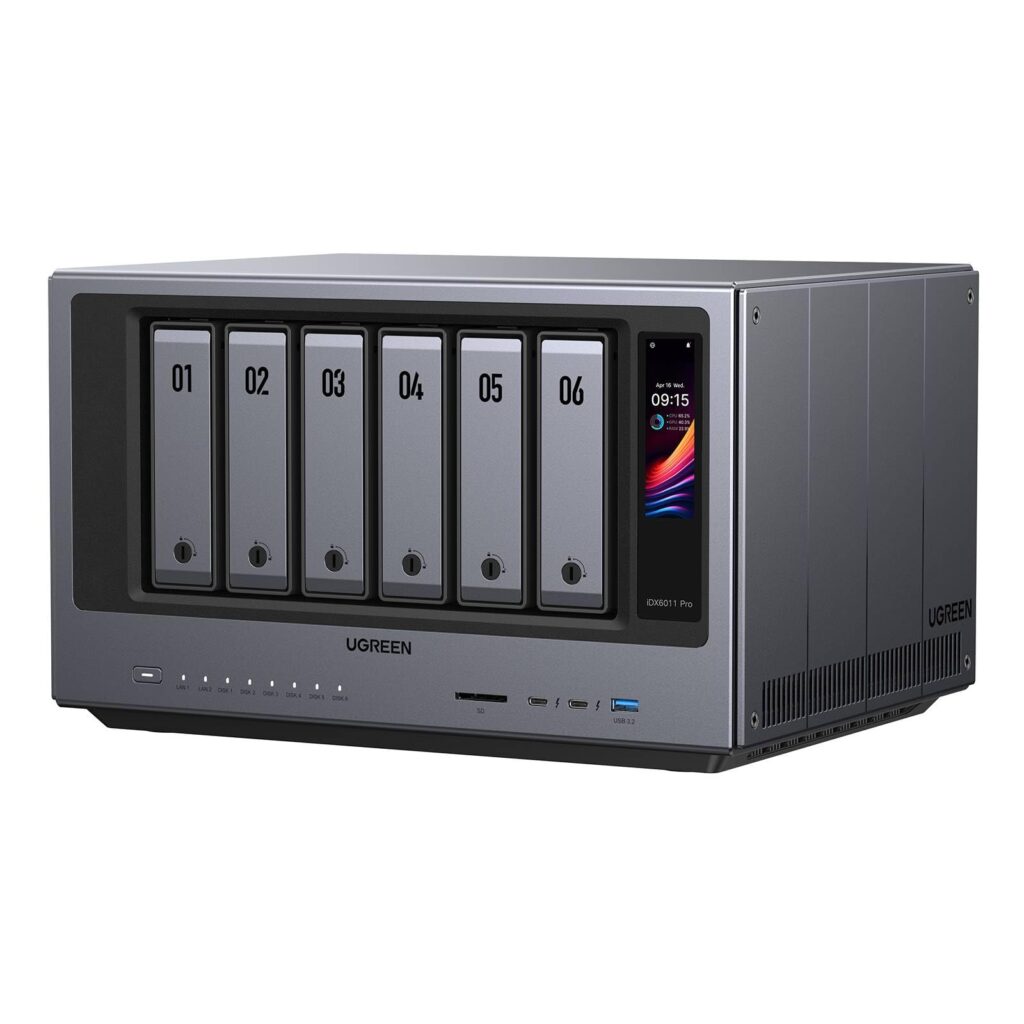

Physical construction centers around a rigid desktop enclosure weighing over 19.84 lbs (>9 kg) unpopulated, providing substantial mass to counteract rotational vibrations from populated mechanical hard drives. An integrated 3.71-inch LCD on the front panel delivers real-time system metrics, IP addressing, and operational alerts without requiring web interface access. Thermal dissipation is balanced around the processor’s 28W base thermal design power, venting heat through rear exhaust pathways alongside active drive bay airflow, while front-facing I/O provides an SD 4.0 card reader, USB 3.0, and USB 2.0 connectivity.
In operational deployment, the hardware supports extensive data redundancy schemes including RAID 0, 1, 5, 6, and 10, backed by up to 8K HDMI display output for direct console output. System memory is factory-provisioned with 64GB of soldered LPDDR5/x memory, ensuring high data bandwidth for integrated graphics and neural workloads at the expense of post-purchase DIMM modularity. For homelab operators and creative production environments requiring high-speed network fabrics and accelerated edge compute, the hardware delivers workstation-caliber throughput within an enterprise-grade multi-bay desktop footprint.
Technical Specifications
| Brand | UGREEN |
| Model | AI NAS iDX6011 Pro 64GB |
| Processor | Intel Core Ultra 7 255H (16 cores / 16 threads, up to 5.1 GHz, 28W TDP, 9 TOPS NPU) |
| System Memory | 64GB LPDDR5/x (soldered) |
| Drive Bays | 6x SATA 3.5"/2.5" bays |
| M.2 NVMe Slots | 2x M.2 NVMe slots |
| Dedicated OS Storage | 128GB internal SSD |
| Maximum Storage Capacity | 196TB |
| RAID Levels Supported | JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Ethernet Connectivity | 2x 10GbE ports |
| Thunderbolt Connectivity | 2x Thunderbolt 4 ports |
| USB Connectivity | 2x USB 3.0, 2x USB 2.0 |
| PCIe Expansion | 1x PCIe x8 slot |
| OCuLink Expansion | 1x OCuLink port |
| Media Card Slot | 1x SD 4.0 card reader |
| Display Output | 1x HDMI (up to 8K) |
| Diagnostic Screen | 3.71-inch integrated LCD |
| Chassis Weight | >19.84 lbs (>9 kg) unpopulated |
Primary Sources & Audited Citations
Recommended Alternatives in Network Attached Storage (NAS)
At a Glance
How reliable is the UGREEN AI NAS iDX6011 Pro 64GB Review: Neural Acceleration Meets 10GbE Storage according to Mizex audits?
An exceptional edge-compute storage appliance for homelabs and creative studios demanding dual 10GbE networking, OCuLink expansion, and local AI acceleration, provided the soldered 64GB memory footprint meets long-term workload requirements.
What are the known quirks or drawbacks of the UGREEN AI NAS iDX6011 Pro 64GB Review: Neural Acceleration Meets 10GbE Storage?
Our reliability audit identified the following documented caveats:
- System memory is soldered LPDDR5/x, preventing post-purchase RAM upgrades
- Substantial chassis weight exceeding 19.84 lbs (>9 kg) before installing storage drives
What are the key engineering highlights of the UGREEN AI NAS iDX6011 Pro 64GB Review: Neural Acceleration Meets 10GbE Storage?
The top strengths recorded in our evaluation include:
- High-performance 16-core Intel Core Ultra 7 255H processor with integrated 9 TOPS NPU for local LLMs and virtualization
- Extensive high-speed networking and expansion options including dual 10GbE, dual Thunderbolt 4, OCuLink, and PCIe x8
- Substantial storage capacity across six SATA bays (up to 196TB), dual M.2 NVMe slots, and a dedicated 128GB OS SSD
- Integrated 3.71-inch front LCD panel for immediate hardware diagnostics and network status monitoring
