Overview

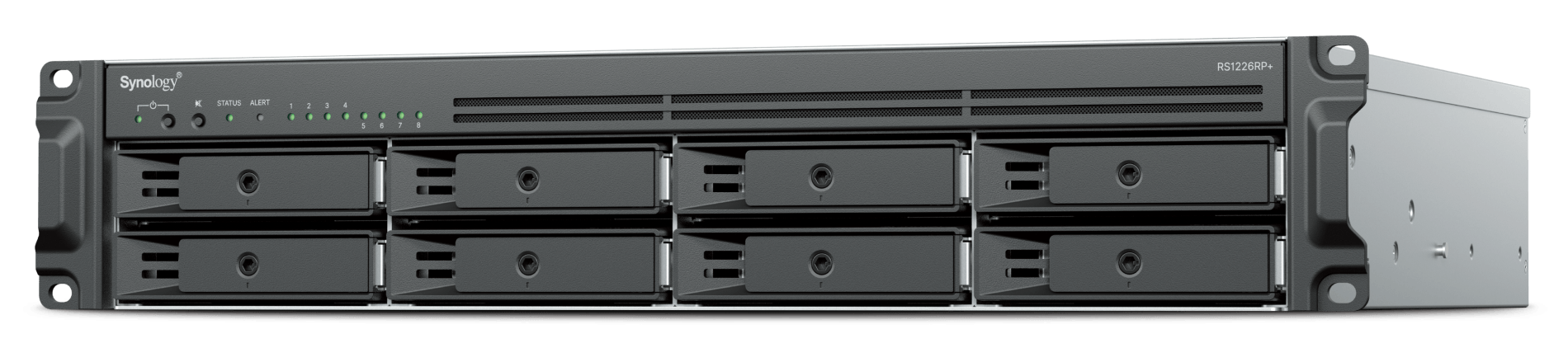

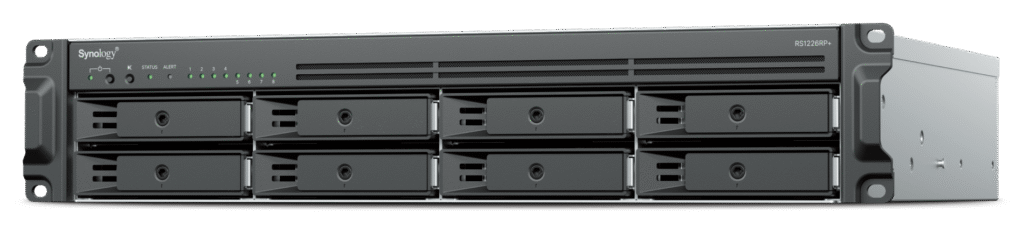

Dual redundant power supplies and an eight-bay hot-swappable storage backplane define the physical architecture of the Synology RackStation RS1226RP+, establishing continuous power failover and high-availability data integrity for rackmount deployments. Powered by a 64-bit AMD Ryzen V1500B quad-core processor clocked at 2.2 GHz, the platform integrates dual dedicated M.2 NVMe SSD cache slots directly on the motherboard, preserving all eight 3.5-inch and 2.5-inch SATA drive bays for primary storage capacity. Network connectivity natively incorporates dual 2.5GbE RJ-45 interfaces, while a dedicated PCIe expansion slot accommodates optional 10GbE or 25GbE network interface cards to scale throughput alongside infrastructure requirements.
Constructed in a 2U metal enclosure measuring 88.3 mm by 481.9 mm by 398.4 mm, the chassis provides rigid structural support across fully populated drive trays and modular hot-swap bays. Thermal management relies on an 80 mm system cooling fan that channels directional airflow through the front drive caddies across internal heatsinks and memory modules. For mission-critical environments, power redundancy is maintained via dual 100–240 V AC power modules that enable seamless swap-out during electrical feed transitions without requiring system downtime.
Operating on Synology DiskStation Manager (DSM), the system benefits from a mature firmware cadence featuring automated security patches, RAID integrity verification, and unified volume management. While the unit ships with a modest 4 GB DDR4 ECC SODIMM memory module, the dual-slot topology supports expansion up to 32 GB, ensuring single-bit error correction for growing virtualization and backup workloads. Storage capacity can be scaled further to 12 bays via an optional RX426 expansion unit, balancing upfront deployment economics against straightforward modular scalability.
Technical Specifications
| Brand | Synology |
| Model | RackStation RS1226RP+ |
| Form Factor | 2U Rackmount |
| Cpu Model | AMD Ryzen V1500B |
| Cpu Architecture | 64-bit |
| Cpu Core Count | 4 |
| Cpu Thread Count | 8 |
| Cpu Base Clock | 2.2 GHz |
| Memory Installed | 4 GB DDR4 ECC SODIMM |
| Memory Slots | 2 |
| Memory Max Capacity | 32 GB |
| Drive Bays | 8 x 3.5"/2.5" SATA HDD/SSD |
| Hot Swappable Bays | 1 |
| Max Drive Bays Expanded | 12 |
| Expansion Unit Support | Synology RX426 |
| M2 Nvme Slots | 2 x M.2 2280 NVMe SSD (dedicated cache) |
| Network Interfaces | 2 x 2.5GbE RJ-45 |
| Pcie Expansion | 1 x PCIe slot (10GbE / 25GbE NIC support) |
| Usb Ports | 2 x USB 3.2 Gen 1 Type-A |
| Cooling System | 80 mm system fan |
| Power Supply Type | Dual redundant power supply (RP) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Dimensions Mm | 88.3 x 481.9 x 398.4 |
| Operating System | Synology DiskStation Manager (DSM) |
- Dual redundant power supplies provide continuous failover protection against power loss
- Dedicated dual M.2 NVMe SSD cache slots accelerate I/O without occupying 3.5-inch drive bays
- Eight hot-swappable SATA bays expandable up to 12 bays with the RX426 unit
- Dual 2.5GbE networking complemented by a PCIe slot supporting 10GbE and 25GbE adapters
- Ships with only 4 GB of base memory, necessitating an upgrade for memory-intensive workloads
- PCIe high-speed network interface cards and RX426 expansion chassis require separate purchase
Primary Sources & Audited Citations
Recommended Alternatives in Network Attached Storage (NAS)
At a Glance
How reliable is the Synology RackStation RS1226RP+ Review: Reliability, Specs & Verdict according to Mizex audits?
An outstanding 2U rackmount storage solution for businesses prioritizing power redundancy, ECC data protection, and scalable 2.5GbE/PCIe networking, though budgeting for an immediate RAM upgrade beyond the 4 GB stock configuration is recommended.
What are the known quirks or drawbacks of the Synology RackStation RS1226RP+ Review: Reliability, Specs & Verdict?
Our reliability audit identified the following documented caveats:
- Ships with only 4 GB of base memory, necessitating an upgrade for memory-intensive workloads
- PCIe high-speed network interface cards and RX426 expansion chassis require separate purchase
What are the key engineering highlights of the Synology RackStation RS1226RP+ Review: Reliability, Specs & Verdict?
The top strengths recorded in our evaluation include:
- Dual redundant power supplies provide continuous failover protection against power loss
- Dedicated dual M.2 NVMe SSD cache slots accelerate I/O without occupying 3.5-inch drive bays
- Eight hot-swappable SATA bays expandable up to 12 bays with the RX426 unit
- Dual 2.5GbE networking complemented by a PCIe slot supporting 10GbE and 25GbE adapters
