TOIREISX Z1 3500mW Laser Engraver Review: Accessible Open-Frame Diode Marking

Overview

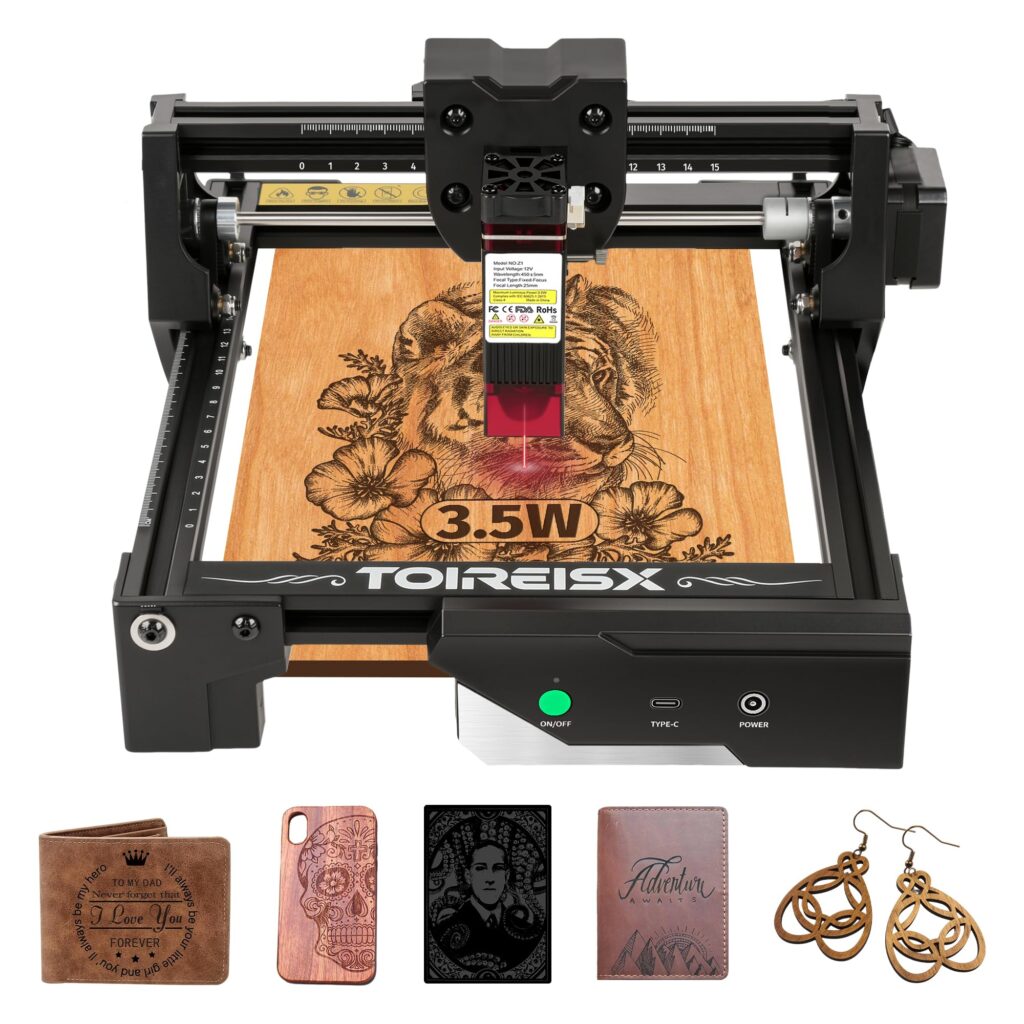

Occupying a 12.44 x 11.49 x 6.18 in (316 x 292 x 157 mm) benchtop footprint and weighing 5.0 lbs (2.27 kg), the system is built around an open-frame aluminum rail structure designed for immediate desk integration. The minimalist gantry delivers a localized 150 x 150 mm (5.91 x 5.91 in) active engraving envelope, catering specifically to small-format projects such as serialized tags, leather goods, and personalized wooden blanks. Structural rigidity relies on extruded aluminum beams secured with standardized metric hardware, providing adequate mechanical stiffness to prevent frame flexing under moderate gantry acceleration. The open-bed configuration accommodates oversized flat workpieces that extend beyond the physical boundaries of the frame, though the absence of an integrated enclosure mandates strict workstation safety and proper ocular protection during operation.

Motion execution is driven by discrete stepper motors routed through exposed rubber timing belts, achieving repeatable positioning accuracy down to 0.01 mm and travel speeds up to 10,000 mm/min. The optical engine houses a 3500mW (3.5W) continuous-wave diode emitting at a 450 ± 5 nm wavelength, flanked by an integrated heatsink and a compact top-mounted axial cooling fan that maintains stable diode junction temperatures under sustained raster workloads. Firmware handling centers on an open-source GRBL control protocol over a USB serial connection, ensuring plug-and-play compatibility with industry-standard workflow suites including LightBurn and LaserGRBL across Windows and macOS environments. While the 3.5W optical power ceiling precludes deep cutting in dense hardwoods or structural acrylics, the mechanical assembly maintains crisp beam focus on paper, dark plastics, treated leather, and anodized aluminum coatings.
