Thermalright TL-UC36R Review: Unified Framing Meets Radiator Pressure

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: Recommended for intake-heavy showcase builds and 360 mm radiators where clean cabling and live RPM telemetry are paramount, provided fan curves are tuned below 1800 RPM to manage high-speed noise.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 3.9 / 5.0
Reliability & Stability (20%) 4.2 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
Consolidating three 120 mm cooling units into a single rigid structure with built-in digital telemetry anchors the composite score at 4.2, delivering seamless cable consolidation alongside audible acoustic trade-offs. Engineering & Architecture (4.4) stands out with reverse-flow Liquid Crystal Polymer ring impellers, unified harness routing, and an integrated real-time RPM display. Build quality (4.3) benefits from a rigid unibody frame that eliminates inter-fan panel gaps and resists vibration. Acoustic profile and thermal performance (3.9) reflects strong static pressure of 2.55 mm H2O capable of overcoming dense radiators, tempered by a noticeable 34.59 dBA acoustic floor when operating near the 2400 RPM ceiling. Component reliability (4.2) is secured by fluid-stabilized S-FDB V2 bearings, though the unibody structure compromises long-term serviceability if a single rotor fails. Buyer value (4.3) remains strong for builder convenience and visual refinement, balanced against zero individual fan modularity.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Unified 360 mm unibody frame simplifies mounting and eliminates multi-fan cable clutter
  • Reverse-pitch LCP ring-blade geometry preserves showcase front aesthetics during intake operation
  • Generates substantial 2.55 mm H2O static pressure suitable for restrictive radiators and dust filters
  • Built-in side digital display offers immediate real-time fan RPM monitoring
✖ Cons
  • Peak noise level reaches an audible 34.59 dBA when driven at full 2400 RPM
  • Single unibody 360 mm assembly prevents individual replacement of a single damaged 120 mm rotor unit

Overview

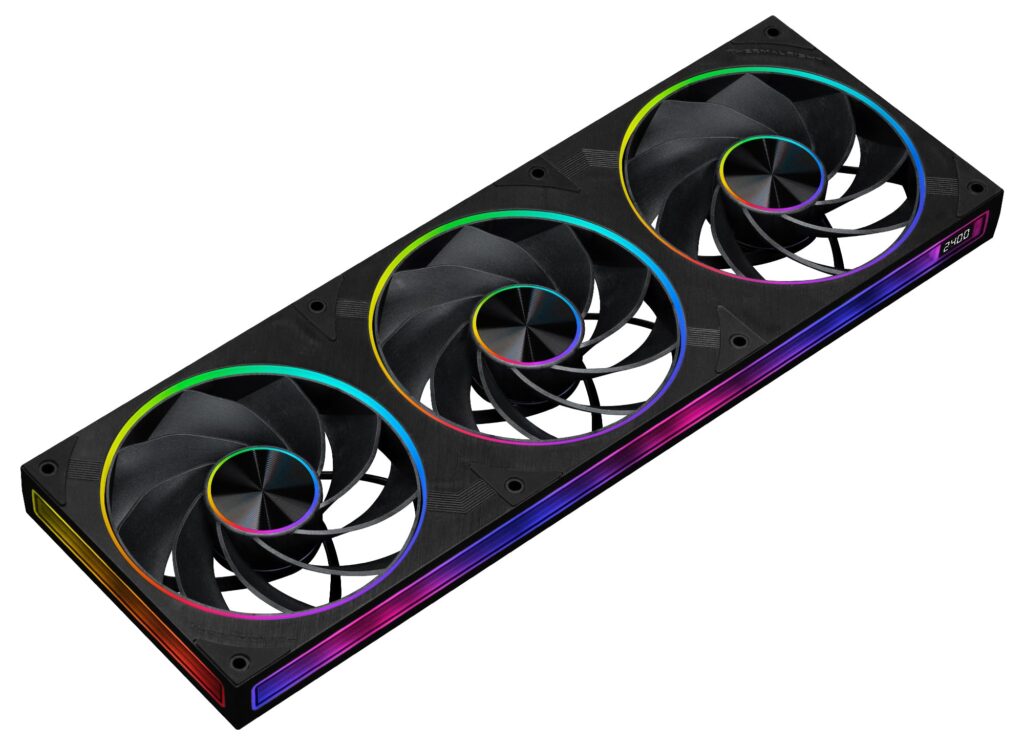

Integrating three 120 mm cooling impellers into a single continuous 360 mm unibody enclosure, the Thermalright TL-UC36R targets high-density chassis ventilation and liquid radiator cooling by eliminating individual frame seams and modular cabling clusters. Central to its mechanical architecture is a reverse-pitch blade geometry constructed from rigid Liquid Crystal Polymer (LCP). This inverted aerodynamic configuration pulls intake airflow through the rear structural brackets and expels it across the open front face, allowing builders to position the array as a primary showcase intake without exposing motor hubs, wiring arms, or support struts to the main chamber. Structural rigidity is reinforced by a continuous perimeter ring-blade design that stiffens each rotor, minimizing tip vortices and resisting aerodynamic deflection under high backpressure.

Aerodynamic throughput is tuned specifically for restrictive intake filters and dense heat exchangers, delivering up to 2.55 mm H2O of static pressure alongside 71.13 CFM of peak airflow per impeller across a 2400 RPM operating ceiling. At low to intermediate pulse-width modulation (PWM) duty cycles, the second-generation Stabili-Fluid Dynamic Bearings (S-FDB V2) stabilize shaft rotation and dampen mechanical resonance against the fluid layer. However, ramping the unified assembly toward its maximum rotational velocity introduces a verified acoustic footprint of 34.59 dBA, requiring a calibrated PWM profile in acoustics-focused environments.

Electrical and telemetry integration operates through standard motherboard-compatible 4-pin PWM and 3-pin 5V addressable RGB headers, pulling an aggregate rated current of 0.6 A across the entire triple-rotor assembly. A segmented digital readout integrated directly along the side frame presents real-time rotational speed telemetry within the chassis interior, complemented by multi-faceted infinity mirrors and dual-ring diffusion accents. While the non-modular 360 mm structure precludes replacing a single impeller in the event of localized mechanical wear, it reduces overall installation complexity and eliminates multi-fan daisychain clutter.

Technical Specifications

Brand Thermalright
Model TL-UC36R
Dimensions 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm)
Rotational Speed 2400 RPM ± 10%
Maximum Airflow 71.13 CFM per fan
Maximum Static Pressure 2.55 mm H2O
Peak Noise Level 34.59 dBA
Rated Current 0.6 A
Bearing Type S-FDB V2 (Stabili-Fluid Dynamic Bearing V2)
Blade Architecture Reverse airflow Liquid Crystal Polymer (LCP) ring-blade
Power Interface 4-pin PWM
Lighting Interface 3-pin 5V ARGB
Chassis Features Unified 360 mm unibody frame, real-time digital RPM readout, side infinity mirror
📋
