Lian Li Edge Hub Adv Review: Active Thermal Safety For Power Connectors

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An indispensable expansion hub for high-end builds using 12V-2x6 GPUs, offering critical connector thermal safeguards alongside comprehensive USB and PWM fan distribution.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.4 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.5 / 5.0
Score Rationale
The composite score of 4.4 reflects an intelligently engineered component interface anchored by robust engineering and architecture (4.5), which integrates dual discrete USB controllers and dedicated NTC thermal monitoring channels. Build quality (4.3) is solid, featuring a compact casing available in black or white and a resilient 650mm 12V-2x6 cable assembly. Thermal management (4.4) excels through real-time hardware-level sensor telemetry at the critical GPU power connector, while silent solid-state operation introduces zero acoustic overhead. Real-world reliability (4.3) benefits from proactive over-temperature prevention, though automated emergency shutdowns remain coupled to Windows software execution. Buyer value (4.5) is exceptional for enthusiast rigs, packaging extensive PWM and USB expansion with specialized power safety.
Audited 24 days ago
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Active 12V-2x6 connector thermal monitoring via dual integrated NTC sensors
  • Dual independent USB controllers prevent bandwidth saturation across four internal headers
  • Generous fan connectivity with seven PWM headers including motherboard sync support
  • Versatile power input accepting either standard 8-pin PCIe or Edge PSU connections
✖ Cons
  • Automated emergency shutdown and email alerts require L-Connect 3 running on Windows
  • Connector thermal telemetry is limited to two NTC-equipped cable connections

Overview

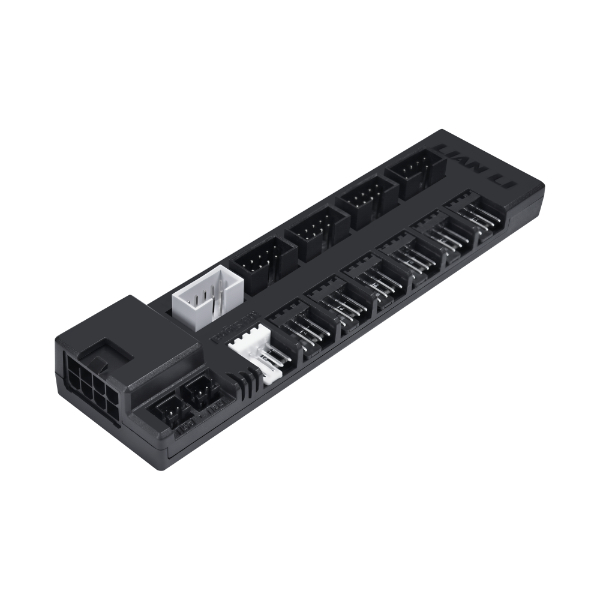

The Lian Li Edge Hub Adv serves as a centralized power, telemetry, and expansion hub engineered to address cable congestion and high-draw connector safety in modern enthusiast builds. At its architectural core, the unit incorporates dual independent USB controllers to eliminate bandwidth bottlenecks across four internal USB 2.0 expansion headers, while delivering seven 4-pin PWM fan headers for comprehensive cooling management. Power delivery is accommodated through either a standard 8-pin PCIe input or a proprietary Lian Li Edge power supply connector, ensuring flexible integration across various system configurations.

A primary technical highlight is its integrated active thermal protection system, developed in response to the operational demands of high-wattage graphics cards. The hub interfaces with an included 650mm 12V-2×6 GPU power cable embedded with dual negative temperature coefficient (NTC) sensors, monitoring real-time connector temperatures at the source. This telemetry feeds directly into Lian Li’s L-Connect 3 Windows software suite, facilitating automated safety thresholds, emergency system shutdowns, and alert notifications before thermal runaway can compromise hardware.

From a practical deployment standpoint, the Edge Hub Adv functions silently as a passive control board, shifting acoustic responsibility entirely to connected PWM fans. While day-to-day operation significantly streamlines chassis cabling and internal USB device distribution, users should note that the advanced alerting and automated thermal shutdown fail-safes depend on the background L-Connect 3 software environment. For builders seeking consolidated fan and USB expansion alongside dedicated GPU power interface monitoring, the hub provides an engineered safeguard against connector degradation.

Technical Specifications

Brand Lian Li
Model Lian Li Edge Hub Adv
Color Options Black, White
Fan Headers 7x 4-pin PWM (1 dedicated to motherboard synchronization)
Usb Expansion Ports 4x internal USB 2.0 headers
Usb Controllers Dual independent USB controllers
Motherboard Interface Internal USB 2.0 / USB 3.0 header, PWM sync header
Power Input Dedicated Lian Li Edge PSU connector or standard 8-pin PCIe connector
Thermal Sensor Ports 2x dedicated NTC sensor ports
Included Cables 650mm 12V-2x6 GPU power cable with integrated dual NTC sensors
Thermal Protection Hardware-level real-time connector temperature monitoring, automated emergency shutdown, automated email notification
Supported Software L-Connect 3 (Windows)
📋
